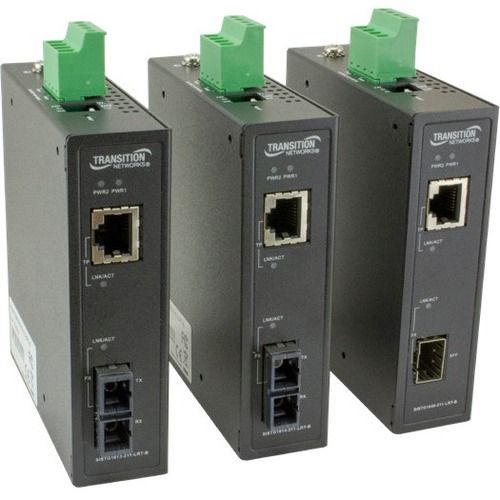

Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter

Name: Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter
Brand: TRANSITION NETWORKS
SKU: 5GM096
Price: 401.38 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

5GM096

MFG#

SISTG1014-211-LRT-B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$401.38

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
1 x SC Ports
Single
mode
Gigabit Ethernet
1000Base
LX, 10/100/1000Base
T
10 km
Power Supply
Rail
mountable

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Transition Networks, Inc
Manufacturer Part Number	SISTG1014-211-LRT-B
Manufacturer Website Address	http://www.transition.com
Brand Name	Transition Networks
Product Series	SISTG10xx-211-LRT-B
Product Model	SISTG1014-211-LRT-B
Product Name	Unmanaged Hardened Gigabit Ethernet Media Converter
Marketing Information	The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	10 km
Fiber Optic Cable Core/Cladding Specification	9/125 µm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-LX 10/100/1000Base-T

Power Description

Power Source

Power Supply

Physical Characteristics

Form Factor	Rail-mountable
Height	4.3"
Width	1.2"
Depth	3.9"
Weight (Approximate)	15.52 oz

Miscellaneous

Package Contents	Unmanaged Hardened Gigabit Ethernet Media Converter DIN Rail Mounting Brackets
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	Taiwan

Warranty

Limited Warranty

5 Year
