Transition Networks Managed Hardened Gigabit Ethernet Switch

Name: Transition Networks Managed Hardened Gigabit Ethernet Switch
Brand: LANTRONIX - IOT
SKU: 7AF453
Price: 685.81 USD
Availability: InStock

LANTRONIX - IOT

PCN#

7AF453

MFG#

SISGM1040-284-LRT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$685.81

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Ports
Manageable
Gigabit Ethernet
1000Base
T, 1000Base
X
4 Layer Supported
Modular
4 SFP Slots
11 W Power Consumption
Twisted Pair, Optical Fiber
Wall Mountable, DIN Rail Mountable
5 Year Limited Warranty
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 3 lbs.

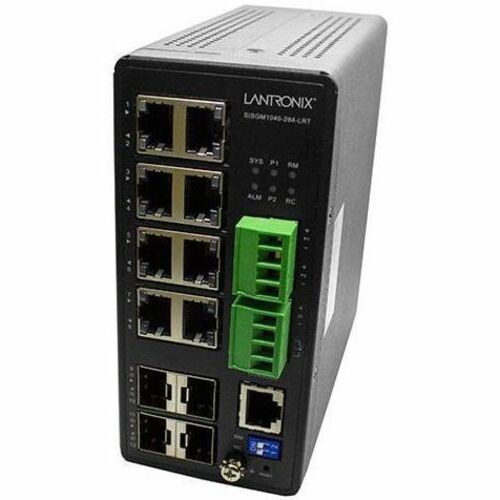

Lantronix Managed Hardened Gigabit Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	SISGM1040-284-LRT
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Model	SISGM1040-284-LRT
Product Name	Managed Hardened Gigabit Ethernet Switch
Marketing Information	The SISGM1040-284-LRT is a managed switch suitable for connecting devices in hardened environments. The switch has 24Gbps switching capacity. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire network. Transition Networks' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments.
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	8
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-X

I/O Expansions

Total Number of Expansion Slots	4
Expansion Slot Type	SFP (mini-GBIC)
Shared SFP Slot	No
Number of SFP Slots	4

Network & Communication

Layer Supported	4
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ab IEEE 802.3x IEEE 802.3az IEEE 802.3ad IEEE 802.1p IEEE 802.1Q IEEE 802.1w IEEE 802.1s IEEE 802.1ab IEEE 802.1ad IEEE 802.3ah IEEE 802.1ag IEEE 802.1D IEEE 802.1x

Management & Protocols

Manageable

Yes

Power Description

Input Voltage	48 V DC
Power Source	DC
Power Consumption	11 W

Physical Characteristics

Form Factor	Wall Mountable DIN Rail Mountable
Height	5.4"
Width	2.4"
Depth	5.3"
Weight (Approximate)	2.20 lb

Miscellaneous

Application/Usage	Network
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

5 Year
