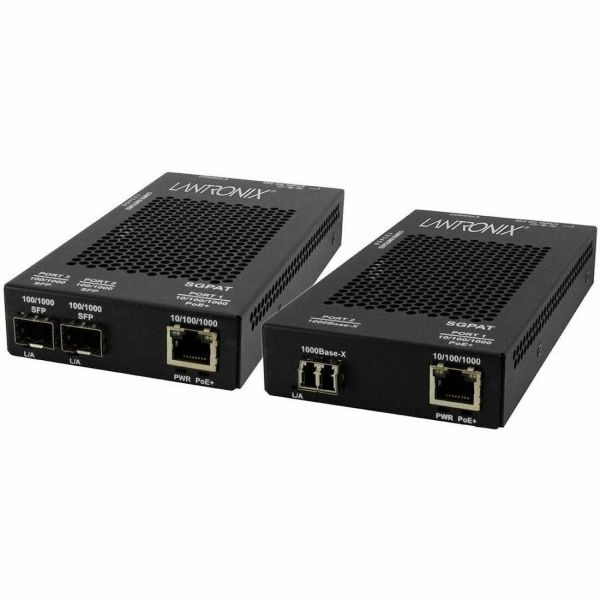

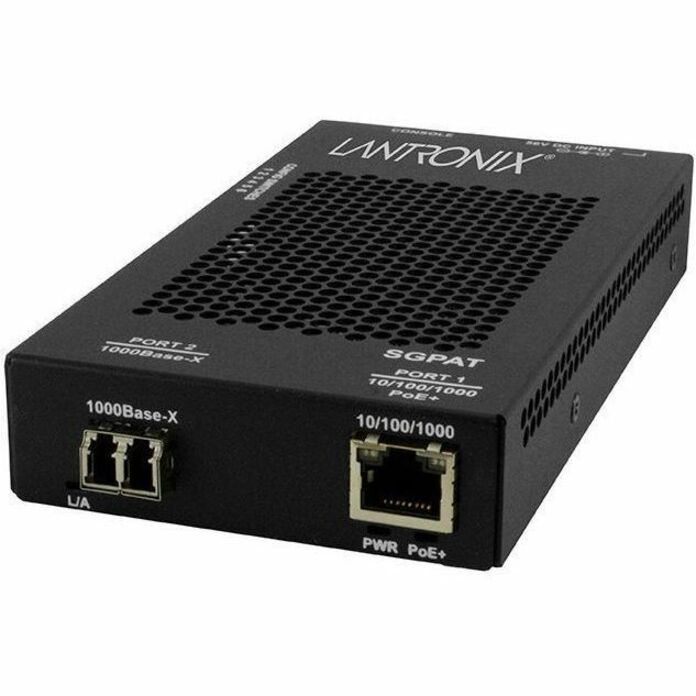

Transition Networks SGPAT1039-105 Transceiver/Media Converter

Name: Transition Networks SGPAT1039-105 Transceiver/Media Converter
Brand: TRANSITION NETWORKS
SKU: 2MH115
Price: 451 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

2MH115

MFG#

SGPAT1039-105-NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$451.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Network (RJ
45)
1x PoE+ (RJ
45) Ports
1 x LC Ports
Multi
mode
Gigabit Ethernet
1000Base
SX/LX, 10/100/1000Base
T, 1000Base
X
AC Adapter
Wall Mountable, Rail
mountable, Standalone, Desktop

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

Transition Networks SGPAT1039-105 Transceiver/Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Transition Networks, Inc
Manufacturer Part Number	SGPAT1039-105-NA
Manufacturer Website Address	http://www.transition.com
Brand Name	Transition Networks
Product Series	SGPAT
Product Model	SGPAT1039-105
Product Name	SGPAT1039-105 Transceiver/Media Converter
Marketing Information	The SGPAT10xx-105 is a 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter, which easily and affordably facilitates the connection between different types of network cabling, while also injecting PoE+ power through the copper RJ-45 port. Being a Power Sourcing Equipment (PSE) device, the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3at PoE+ standard, which is also backwards compatible with the IEEE 802.3af PoE standard. The converter is available in 2-port, 3-port, and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection, under-current protection, and fault protection input. Active Link Pass Through (ALPT) is supported, which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices, preventing the media converter from isolating those link failures. During a Link Pass Through event, the Auto Power Reset feature will re-set the power to the end PD device, ensuring it is ready to go when the LPT event is corrected.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of PoE+ (RJ-45) Ports	1
Number of LC Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	850 nm
Fiber Optic Cable Core/Cladding Specification	50/125 µm 62.5/125 µm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-SX/LX 10/100/1000Base-T 1000Base-X

Power Description

Power Source

AC Adapter

Physical Characteristics

Form Factor	Wall Mountable Rail-mountable Standalone Desktop
Height	1"
Width	3.3"
Depth	4.8"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	SGPAT1039-105 Transceiver/Media Converter Power Cord (North America)
Country of Origin	Taiwan

Warranty

Limited Warranty

Lifetime
