Transition Networks Fast Ethernet Media Converter

Name: Transition Networks Fast Ethernet Media Converter
Brand: TRANSITION NETWORKS - LANTRONIX
SKU: BD2391
Price: 185.53 USD
Availability: InStock

TRANSITION NETWORKS - LANTRONIX

PCN#

BD2391

MFG#

SBFTF1040-105-NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$185.53

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
Fast Ethernet
10/100Base
TX, 100Base
X
100 Mbit/s
0.10 km
1.0 x Expansion Slots
SFP
1 x SFP Slots
AC/DC
Wall Mountable, DIN Rail Mountable, Rack
mountable, Standalone, Shelf Mount
TAA Compliant

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

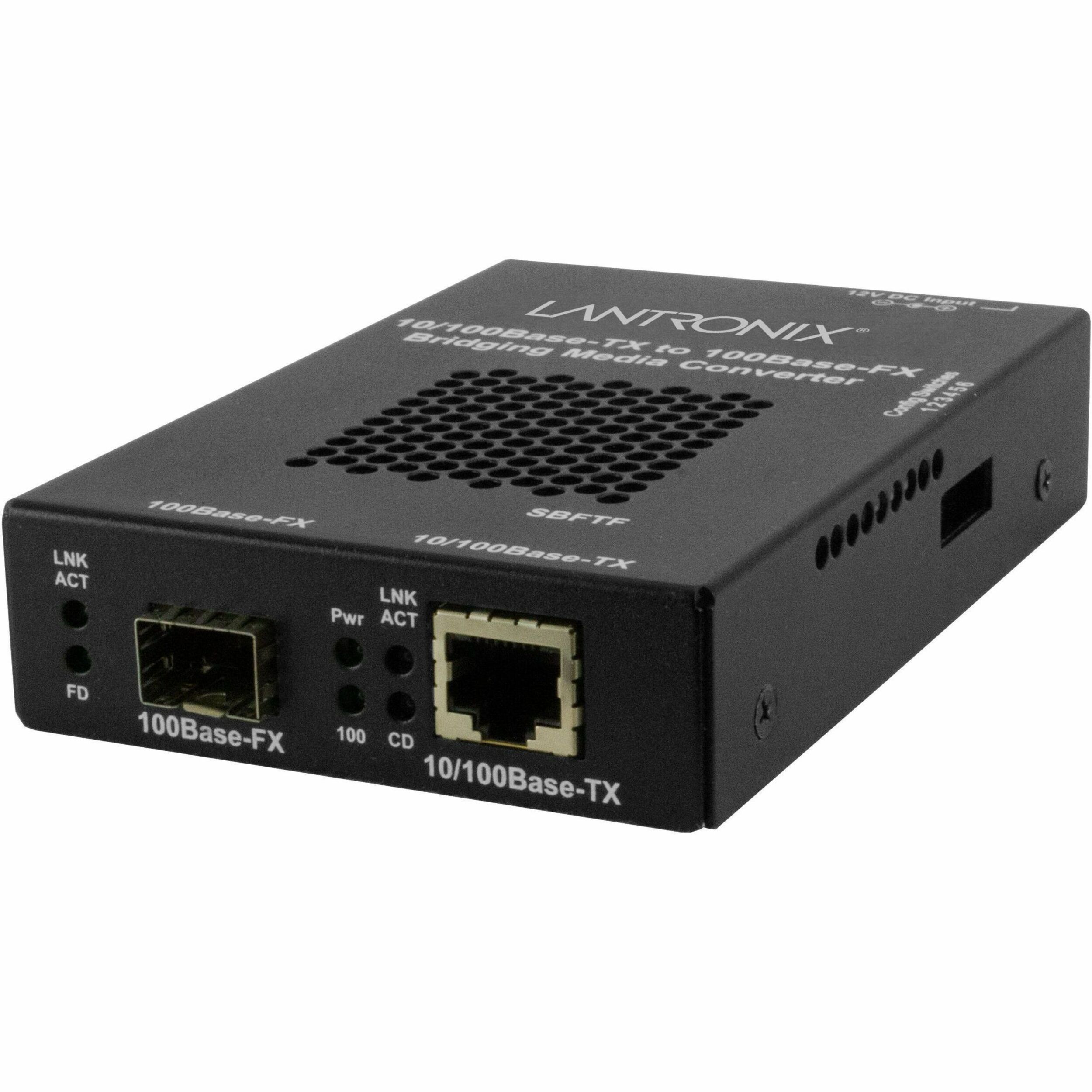

Lantronix SBFTF1040-105 Transceiver/Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	SBFTF1040105NA
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	SBFTF
Product Model	SBFTF1040-105
Product Name	SBFTF1040-105 Transceiver/Media Converter
Marketing Information	Stand-alone Fast Ethernet Media and Rate Converter 10/100Base-TX to 100Base-FX The SBFTF Series is a that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Maximum Data Transfer Rate	100 Mbit/s
Maximum Distance Supported	0.10 km

I/O Expansions

Total Number of Expansion Slots	1.0
Expansion Slot Type	SFP
Number of SFP Slots	1

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX 100Base-X

Power Description

Power Source	AC/DC
Input Voltage	12 V DC

Physical Characteristics

Form Factor	Wall Mountable DIN Rail Mountable Rack-mountable Standalone Shelf Mount
Height	1"
Width	3.3"
Depth	4.8"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	SBFTF1040-105 Transceiver/Media Converter Power Supply - North America
Application/Usage	Data Network
Additional Information	10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-X SFP Slot (empty)
Certifications & Standards	Safety: Wall Mount Power Supply: UL Listed; FCC Class A, VCCI Class 1, CISPR22/EN55022 Class A, EN55024, EN61000, CE Mark
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
