Transition Networks S6120-1014 Transceiver/Media Converter

Name: Transition Networks S6120-1014 Transceiver/Media Converter
Brand: TRANSITION NETWORKS
SKU: NA6895
Price: 1010.71 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

NA6895

MFG#

S6120-1014-NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,010.71

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Network (RJ
45)
1 x SC Ports
DuplexSC Port
Multi
mode
Fast Ethernet
T1/E1/J1, 10/100Base
TX
12.43 Mile
Power Supply
Standalone, Wall Mountable

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 3 lbs.

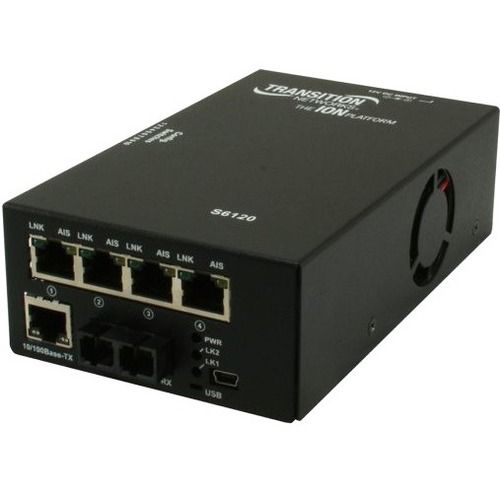

Transition Networks S6120-1014 Transceiver/Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Transition Networks, Inc
Manufacturer Part Number	S6120-1014-NA
Manufacturer Website Address	http://www.transition.com
Brand Name	Transition Networks
Product Series	S6210
Product Model	S6120-1014
Product Name	S6120-1014 Transceiver/Media Converter
Marketing Information	The ION S6120 is a managed stand-alone T1/E1/J1 media converter mux and provides a solution for those users that need to extend multiple T1/E1/J1 connections, along with a 10/100 Ethernet connection, all over fiber. The S6120 includes (4) RJ-48 ports, (1) 10/100 Ethernet port, and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The S6120 converter must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6120 is linked to a C6120 card installed in a managed ION chassis.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	5
Network (RJ-45)	Yes
DVI	No
USB	No
Management Port	No
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	12.43 Mile

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	T1/E1/J1 10/100Base-TX

Power Description

Power Source

Power Supply

Physical Characteristics

Form Factor	Standalone Wall Mountable
Height	1.8"
Width	3.7"
Depth	6.5"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	S6210-1014 Transceiver/Media Converter Power Supply
Environmentally Friendly	Yes
Environmental Certification	RoHS WEEE
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
