NID 4XTP 2XSFP NA BNDL

Name: NID 4XTP 2XSFP NA BNDL
Brand: TRANSITION NETWORKS
SKU: YC9011
Price: 482.98 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

YC9011

MFG#

S3290-42-NA

$482.98

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 4 lbs.

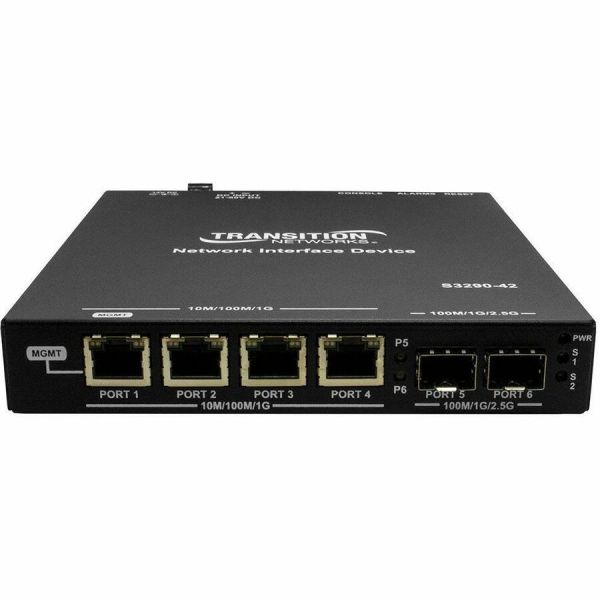

Transition Networks S3290-42 Transceiver/Media Converter

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	S329042NA
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Transition Networks
Product Series	S3290
Product Model	S3290-42
Product Name	S3290-42 Transceiver/Media Converter
Marketing Information	Remotely Managed NID with Built-in Traffic Generator Lantronix managed S3290 NID provides advanced packet performance metering and service creation directly at the customer premises and cell sites. The S3290 is optimized for business Ethernet and mobile backhaul deployments. The S3290 is a multi-service NID that provides SLA-assurance and advanced fault management that is MEF CE 2.0 certified. The S3290 supports advanced features and numerous security features. The S3290 can be managed and provisioned with Lantronix's CommandPoint NMS or via Web, CLI and SNMP (v1, v2c & v3). The S3290 offers AC or DC power inputs for operation in a variety of environments. The SFP ports support 100Mbps, 1000Mbps or SGMII SFPs. CWDM and Bi-Di SFPs are also supported, allowing for flexible network architectures.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Maximum Data Transfer Rate	1000 Mbit/s

I/O Expansions

Total Number of Expansion Slots	2.0
Expansion Slot Type	SFP
Number of SFP Slots	2

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 100/1000Base-X

Power Description

Power Source	Power Supply
Input Voltage	12 V DC

Physical Characteristics

Form Factor	Rack-mountable Wall Mountable DIN Rail Mountable Shelf Mount
Height	1"
Width	6"
Depth	6.5"

Miscellaneous

Package Contents	S3290-42 Transceiver/Media Converter Power Supply - North America
Application/Usage	Data Network
Additional Information	(4) 10/100/1000Mbps RJ-45 ports with (2) 100/1000Mbps SFP ports
Certifications & Standards	UL listed, CE, EN55022 Class A
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

5 Year
