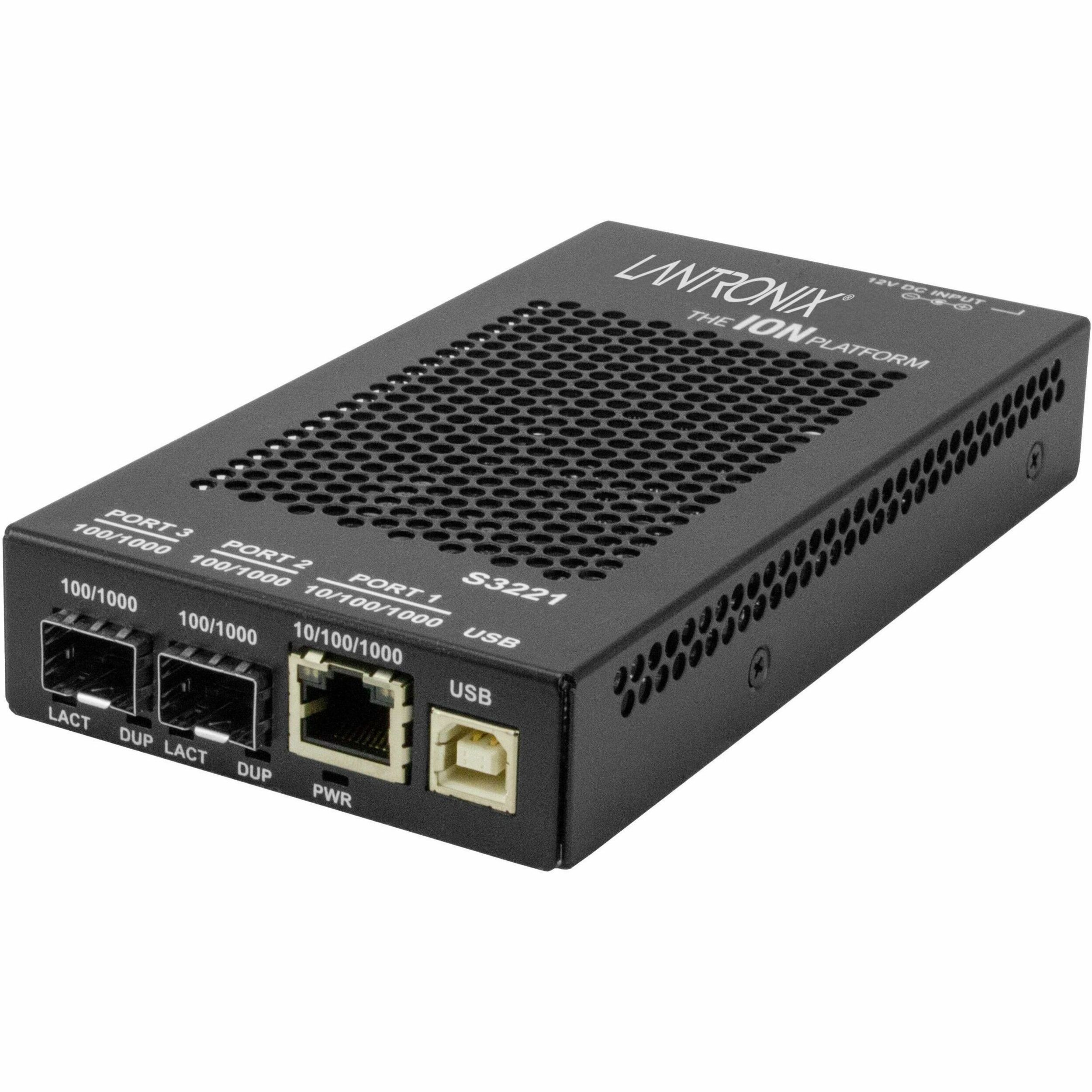

Transition Networks Stand-alone Gigabit Ethernet Remotely Managed NID

Name: Transition Networks Stand-alone Gigabit Ethernet Remotely Managed NID
Brand: TRANSITION NETWORKS
SKU: 4T1283
Price: 941.32 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

4T1283

MFG#

S3221-1040-T-NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$941.32

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
USB
Gigabit Ethernet
1000Base
SX/LX, 10/100/1000Base
T
328.08 ft
2 x Expansion Slots
SFP
2 x SFP Slots
Power Supply
Standalone, Wall Mountable, Rail
mountable

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

Transition Networks Stand-alone Gigabit Ethernet Remotely Managed NID

Overview

Tech Specs

Specifications

Manufacturer	Transition Networks, Inc
Manufacturer Part Number	S3221-1040-T-NA
Manufacturer Website Address	http://www.transition.com
Brand Name	Transition Networks
Product Series	S3220
Product Model	S3221-1040-T
Product Name	Stand-alone Gigabit Ethernet Remotely Managed NID
Marketing Information	The ION S3220 is a stand-alone managed Network Interface Device (NID) that provides an interface between 10/100/1000Base-TX ports and 1000Base-SX/LX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the S3220 can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C3220 card installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the S3220 offers a variety of methods for the secure delivery of Ethernet services in business and mobile backhaul applications.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
DVI	No
USB	Yes
Management Port	No
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Maximum Distance Supported	328.08 ft

I/O Expansions

Number of Total Expansion Slots	2
Expansion Slot Type	SFP
Number of SFP Slots	2

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-SX/LX 10/100/1000Base-T

Power Description

Power Source

Power Supply

Physical Characteristics

Form Factor	Standalone Wall Mountable Rail-mountable
Height	1"
Width	3.3"
Depth	6.5"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	Stand-alone Gigabit Ethernet Remotely Managed NID North America Power Supply
Environmentally Friendly	Yes
Country of Origin	Taiwan

Warranty

Limited Warranty

Lifetime
