Transition Networks Stand-alone Gigabit Ethernet Remotely Managed NID

Name: Transition Networks Stand-alone Gigabit Ethernet Remotely Managed NID
Brand: TRANSITION NETWORKS
SKU: 9ML287
Price: 1174.64 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

9ML287

MFG#

S3220-1014

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,174.64

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
1 x SC Ports
USB
Single
mode
Gigabit Ethernet
1000Base
LX, 10/100/1000Base
T
6.21 Mile
Power Supply
Standalone

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

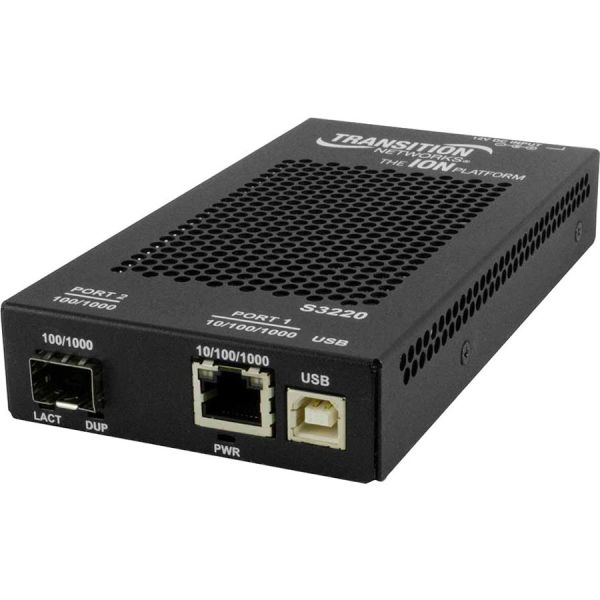

Transition Networks Stand-alone Gigabit Ethernet Remotely Managed NID

Overview

Tech Specs

Specifications

Manufacturer	Transition Networks, Inc
Manufacturer Part Number	S3220-1014
Manufacturer Website Address	http://www.transition.com
Brand Name	Transition Networks
Product Line	ION
Product Series	S3220
Product Model	S3220-1014
Product Name	Stand-alone Gigabit Ethernet Remotely Managed NID
Marketing Information	The ION S3220 is a stand-alone managed Network Interface Device (NID) that provides an interface between 10/100/1000Base-TX ports and 1000Base-SX/LX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the S3220 can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C3220 card installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the S3220 offers a variety of methods for the secure delivery of Ethernet services in business and mobile backhaul applications.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
USB	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Single-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	6.21 Mile

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-LX 10/100/1000Base-T

Power Description

Power Source

Power Supply

Physical Characteristics

Form Factor	Standalone
Height	1"
Width	3.3"
Depth	6.5"
Weight (Approximate)	2 lb

Warranty

Limited Warranty

Lifetime
