Transition Networks M.2 Gigabit Ethernet Fiber Network Interface Card

Name: Transition Networks M.2 Gigabit Ethernet Fiber Network Interface Card
Brand: LANTRONIX - IOT
SKU: 1FD860
Price: 220.76 USD
Availability: InStock

LANTRONIX - IOT

PCN#

1FD860

MFG#

NM2-GXE-2230-SFP-01

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$220.76

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

M.2 NIC AND OPEN SFP MEDIA CONVERTER, 30MM

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

M.2 Gigabit Ethernet Fiber Network Interface Card for Dell OptiPlex™ 3060/5060/7060/7070 & 7080/7090 Micro PCs 1000Base-X

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	NM2-GXE-2230-SFP-01
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	NM2-GXE-2230-xx-01
Product Name	M.2 Gigabit Ethernet Fiber Network Interface Card

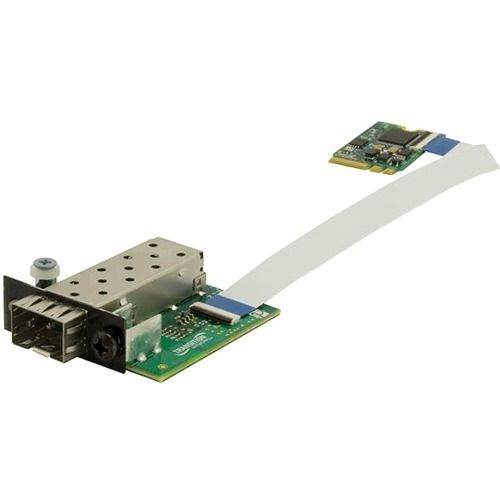

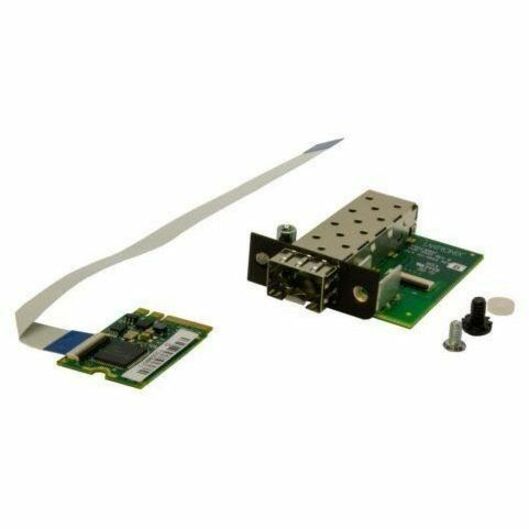

Marketing Information	Lantronix M.2 Gigabit Ethernet Fiber Network Interface Card NIC provides a fiber optic interface for the Dell OptiPlex™ 3060/5060/7060/7070 and 7080/7090 Micro PCs. The NM2-GXE-2230-xx-201 Series consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "A or E keyed" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable FFC that connects the NIC to the fiber adapter. The fiber optic adapter is available with either a 1000Base-SX LC connector or an open SFP SFP module sold separately. Please note the variation in versions within Ordering Information. NDAA Compliant, TAA Compliant
Product Type	Gigabit Ethernet Card

Technical Information

Features

Wake on LAN (WOL)
IPv6
PXE Support
Jumbo Frames Support

Interfaces/Ports

Host Interface	M.2
Total Number of Ports	1

I/O Expansions

Expansion Slot Type

SFP

Media & Performance

Media Type Supported

Optical Fiber

Network & Communication

Network Technology

1000Base-X

Physical Characteristics

Height	0.5"
Width	1.7"
Depth	2.1"
Weight (Approximate)	1.60 oz

Miscellaneous

Device Supported	Server
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
