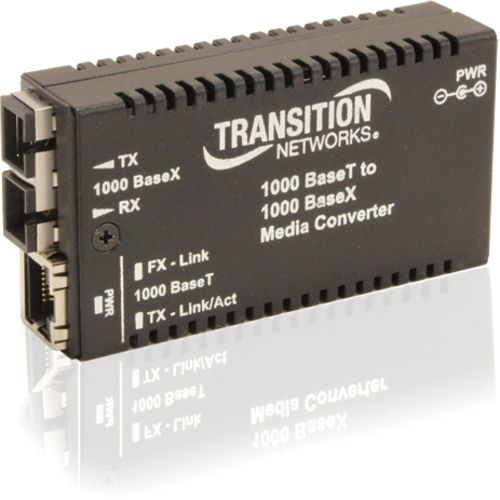

Transition Networks Mini Gigabit Ethernet Media Converter

Name: Transition Networks Mini Gigabit Ethernet Media Converter
Brand: LANTRONIX - IOT
SKU: RG6612
Price: 325.05 USD
Availability: InStock

LANTRONIX - IOT

PCN#

RG6612

MFG#

M/GE-T-SX-01-NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$325.05

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
1 x SC Ports
10/100/1000Base
T, 1000Base
SX
0.55 km
Desktop, Wall Mountable, Rack
mountable

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

Transition Networks M/GE-T-SX-01 Transceiver/Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	M/GE-T-SX-01-NA
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Transition Networks
Product Model	M/GE-T-SX-01
Product Name	M/GE-T-SX-01 Transceiver/Media Converter
Marketing Information	Mini Gigabit Ethernet Media Converter 1000Base-T to 1000Base-SX/LX The M/GE-T Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Parallel Port	No
Digital Audio	No
Digital Audio/Video	No
Management Port	No
Number of Network (RJ-45) Ports	1
Number of SC Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Maximum Distance Supported	0.55 km

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-SX

Power Description

Input Voltage

12 V DC

Physical Characteristics

Form Factor	Desktop Wall Mountable Rack-mountable
Height	0.9"
Width	1.8"
Depth	3.3"

Miscellaneous

Package Contents	M/GE-T-SX-01 Transceiver/Media Converter Power Supply - North America
Additional Information	1000Base-T (RJ-45) [100m/328 ft.] to 1000Base-SX 850nm multimode (SC)[62.5/125 µm fiber: 220 m/722 ft.] [50/125 µm fiber: 550 m/1804 ft.] Link Budget: 7.0 dB
Certifications & Standards	Safety: Wall Mount Power Supply, UL Listed, cUL Listed (Canada), FCC Class A, CISPR22 / EN55022 Class A, EN55024, CE Mark
Environmentally Friendly	Yes
Environmental Compliance	Error-dirty-data

Warranty

Limited Warranty

Lifetime
