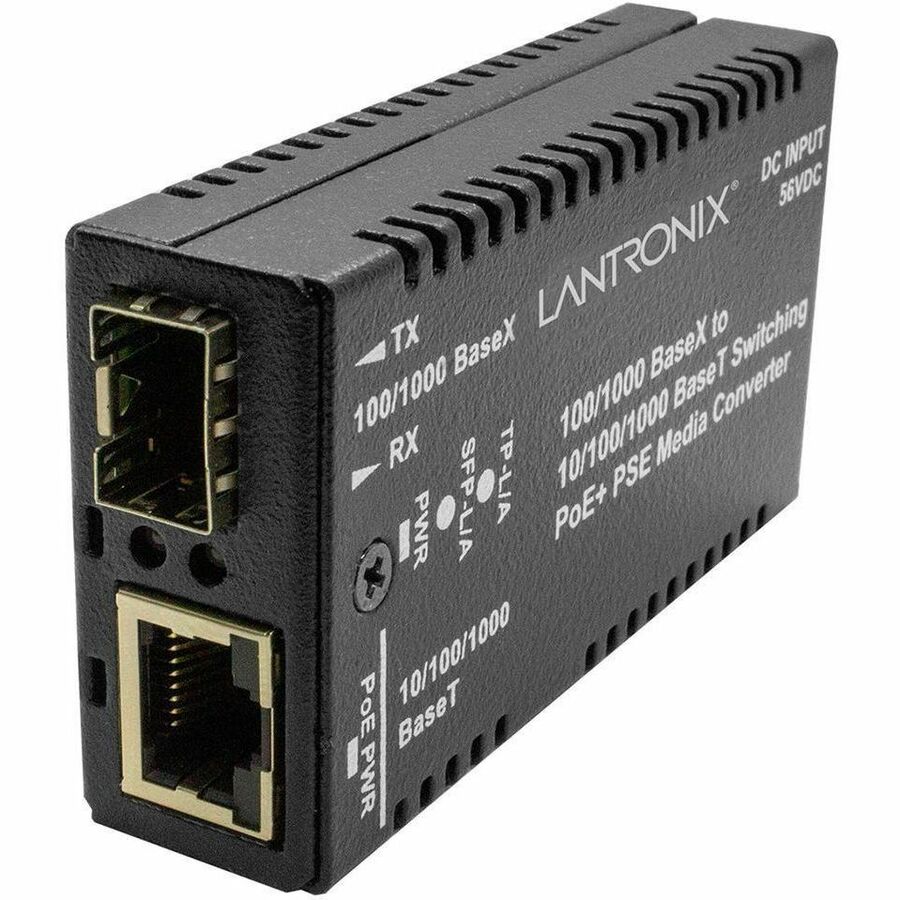

Lantronix M/GE-PSW-PSE-01 Transceiver/Media Converter

Name: Lantronix M/GE-PSW-PSE-01 Transceiver/Media Converter
Brand: TRANSITION NETWORKS
SKU: 9JP431
Price: 285.17 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

9JP431

MFG#

M/GE-PSW-PSE-01-NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$285.17

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
1x PoE+ (RJ
45) Ports
Gigabit Ethernet
10/100/1000Base
T, 100/1000Base
X
0.10 km
1.0 x Expansion Slots
SFP
1 x SFP Slots
AC/DC
Wall Mountable, Rack
mountable, DIN Rail Mountable, Tabletop
TAA Compliant

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

Lantronix M/GE-PSW-PSE-01 Transceiver/Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Transition Networks, Inc
Manufacturer Part Number	MGEPSWPSE01NA
Manufacturer Website Address	http://www.transition.com
Brand Name	Lantronix
Product Model	M/GE-PSW-PSE-01
Product Name	M/GE-PSW-PSE-01 Transceiver/Media Converter
Marketing Information	Mini Fast / Gigabit Ethernet PoE+ Media Converter 10/100/1000Base-T PoE+ RJ-45 Port + 100/1000Base-X SFP Slot This Gigabit Ethernet Stand-alone Mini Media Converter provides cost-effective media conversion between 10/100/1000Base-T ports and 100/1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, but it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber. In addition to providing copper to fiber conversion, this converter is also classified as Power Sourcing Equipment (PSE), meaning it combines data received over the fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over the twisted Pair cable, while complying with the IEEE 802.3af and IEEE 802.3at PoE+ standards. This allows the user to take advantage of the benefits of fiber cabling, along with the benefits of Power-over-Ethernet (PoE) technology. Supporting PoE allows this converter to send data and power to devices like VoIP Phones, Security Cameras, and Wireless Access Points, especially if they need to be located in remote areas of your network that can only be reached with fiber optic cabling.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of PoE+ (RJ-45) Ports	1
PoE Port Type	PSE
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Maximum Distance Supported	0.10 km

I/O Expansions

Total Number of Expansion Slots	1.0
Expansion Slot Type	SFP
Number of SFP Slots	1

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 100/1000Base-X

Power Description

Power Source	AC/DC
Input Voltage	56 V DC
Power Consumption	34 W

Physical Characteristics

Form Factor	Wall Mountable Rack-mountable DIN Rail Mountable Tabletop
Height	0.9"
Width	1.8"
Depth	3.3"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	M/GE-PSW-PSE-01 Transceiver/Media Converter Power Supply - North America
Application/Usage	VoIP Phone Security Camera Wireless Access Point Network Data
Additional Information	10/100/1000Base-T PoE+ RJ-45 port [100 m/ 328 ft.] to 100/1000Base-X SFP slot (empty)
Certifications & Standards	EN55032-2012 Class A, IEC 61850-3:2002, EN55024-2010, CE Mark, Power Supply is UL listed
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
