Transition Networks Fast Ethernet or ATM/SONET Transceiver

Name: Transition Networks Fast Ethernet or ATM/SONET Transceiver
Brand: LANTRONIX - IOT
SKU: 999223
Price: 735.17 USD
Availability: InStock

LANTRONIX - IOT

PCN#

999223

MFG#

F-SM-MM-02-NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$735.17

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

2 x SC Ports
Multi
mode, Single
mode
1300 nm, 1310 nm Fiber
Fast Ethernet
OC
3
155 Mbit/s
20 km
AC/DC
Standalone, DIN Rail Mountable, Wall Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

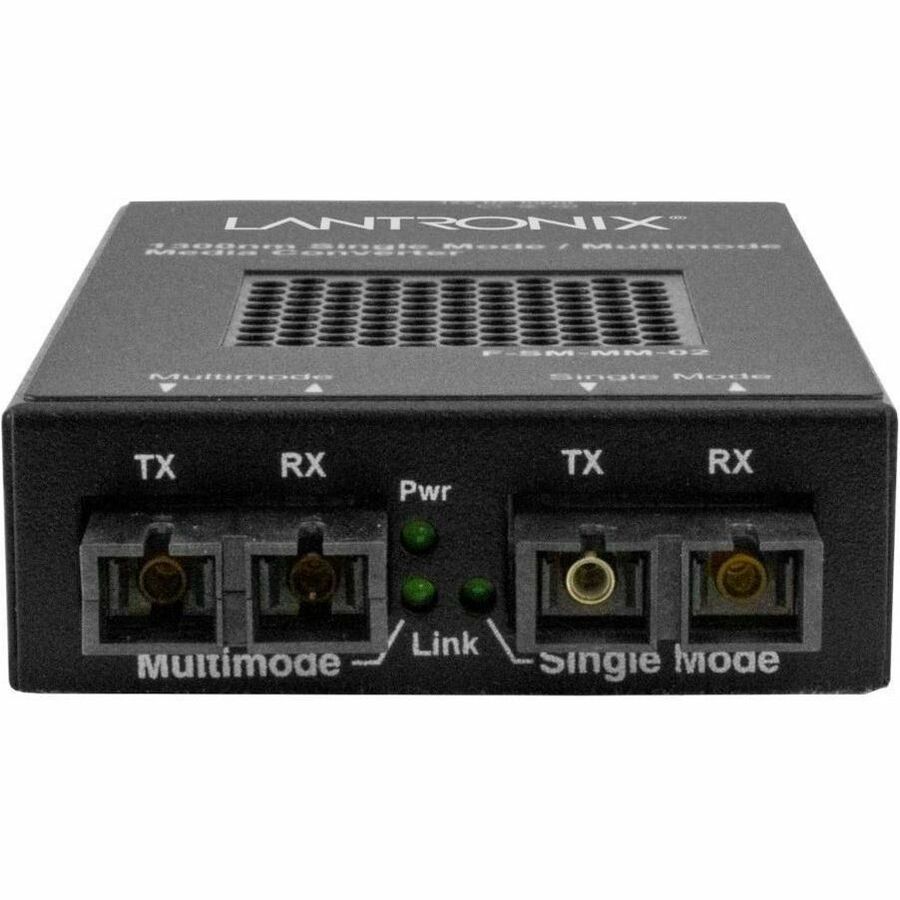

Transition Networks Stand-alone Fiber to Fiber Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	F-SM-MM-02-NA
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Transition Networks
Product Model	F-SM-MM-02
Product Name	Stand-alone Fiber to Fiber Media Converter
Marketing Information	The F-SM-MM-02 fiber to fiber stand-alone media converter extends distance up to 20 km with network protocols that use 1300nm wavelength for fiber optic transmission. In fact, distances can be extended in any networking protocol between 100 Mbps and 155 Mbps.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Number of SC Ports	2

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Multi-mode Single-mode
Fiber Optic Cable Wavelength	1300 nm 1310 nm
Maximum Data Transfer Rate	155 Mbit/s
Maximum Distance Supported	20 km

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	OC-3

Power Description

Power Source

AC/DC

Physical Characteristics

Form Factor	Standalone DIN Rail Mountable Wall Mountable
Height	1"
Width	3"
Depth	4.7"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	Stand-alone Fiber to Fiber Media Converter Power Supply (North America)
Application/Usage	Data
Certifications & Standards	NDAA IEEE 802.3 UL Listed and CSA certified CISPR/EN55022 Class A EN55024 EN61000 FCC Class A CE Mark
