Transition Networks Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX

Name: Transition Networks Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX
Brand: TRANSITION NETWORKS - LANTRONIX
SKU: 7QL376
Price: 191.18 USD
Availability: InStock

TRANSITION NETWORKS - LANTRONIX

PCN#

7QL376

MFG#

E-100BTX-FX-06-NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$191.18

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
1 x ST Ports
Multi
mode
0.1 mil Fiber
Fast Ethernet
100Base
FX, 100Base
TX
100 Mbit/s
2 km
AC/DC
Standalone, Rack
mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount
TAA Compliant

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

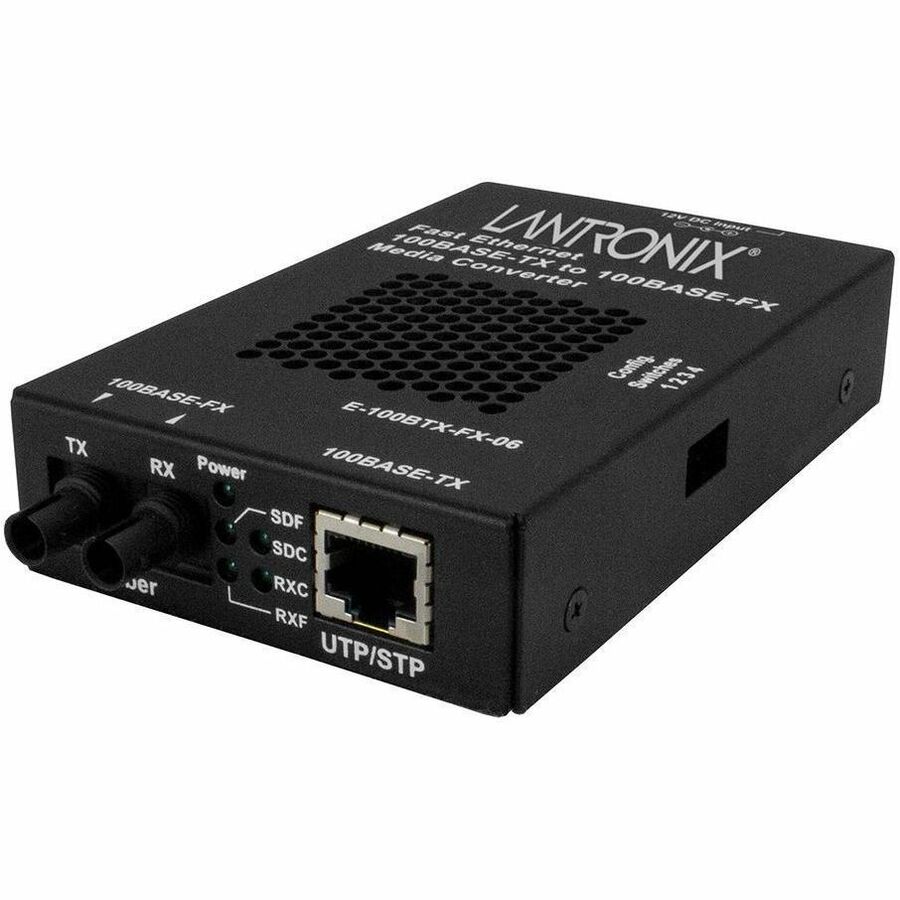

Lantronix E-100BTX-FX-06 Transceiver/Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	E100BTXFX06NA
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	E-100BTX
Product Model	E-100BTX-FX-06
Product Name	E-100BTX-FX-06 Transceiver/Media Converter
Marketing Information	Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of ST Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	0.1 mil
Maximum Data Transfer Rate	100 Mbit/s
Maximum Distance Supported	2 km

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	100Base-FX 100Base-TX

Power Description

Power Source	AC/DC
Input Voltage	230 V AC 120 V AC
Power Consumption	1.75 W

Physical Characteristics

Form Factor	Standalone Rack-mountable Wall Mountable DIN Rail Mountable Shelf Mount
Height	1"
Width	3"
Depth	4.7"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	E-100BTX-FX-06 Transceiver/Media Converter Power Supply - North America
Application/Usage	Data Network
Additional Information	100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (ST) [2 km/1.2 mi.] Link Budget: 11.0 dB
Certifications & Standards	Regulatory: FCC Class A, EN55024, EN55022 Class A, EN61000, CE Mark
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
