Transition Networks C3231-1040 Gigabit Ethernet Media Converter

Name: Transition Networks C3231-1040 Gigabit Ethernet Media Converter
Brand: LANTRONIX - IOT
SKU: DL6197
Price: 1000.88 USD
Availability: InStock

LANTRONIX - IOT

PCN#

DL6197

MFG#

C3231-1040

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,000.88

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
USB
Gigabit Ethernet
10/100/1000Base
T, 1000Base
X
1000 Mbit/s
0.10 km
1 x Expansion Slots
SFP (mini
GBIC)
2 x SFP Slots
AC/DC
TAA Compliant

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

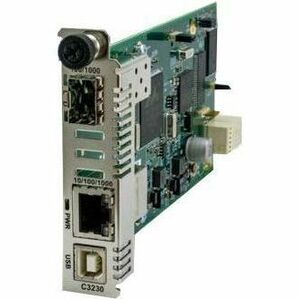

Transition Networks ION Gigabit Ethernet Remotely Managed NID Module

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	C3231-1040
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Transition Networks
Product Line	ION
Product Series	C3230
Product Model	C3231-1040
Product Name	ION Gigabit Ethernet Remotely Managed NID Module
Marketing Information	The ION 3230 Series of Network Interface Devices (NIDs) are multiservice NIDs that provide SLA-assurance and advance fault management that is compliant with MEF and IEEE standards. The ION 3230 Series is designed for business Ethernet and mobile backhaul deployments. The ION S3230 Series are MEF 9, 14 and 21 certified. The ION 3230 Series is a 10/100/1000Mbps product with advanced features including - IEEE 802.1ag Service OAM, IEEE 802.3ah Link OAM, ITU Y.1731 Performance Monitoring, VLAN, QoS, SSH/SSL, jumbo frame support and bandwidth allocation. Applications include: Ethernet in the First Mile (EFM), Fiber to the Premises (FTTP), E-Line Services (EPL & EVPL), and Enterprise Markets.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
USB	Yes
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Maximum Data Transfer Rate	1000 Mbit/s
Maximum Distance Supported	0.10 km

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	2

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X

Power Description

Power Source

AC/DC

Physical Characteristics

Height	1"
Width	3.3"
Depth	6.5"
Weight (Approximate)	2 lb

Miscellaneous

Application/Usage	Network
Certifications & Standards	NDAA MEF IEEE 802.3 IEEE 802.3ah IEEE 802.1P IEEE 802.1Q EN55022 Class A EN55024 UL60950 CE Mark
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
