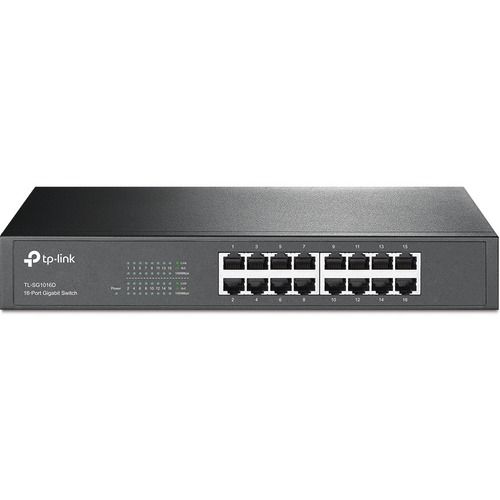

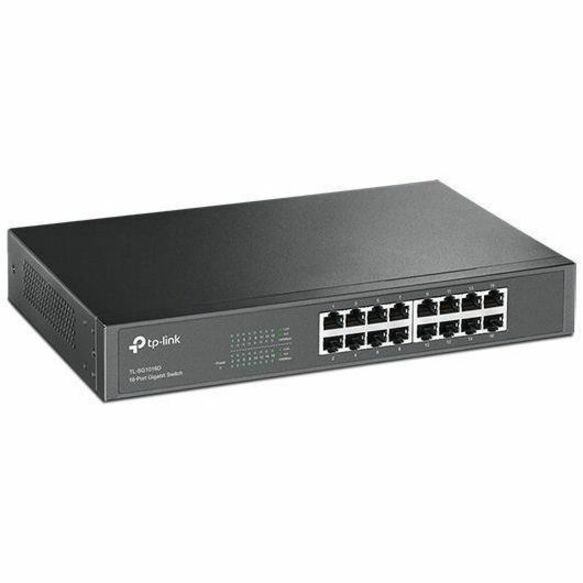

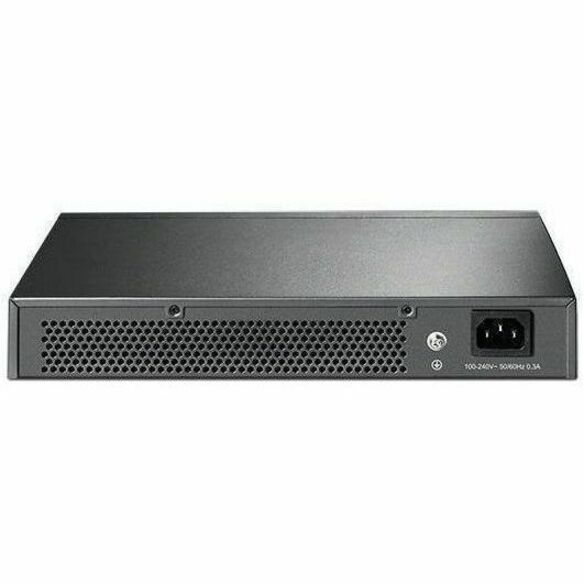

TP-LINK TL-SG1016D 10/100/1000Mbps 16-Port Gigabit 13-inch Rackmountable Switch, 32Gbps Capacity

TP-LINK Green TechnologyThis new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled. High PerformanceAll 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly. Easy to UseThe auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Traffic SeparationIsolation Mode easily divides traffic for specific ports with one click to avoid snooping, tampering and isolation broadcast storm for higher security. Loop PreventionMonitor and address loop-related issues within your network structure to prevent disruptions caused by looping.Product TypeEthernet SwitchTechnical InformationFeatures

• Plug and Play
• Fanless
• Loop Protection
• Energy Efficient

Interfaces/PortsTotal Number of Network Ports16Number of Network (RJ-45) Ports16Network (RJ-45)YesPort/Expansion Slot Details16 x Gigabit Ethernet NetworkMedia & PerformanceMedia Type SupportedTwisted PairEthernet TechnologyGigabit EthernetNetwork Technology10/100/1000Base-TNetwork & CommunicationLayer Supported2Networking Standards

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x

Management & ProtocolsManageableNoPower DescriptionInput Voltage

• 120 V AC
• 230 V AC

Frequency

• 50 Hz
• 60 Hz

Power SourcePower SupplyPower Consumption9.95 WPhysical CharacteristicsForm Factor

• Rack-mountable
• Desktop

Height1.2"Width11.6"Depth7.1"MiscellaneousPackage Contents

• 16-Port Gigabit Desktop/Rackmount Switch
• Power Cord
• Installation Guide
• Rackmount Kits
• Rubber Feet

Application/Usage

• Network
• Business

Certifications & StandardsFCCEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)
