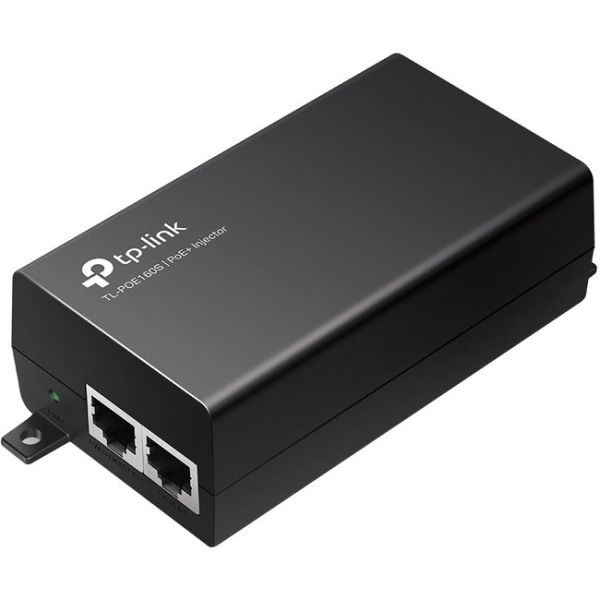

TP-LINK TL-PoE160S - 802.3at/af Gigabit PoE Injector - Non-PoE to PoE Adapter - Supplies PoE (15.4W) or PoE+ (30W) - Plug & Play - Desktop/Wall-Mount - Distance Up to 328 ft. - UL Certified - Black

Name: TP-LINK TL-PoE160S - 802.3at/af Gigabit PoE Injector - Non-PoE to PoE Adapter - Supplies PoE (15.4W) or PoE+ (30W) - Plug & Play - Desktop/Wall-Mount - Distance Up to 328 ft. - UL Certified - Black
Brand: TP-LINK SYSTEMS INC.
SKU: 8PL074
Price: 38.76 USD
Availability: OutOfStock

TP-LINK SYSTEMS INC.

PCN#

8PL074

MFG#

TL-POE160S

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

120 V AC, 230 V AC Input
1 x 10/100/1000Base
T Input Port(s)
1 x 10/100/1000Base
T Output Port(s)
30 W
Wall
mountable/Desk
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 2 lbs.

TP-LINK TL-PoE160S - 802.3at/af Gigabit PoE Injector - Non-PoE to PoE Adapter - Supplies PoE (15.4W) or PoE+ (30W) - Plug & Play - Desktop/Wall-Mount - Distance Up to 328 ft. - UL Certified - Black

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	TL-POE160S
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	TP-Link
Product Name	PoE+ Injector

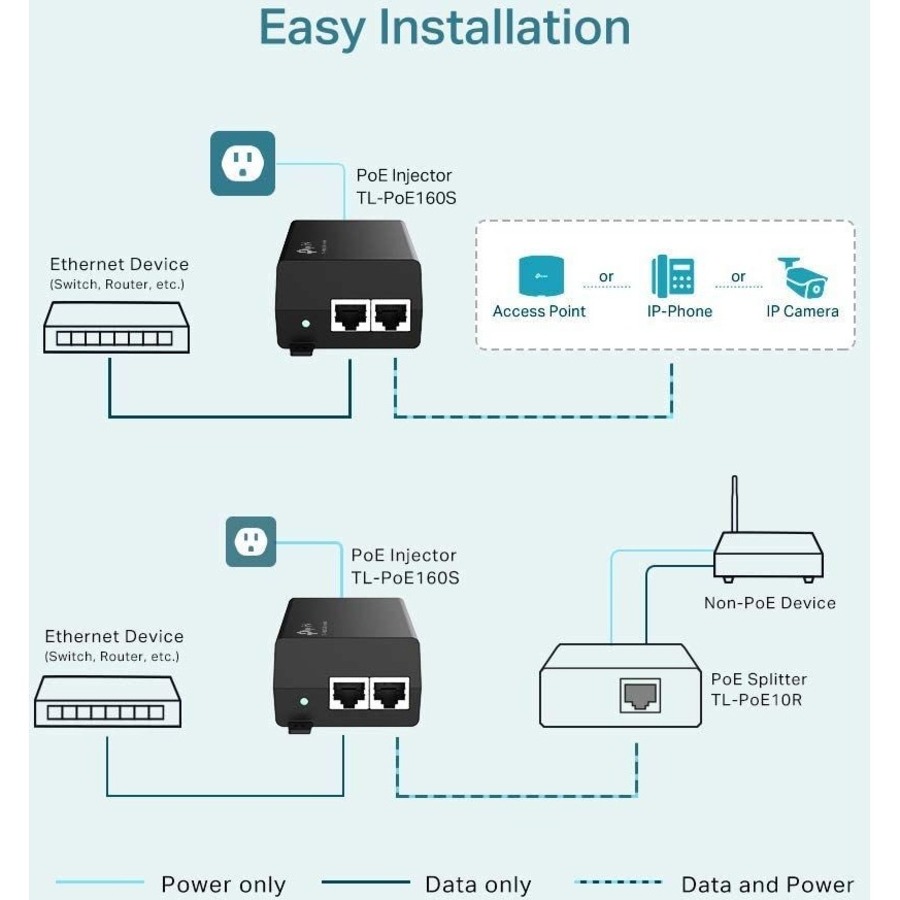

Marketing Information	The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Product Type	PoE Injector

Power Description

Input Voltage	120 V AC 230 V AC
Minimum Frequency	50 Hz
Maximum Frequency	60 Hz
Maximum Output Power	30 W

Interfaces/Ports

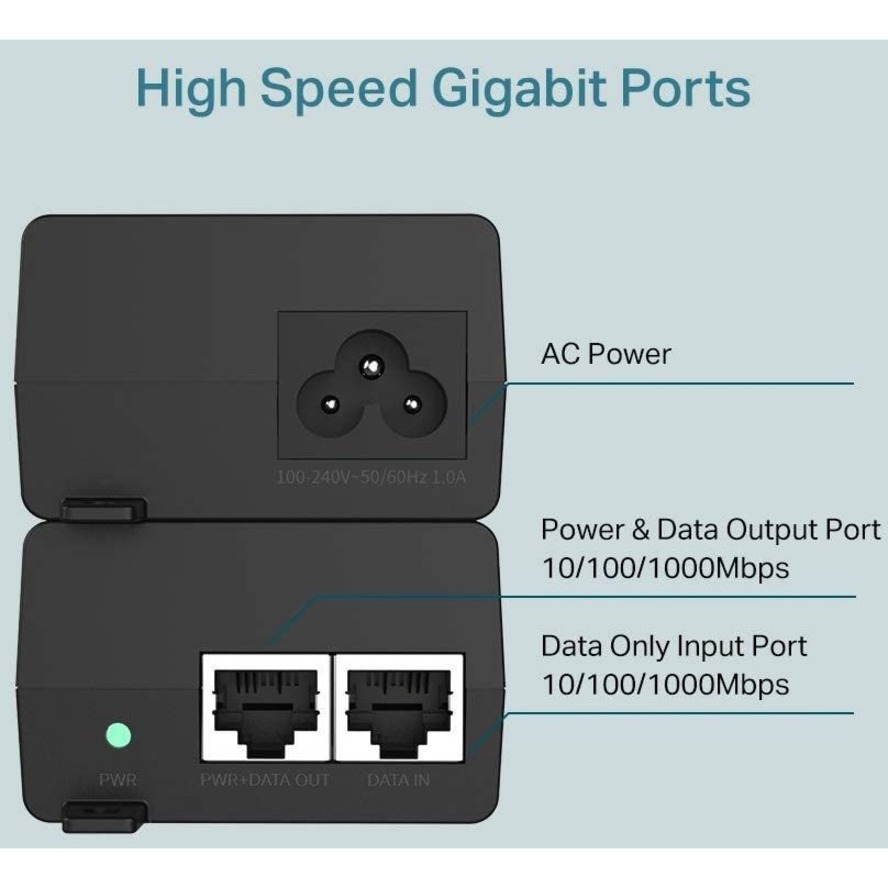

Input Ports	1 x 10/100/1000Base-T
Output Ports	1 x 10/100/1000Base-T

Physical Characteristics

Product Color	Black
Form Factor	Desktop/Wall Mountable
Mount Type	Wall-mountable/Desk-mountable
Height	1.4"
Width	4.9"
Depth	2.3"

Miscellaneous

Additional Information	Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play
Compatibility	TP-Link TL-POE10R PoE Splitter All IEEE 802.3af/at PoE Compliant Powered Devices or PoE Receiver Adapters
Certifications & Standards	IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3af IEEE802.3at CE FCC
Environmentally Friendly	Yes
Environmental Certification	RoHS
Country of Origin	China

Warranty

Limited Warranty

2 Year
