OMADA WDM BI-DIRECTIONALSFP MOD OMADA WDM BI-DIRECTIONAL SFP MODULE

Name: OMADA WDM BI-DIRECTIONALSFP MOD OMADA WDM BI-DIRECTIONAL SFP MODULE
Brand: TP-LINK SYSTEMS INC.
SKU: NK5117
Price: 26.02 USD
Availability: InStock

TP-LINK SYSTEMS INC.

PCN#

NK5117

MFG#

SM321B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$26.02

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $9.99

1-Year $7.99

Estimated Shipment:

Product Highlights:

For Data Networking, Optical Network
1 x LC Simplex 1000Base
BX Network
Optical Fiber
9/125 µm
1310 nm, 1550 nm Wavelength
Single
mode
Gigabit Ethernet
1000Base
BX, 1000Base
BiDi
1.25 Gbit/s
20 km Maximum Distance
Hot
swappable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

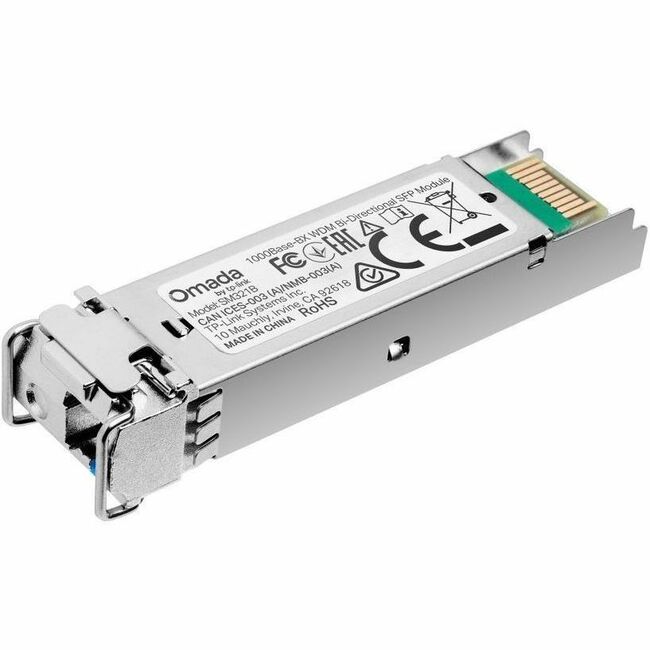

Omada 1000Base-BX WDM Bi-Directional SFP Module

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	SM321B
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	Omada
Product Model	SM321B
Product Name	1000Base-BX WDM Bi-Directional SFP Module
Marketing Information	What This Product Does SM321B adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.
Product Type	SFP

Technical Information

Application/Usage	Data Networking Optical Network
Features	Digital Diagnostics Monitoring Interface (DDMI)

Interfaces/Ports

Total Number of Ports	1
Connector Type	LC
Interfaces/Ports Details	1 x LC Simplex 1000Base-BX Network

Media & Performance

Media Type Supported	Optical Fiber
Fiber Optic Cable Core/Cladding Specification	9/125 µm
Fiber Optic Cable Wavelength	1310 nm 1550 nm
Fiber Mode Supported	Single-mode
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-BX 1000Base-BiDi
Maximum Distance Supported	20 km
Maximum Data Transfer Rate	1.25 Gbit/s

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	158°F (70°C)

Physical Characteristics

Form Factor	Hot-swappable
Height	0.5"
Width	2.1"
Depth	0.5"

Miscellaneous

Package Contents	1000Base-BX WDM Bi-Directional SFP Module Installation Guide
Compatibility	MSA Compliant
Country of Origin	China
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
