OMADA WDM BI-DIRECTIONALSFP MOD OMADA WDM BI-DIRECTIONAL SFP MODULE

Name: OMADA WDM BI-DIRECTIONALSFP MOD OMADA WDM BI-DIRECTIONAL SFP MODULE
Brand: TP-LINK SYSTEMS INC.
SKU: NK5119
Price: 18.86 USD
Availability: InStock

TP-LINK SYSTEMS INC.

PCN#

NK5119

MFG#

SM321A-2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$18.86

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $5.99

2-Year $7.99

Estimated Shipment:

Product Highlights:

For Data Networking, Optical Network
1 x LC 1000Base
BX Simplex Network
Optical Fiber
Single
mode
Gigabit Ethernet
1000Base
BX, 1000Base
BiDi
1.25 Gbit/s
2 km Maximum Distance
Hot
swappable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

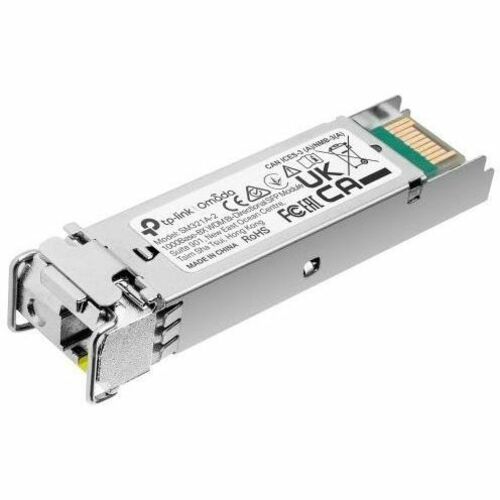

TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	SM321A-2
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	TP-Link
Product Line	Omada
Product Model	SM321A-2
Product Name	Omada 1000Base-BX WDM Bi-Directional SFP Module
Marketing Information	What This Product Does TP-Link´s SM321A-2 (TL-SM321A-2) is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, SM321A-2 (TL-SM321A-2) uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 µm SMF (Single-Mode Fiber). Also, SM321A-2 (TL-SM321A-2) incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature. TP-Link's SM321A-2 (TL-SM321A-2) is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.
Product Type	SFP (mini-GBIC)

Technical Information

Application/Usage	Data Networking Optical Network
Features	Digital Diagnostics Monitoring Interface (DDMI)

Interfaces/Ports

Total Number of Ports	1
Connector Type	LC
Interfaces/Ports Details	1 x LC 1000Base-BX Simplex Network

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Single-mode
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-BX 1000Base-BiDi
Maximum Distance Supported	2 km
Maximum Data Transfer Rate	1.25 Gbit/s

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	158°F (70°C)

Physical Characteristics

Form Factor	Hot-swappable
Height	0.5"
Width	2.2"
Depth	0.6"

Miscellaneous

Package Contents	Omada 1000Base-BX WDM Bi-Directional SFP Module Installation Guide
Compatibility	MSA Compliant
Country of Origin	China
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
