OMADA 8-PORT L2+ MANAGED SWITCH OMADA 8-PORT GIG L2+ MANAGED SWITCH

Convenient Gigabit Switch for a Complete Omada Network

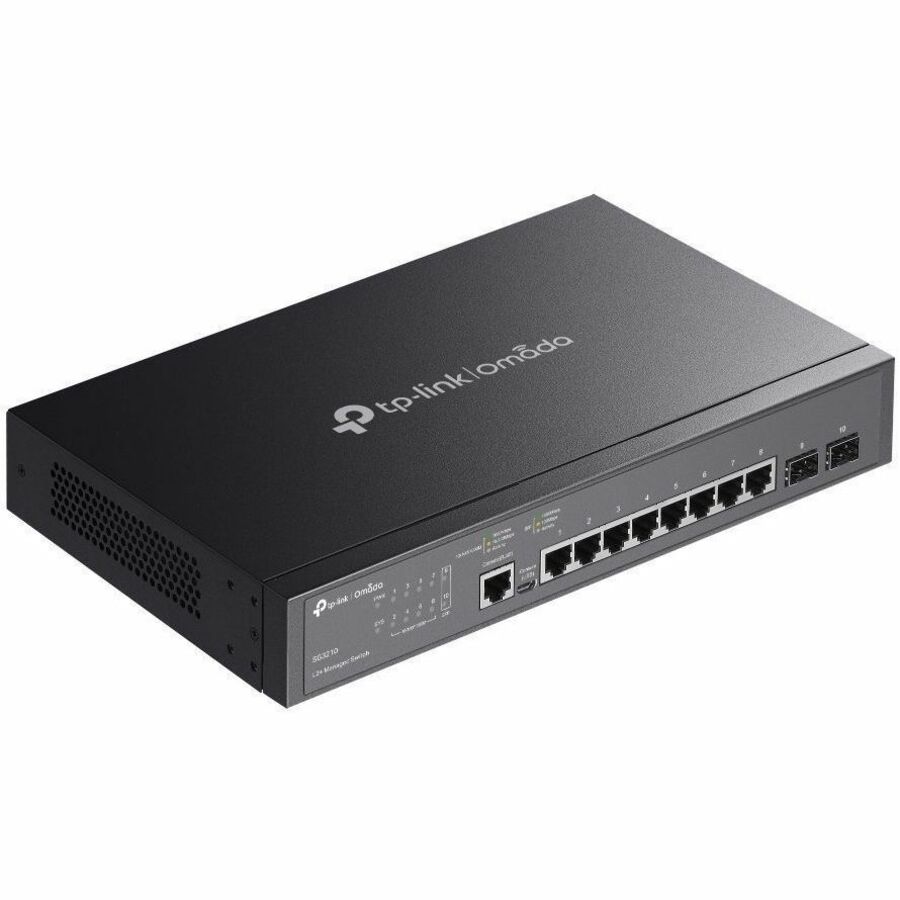

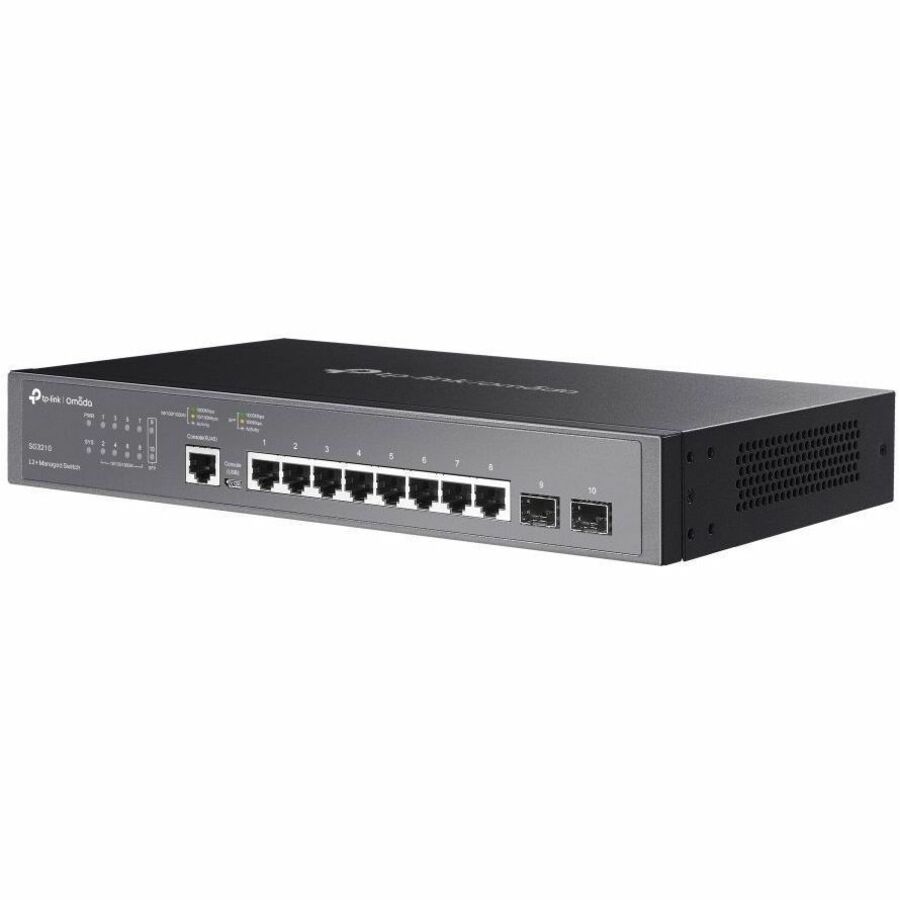

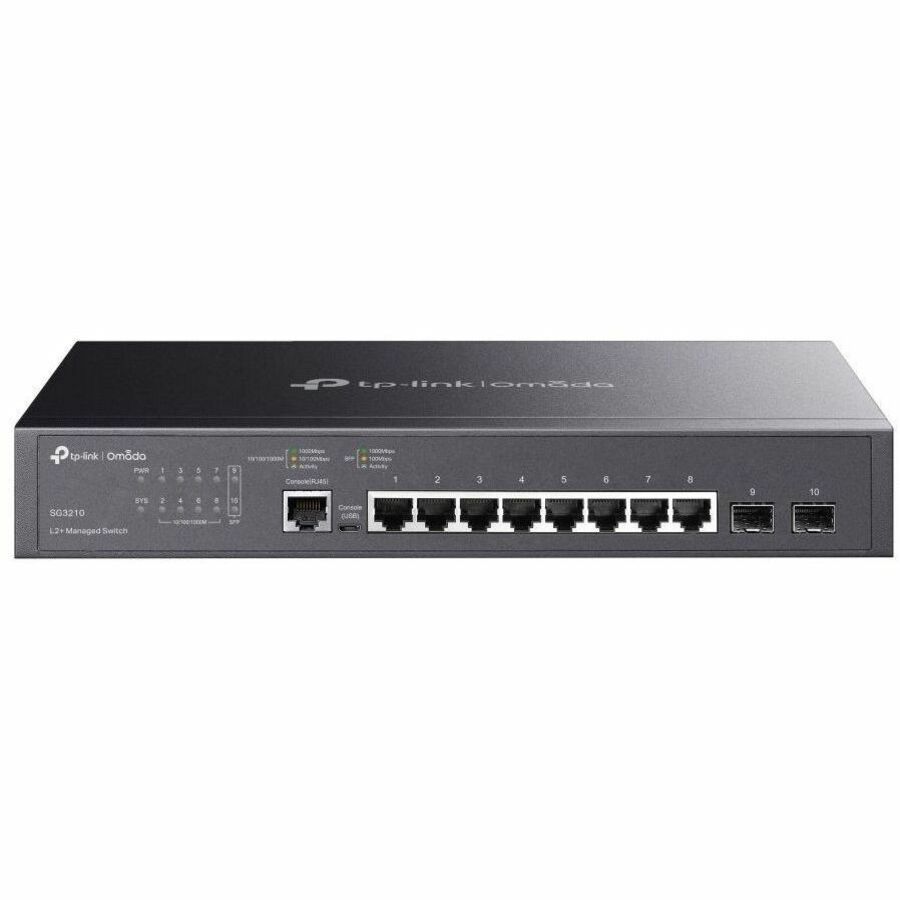

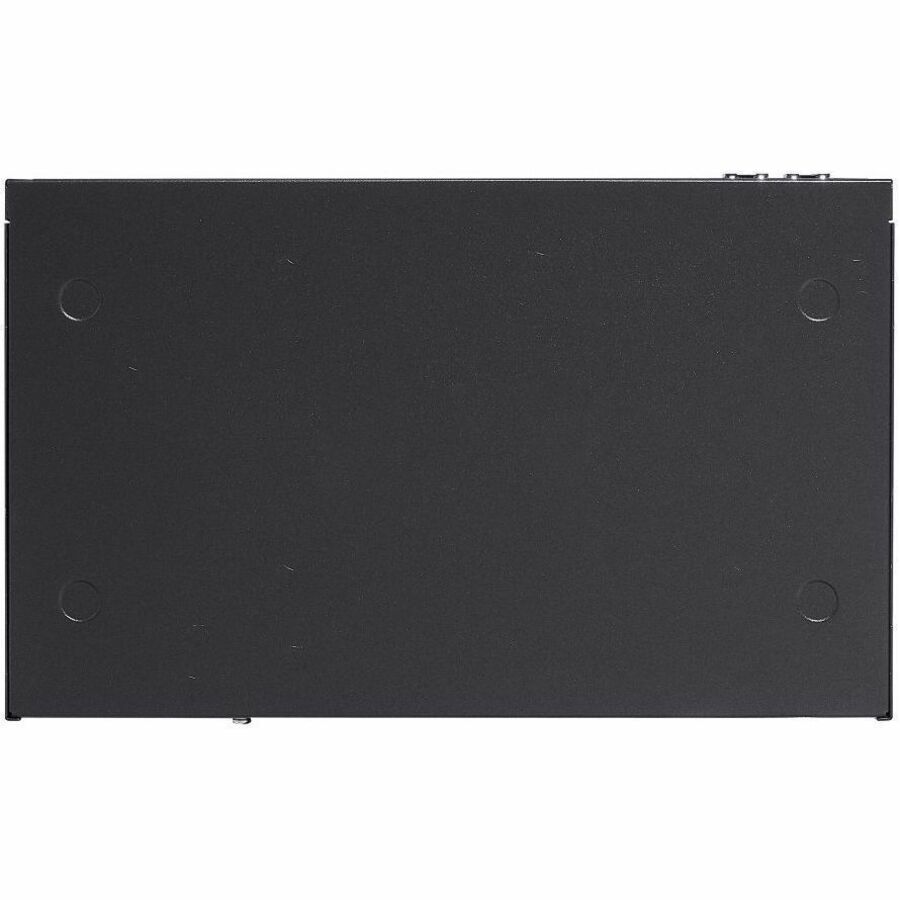

JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots

Reliable Gigabit Connections

• 8× Gigabit RJ45 Ports and
• 2× Gigabit SFP Ports

Centralized Cloud Management

• SDN Solutions Integration for
• a Highly Efficient Network

Advanced L2+ Features

• L2/L3/L4 QoS, ACL,
• Static Routing and More

Abundant Secure Strategies

• LAN Area Investment Protection

Software Defined Networking (SDN) with Cloud Access

Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

• Hassle-Free Cloud orOn-Premises Controllers
• Multi-Site Cloud Management
• Zero-Touch Provisioning (ZTP)
• Intelligent Monitoring

Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features

A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

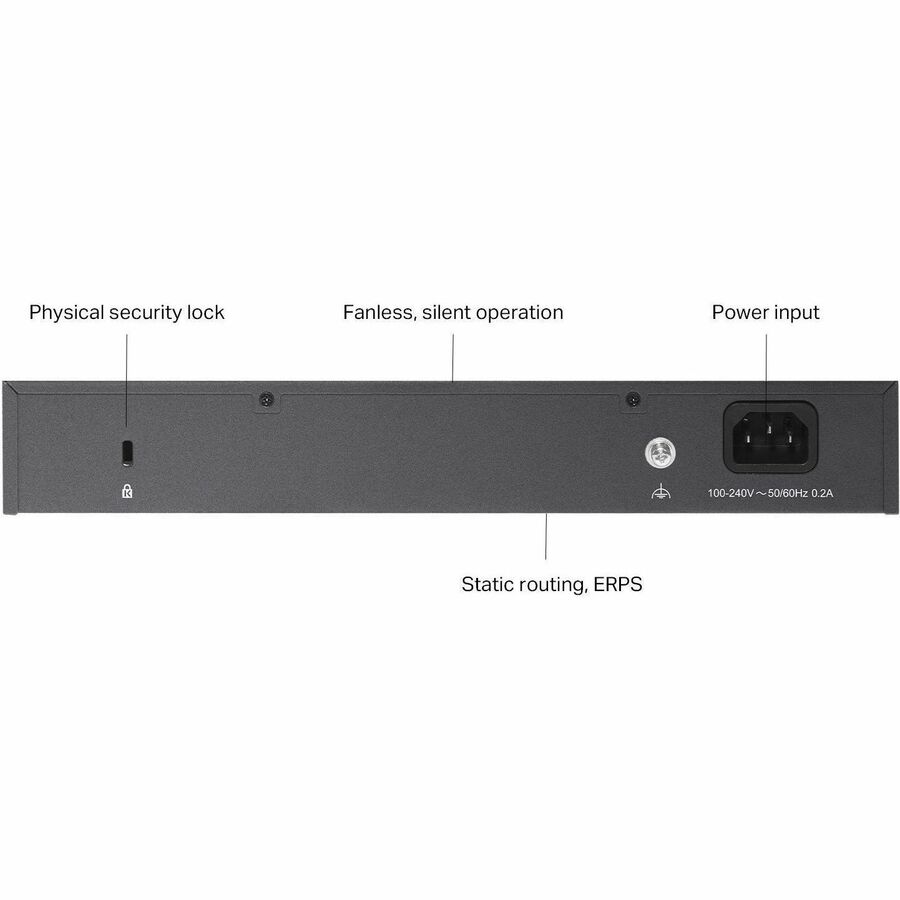

• Fanless
• Access Control List
• Loopback Detection
• DHCP Relay
• DHCP Snooping
• Remote Monitoring (RMON)
• Zero-Touch Provisioning (ZTP)
• Remote/Cloud Management
• Intelligent monitoring
• Broadcast Storm Control
• Strict Priority Queuing (SPQ)
• Bandwidth Control
• Support Dual Image

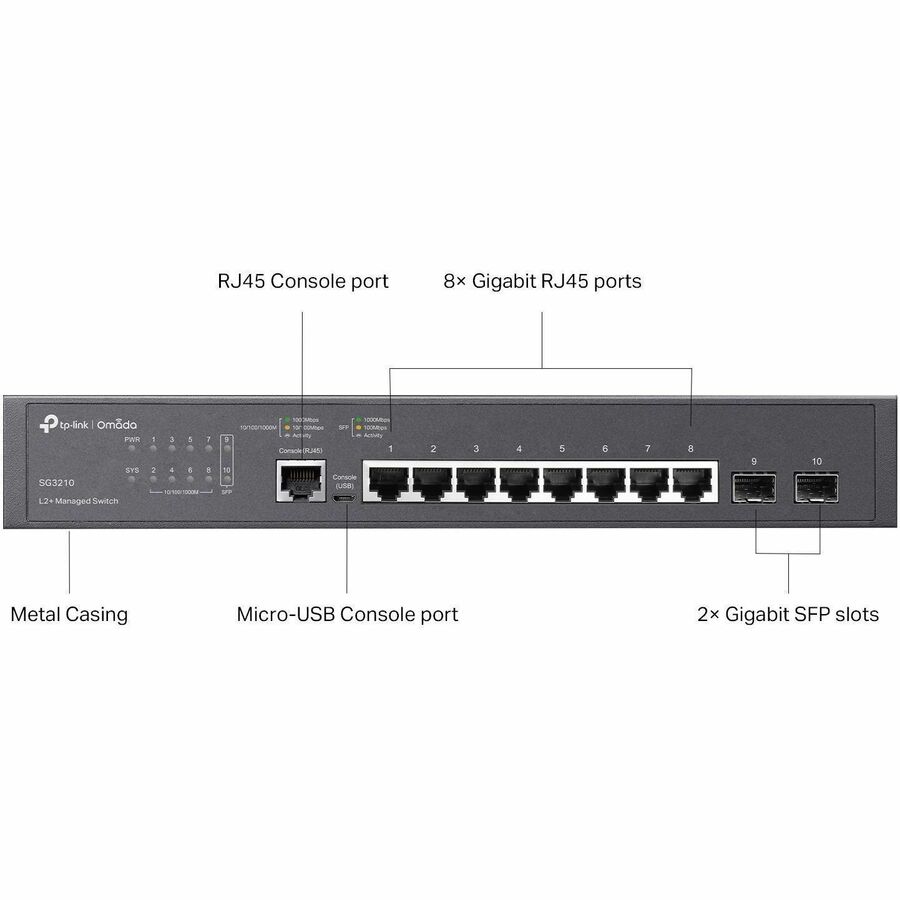

• 8 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot
• 1 × RJ-45 Console Port
• 1 × Micro-USB Console Port

• Twisted Pair
• Optical Fiber

• 10/100/1000Base-T
• 1000Base-X

• IEEE 802.1x
• IEEE 802.3x
• IEEE 802.1Q
• IEEE 802.3ah
• IEEE 802.1ab
• IEEE 802.1p
• IEEE 802.3ad
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.1w

• HTTP
• HTTPs

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

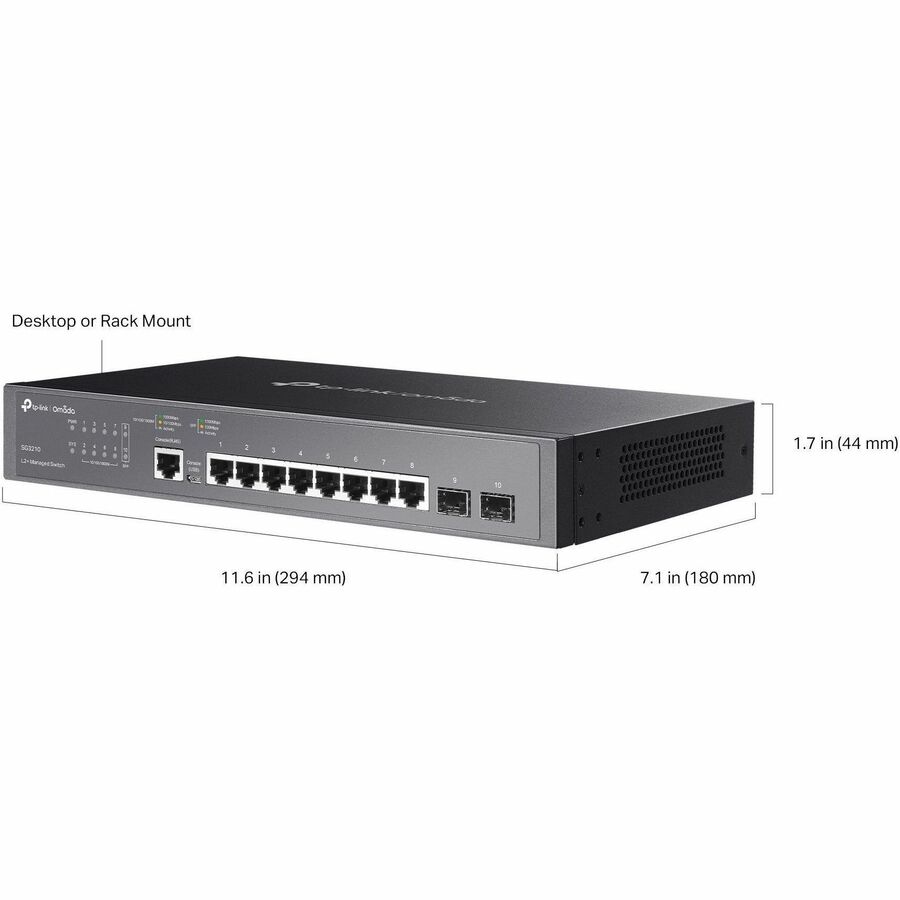

• Rack-mountable
• Desktop

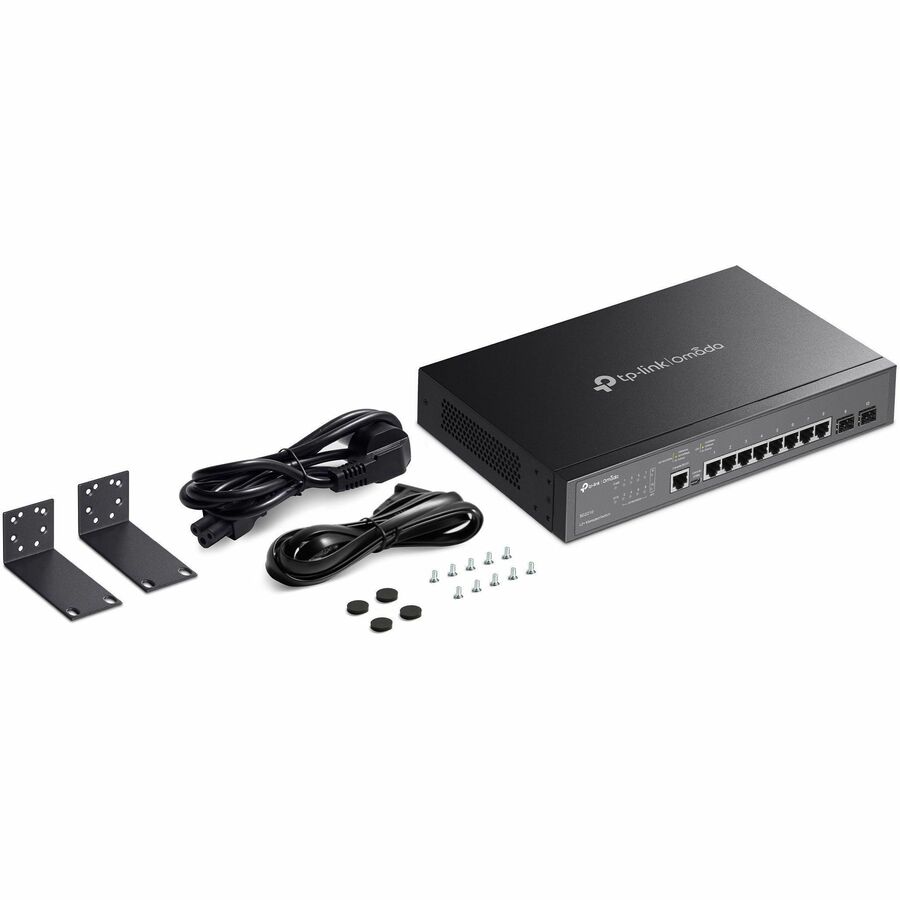

• JetStream TL-SG3210 Ethernet Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

• Network
• Traffic
• Security
• Education
• Retail
• Office
• Enterprise
• Campus
