OMADA GIG WDM MEDIA CONVERTER OMADA GIGABIT WDM MEDIA CONVERTER

by
TP-LINK SYSTEMS INC.
PCN#
NK5121
MFG#
FC311A-20
$31.03
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1 x Network (RJ
  • 45)
  • 1 x SC Ports

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.

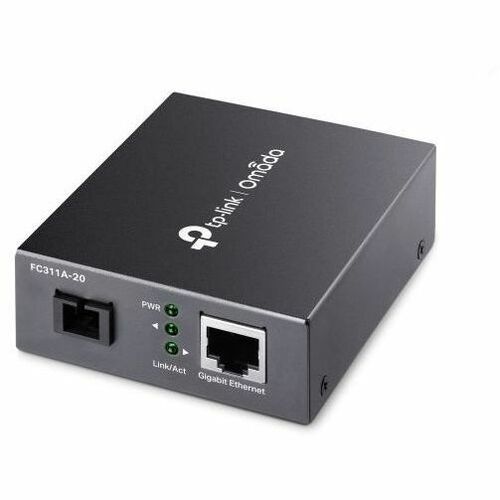

TP-Link Gigabit WDM Media Converter
Tech Specs
Specifications

Manufacturer

TP-LINK Technologies Co., Ltd

Manufacturer Part Number

FC311A20

Manufacturer Website Address

http://www.tp-link.com/us

Brand Name

TP-Link

Product Model

FC311A-20

Product Name

Gigabit WDM Media Converter

Marketing Information

What This Product Does

TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works

TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.

Product Type

Transceiver/Media Converter
Interfaces/Ports

Total Number of Ports

2

Network (RJ-45)

Yes

Number of Network (RJ-45) Ports

1

Number of SC Ports

1

SC Port Type

Duplex
Media & Performance

Media Type Supported

  • Twisted Pair
  • Optical Fiber

Fiber Mode Supported

Single-mode

Fiber Optic Wavelength

  • 1550 nm
  • 1310 nm

Maximum Data Transfer Rate

1000 Mbit/s

Maximum Distance Supported

20 km

Fiber Optic Cable Core/Cladding Specification

9/125 µm
Network & Communication

Ethernet Technology

Gigabit Ethernet

Network Technology

  • 10/100/1000Base-T
  • 100Base-TX
  • 1000Base-TX
Physical Characteristics

Form Factor

  • Standalone
  • Rack-mountable

Height

1.1"

Width

3.7"

Depth

2.9"
Miscellaneous

Package Contents

  • Gigabit WDM Media Converter
  • Power Adapter
  • Installation Guide

Application/Usage

  • Network
  • Building
  • Surveillance System
  • Industrial Automation Equipment
