THINKSYSTEM SR645 7303 32GB

Name: THINKSYSTEM SR645 7303 32GB
Brand: TOPSELLER LENOVO DCG BTO SERVER
SKU: JN5175
Price: 4507.72 USD
Availability: InStock

TOPSELLER LENOVO DCG BTO SERVER

PCN#

JN5175

MFG#

7D2XA060NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$4,507.72

Extended & Accidental Damage Protection Plans Available Details

2-Year $331.99

3-Year $446.99

Free Shipping

Estimated Shipment:

Product Highlights:

AMD Chip
2 Processor Support
8 TB RAM Support
TruDDR4
0, 1, 5, 6, 10, 50, 60 RAID Levels Up to 16 MB Graphic Card
Gigabit Ethernet
8 x Total Bay(s)
8 x SFF Bay(s)
Hot Swappable Bays
2 x 1100 W
Redundant Power Supply

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationThree-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).

Shipping Weight: 40 lbs.

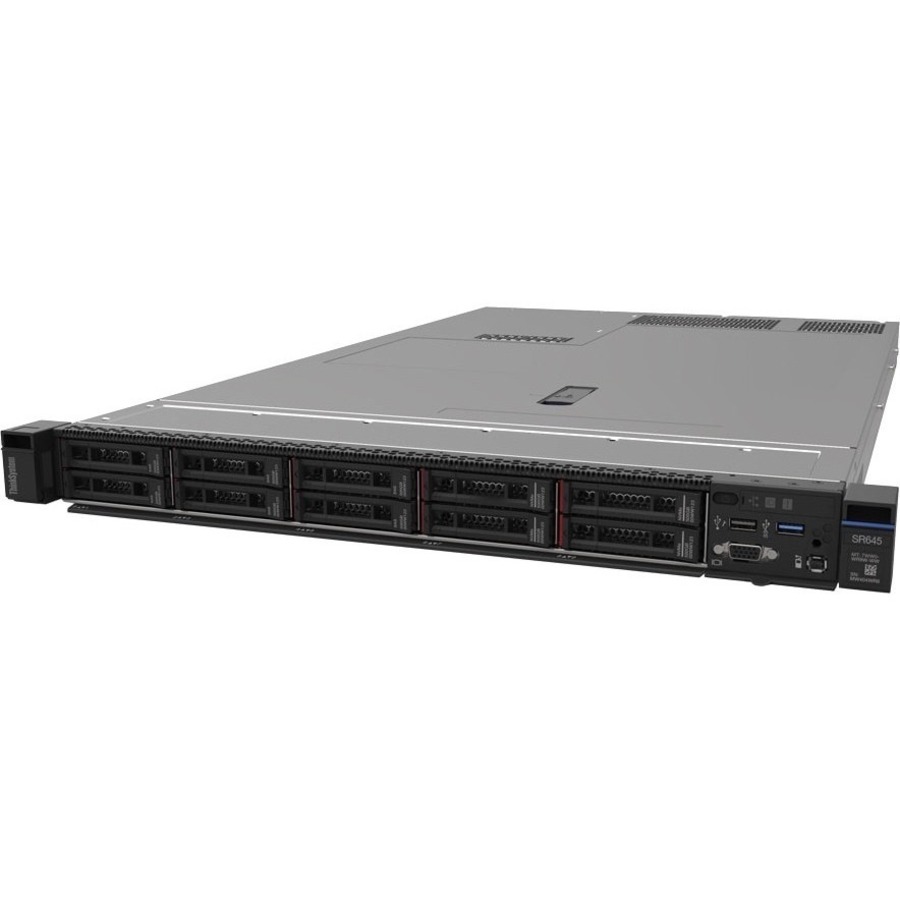

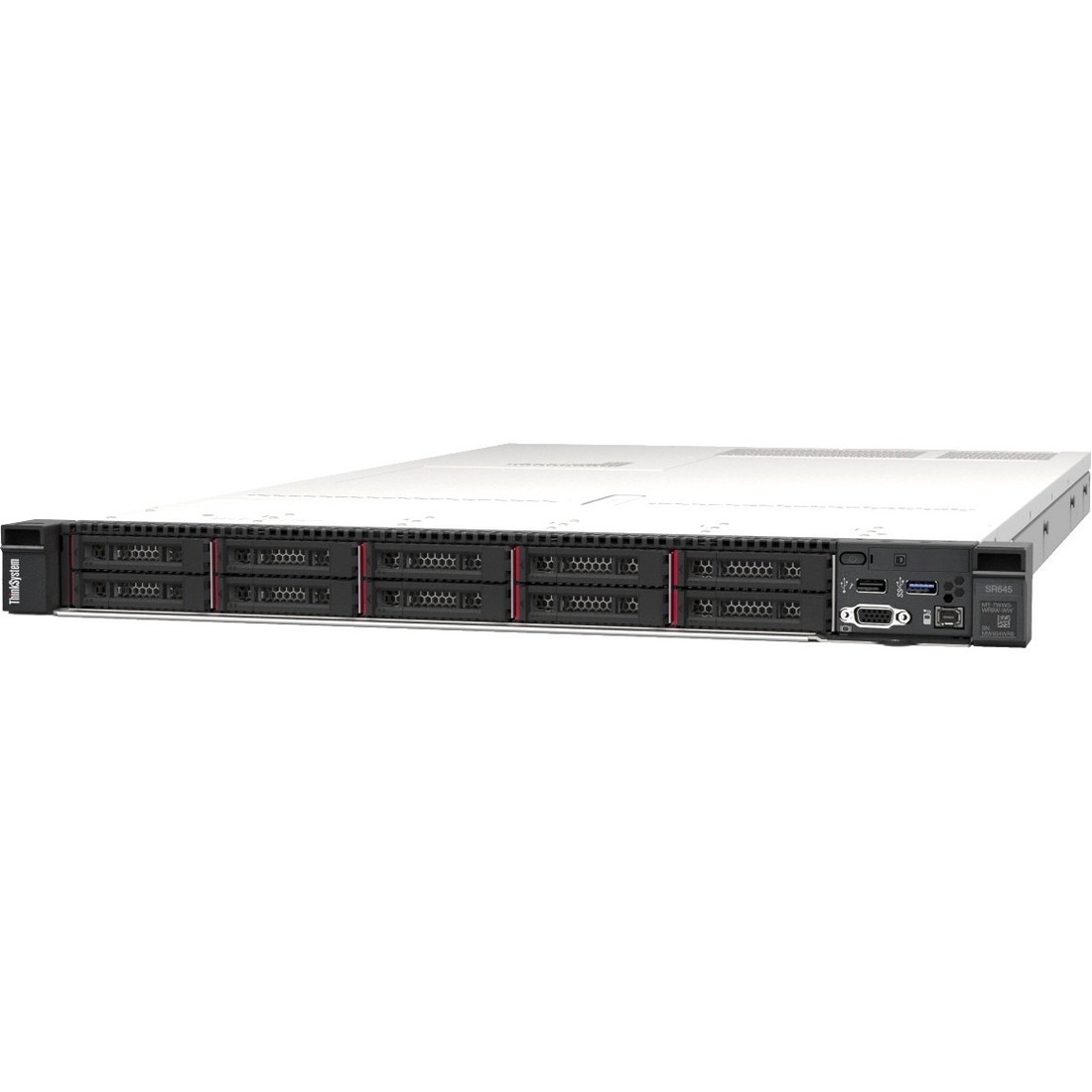

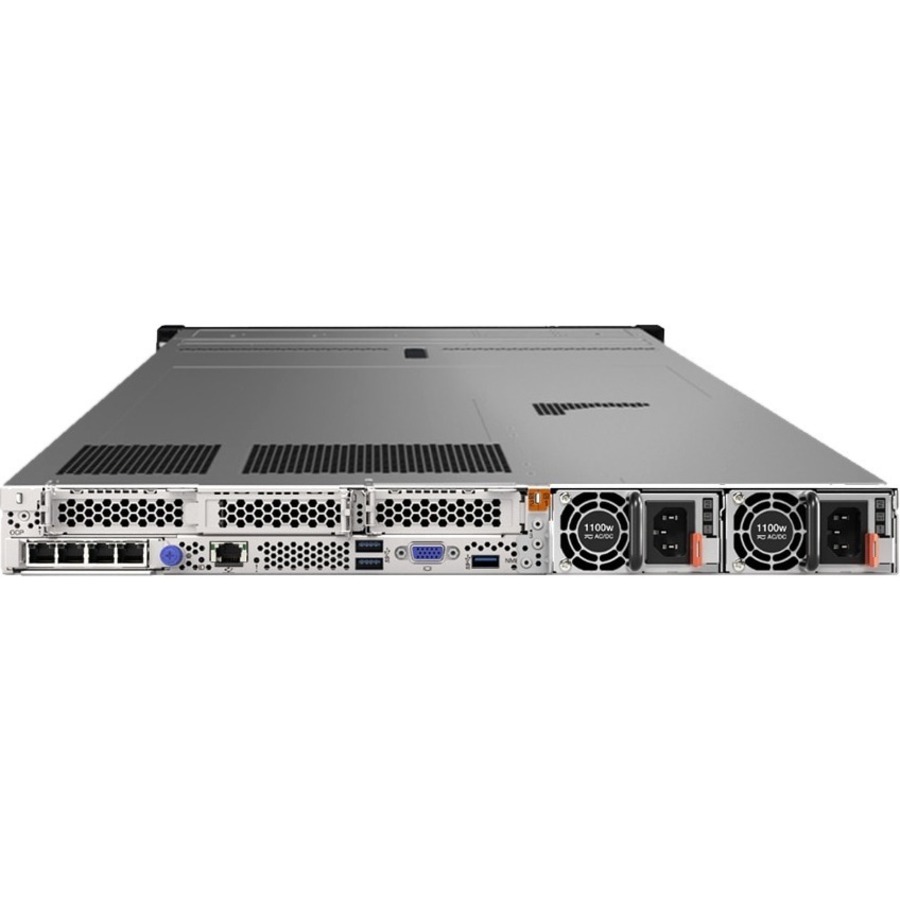

Lenovo ThinkSystem SR645 7D2XA060NA 1U Rack Server - 1 EPYC 7303 2.40 GHz - 32 GB RAM - 1.92 TB SSD - (1 x 1.92TB) SSD Configuration - 12Gb/s SAS, Serial ATA/600 Controller

Overview

Tech Specs

Specifications

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7D2XA060NA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	SR645
Product Model	7D2XA060NA
Product Name	ThinkSystem SR645 7D2XA060NA Server
Marketing Information	The Lenovo ThinkSystem SR645 is a 2-socket 1U server that features the AMD EPYC 7002 "Rome" and AMD EPYC 7003 "Milan" families of processors. With up to 64 cores per processor and support for the new PCIe 4.0 standard for I/O, the SR645 offers the ultimate in two-socket server performance in a space-saving 1U form factor.
Product Type	Server

Processor

Number of Processors Supported	2
Number of Processors Installed	1
Processor Type	EPYC
Processor Generation	3rd Gen
Processor Model	7303
Processor Core	Hexadeca-core (16 Core)
Processor Speed	2.40 GHz
Cache	64 MB

Chipset

Chipset Manufacturer

AMD

Memory

Standard Memory	32 GB
Maximum Memory Supported	8 TB
Memory Technology	TruDDR4
Memory Clock Speed	3.20 GHz
Error Checking	ECC
Total Number of Memory Slots	32
Number of Occupied Memory Slots	1
Signal Processing	Registered (Buffered)

Storage

Number of Solid State Drives	1
Total Solid State Drive Capacity	1.92 TB
Solid State Drive Interface	Serial ATA/600
Solid State Drive Configuration	1 x 1.92TB

Controllers

Controller Type	12Gb/s SAS Serial ATA/600
Controller Model	930-8i
RAID Supported	Yes
RAID Levels	0, 1, 5, 6, 10, 50, 60

I/O Expansions

Number of Total Expansion Bays	8
Number of Internal 2.5" Bays	8
Number of SFF Bays	8
Hot Swappable Bays	Yes
Total Number of Expansion Slots	2
PCI Express Details	2x LP Gen4

Display & Graphics

Graphics Memory Capacity

16 MB

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports	6
Number of USB 2.0 Ports	1
Network (RJ-45)	Yes
VGA	Yes
Number of VGA Ports	2
Remote Management	Yes
Remote Management Controller	XClarity Controller (XCC) Enterpise

Operating System

Operating System Supported

Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3
Red Hat Enterprise Linux 8.4
Red Hat Enterprise Linux 8.5
Red Hat Enterprise Linux 8.6
Red Hat Enterprise Linux 8.7
Red Hat Enterprise Linux 9.0
Red Hat Enterprise Linux 9.1
SUSE Linux Enterprise Server 12 SP5
SUSE Linux Enterprise Server 15 SP2
SUSE Linux Enterprise Server 15 SP3
SUSE Linux Enterprise Server 15 SP4
SUSE Linux Enterprise Server 15 SP5
Red Hat Enterprise Linux 8.8
Red Hat Enterprise Linux 9.2
Ubuntu 22.04 LTS x64
Windows Server 2025
Red Hat Enterprise Linux 8.10
Red Hat Enterprise Linux 8.9
Red Hat Enterprise Linux 9.3
Red Hat Enterprise Linux 9.4
Ubuntu 24.04 LTS x64

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Plug/Connector Type	C13
Maximum Power Supply Wattage	1100 W
Redundant Power Supply	Yes
Hot Swappable Power Supply	Yes
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	17.3"
Depth	30.4"
Weight (Approximate)	44.53 lb

Miscellaneous

Package Contents	ThinkSystem SR645 7D2XA060NA Server Slide Rail Kit
Security Features	Chassis intrusion switch Power-on password Administrator's password Trusted Platform Module (TPM), supporting TPM 2.0
Energy Star	Yes
Energy Efficiency Certification	ENERGY STAR 3.0
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
