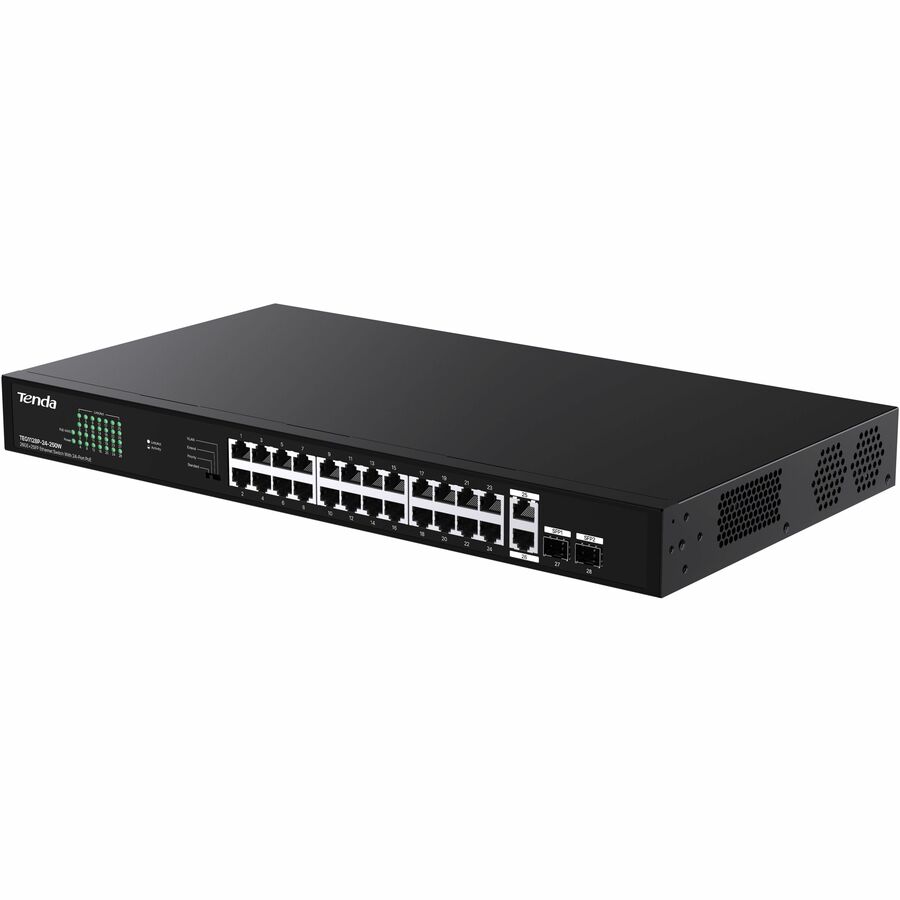

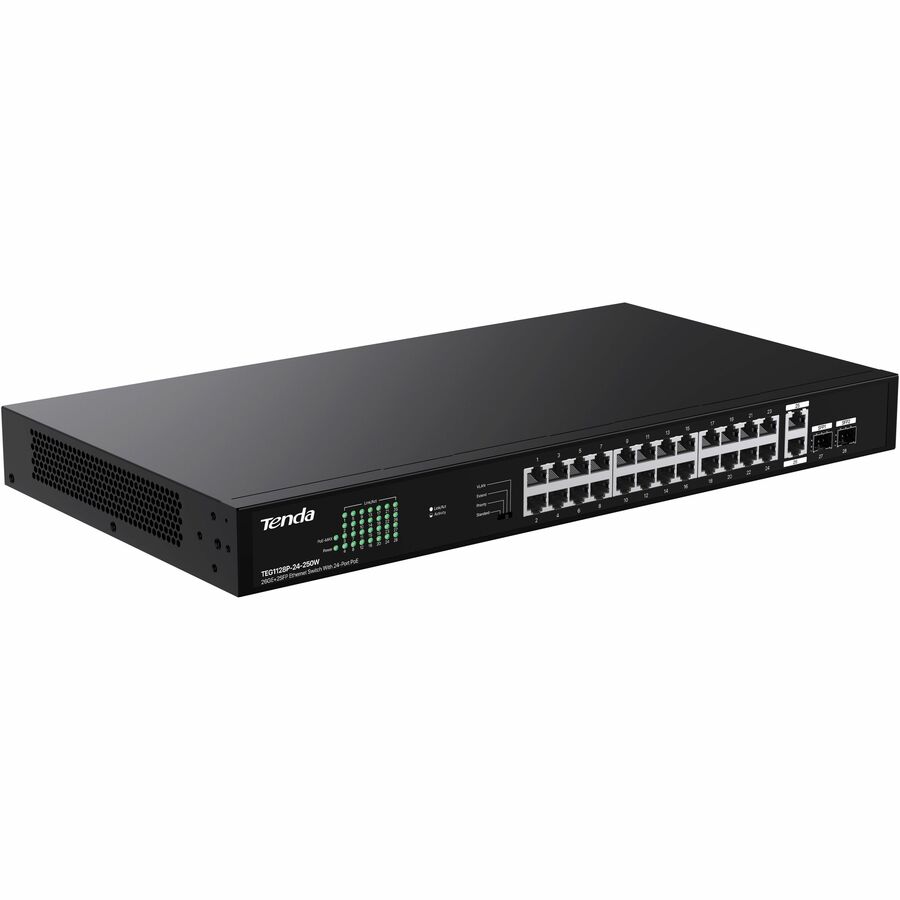

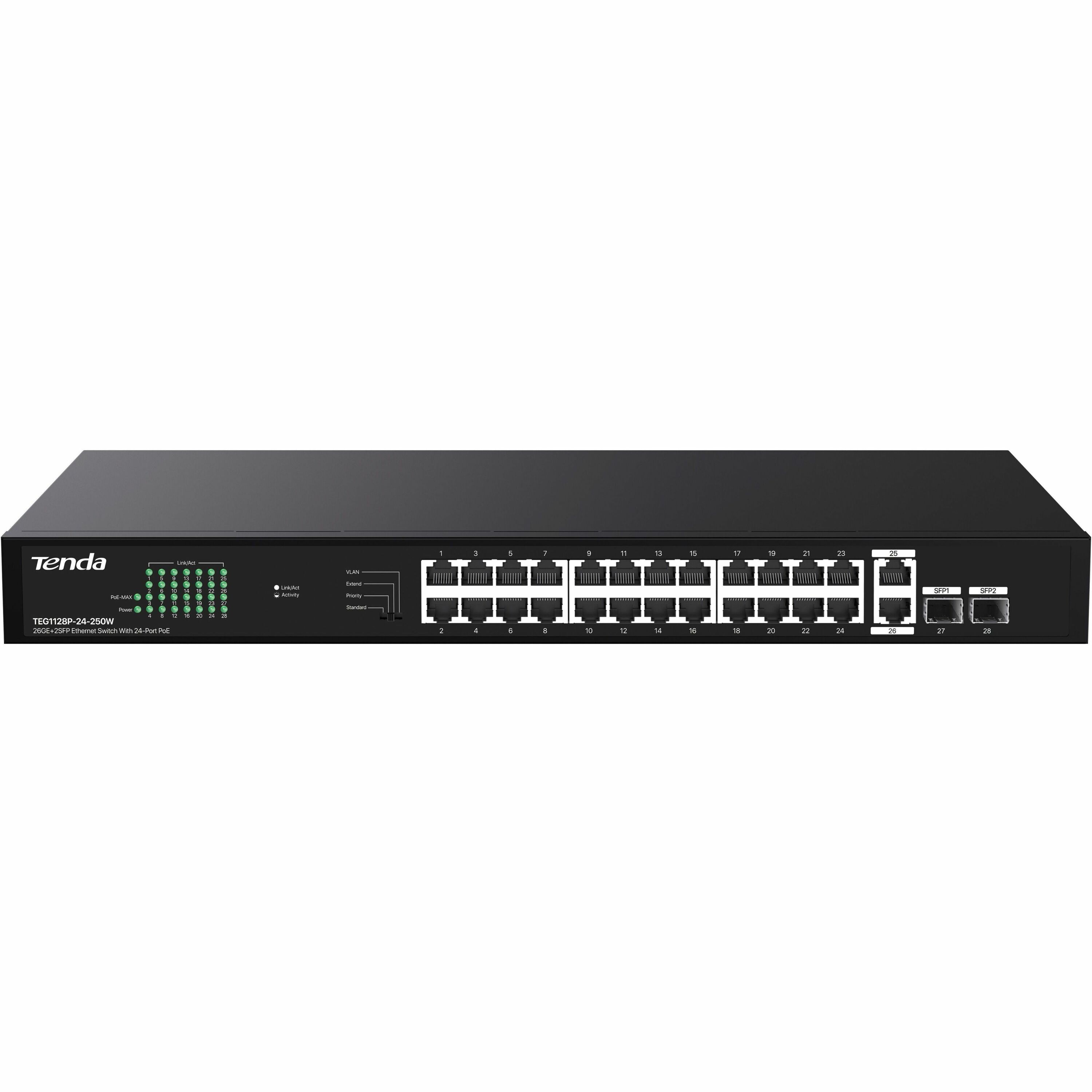

26GE+2SFP SWITCH 24-PORT POE .

High speed network transmission, Experience extreme smoothness

Full gigabit ports , 56 Gbps non-blocking line speed forwarding, mprove the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.

• Full gigabit ports
• 56 Gbps Switching capacity

GE and SFP Uplink Ports, Easier HD Monitoring

With two gigabit uplink port and two gigabit uplink optical fiber port, easily complete low-cost remote networking.

Smart PoE Power Supply, Stable Transmission

Providing 24 100/1000M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 250W, and of a single port is 30W. It can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.

4 Modes for More Scenarios, One-key To Change Smart and Easy

The switch supports 4 working modes of Standard, VLAN, Priority and Extend, realizing flexible network deployment in complex cases with lowered cost.

• Standard Mode
• Priority Mode
• Extend Mode
• VLAN Mode

Standard Mode

All ports can communicate with each other. It can be used as a common non-management PoE switch.

Priority Mode

Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.

Extend Mode

The maximum transmission distance of the 17-24 ports of the switch can reach 250 meters, and all ports can communicate with each other.

VLAN Mode

Ports 1 to 24 cannot communicate with each other, but can communicate with ports 25, 26, SFP1 (27), and SFP2 (28), which can be used to isolate broadcast storms and DHCP conflicts.

Standard 19-inch metal body design

Quick and easy Internet settings, simple enough for you to set up office networking,19-inch body design, and support desktop, wall and rack mounting.

6KV Excellent Lightning Protection

The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.

• 24 x 10/100/1000Base-T Gigabit Ethernet PoE RJ-45 Network Port
• 2 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port
• 2 x 100/1000Base-X SFP Expansion Slot

• Twisted Pair
• Optical Fiber

• 10/100/1000Base-T
• 100/1000Base-X

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

• Rack-mountable
• Wall Mountable

• Business
• Hotel
• School
• Video Surveillance
• Camera
• Wireless Access Point
• Network

• FCC
• CE
