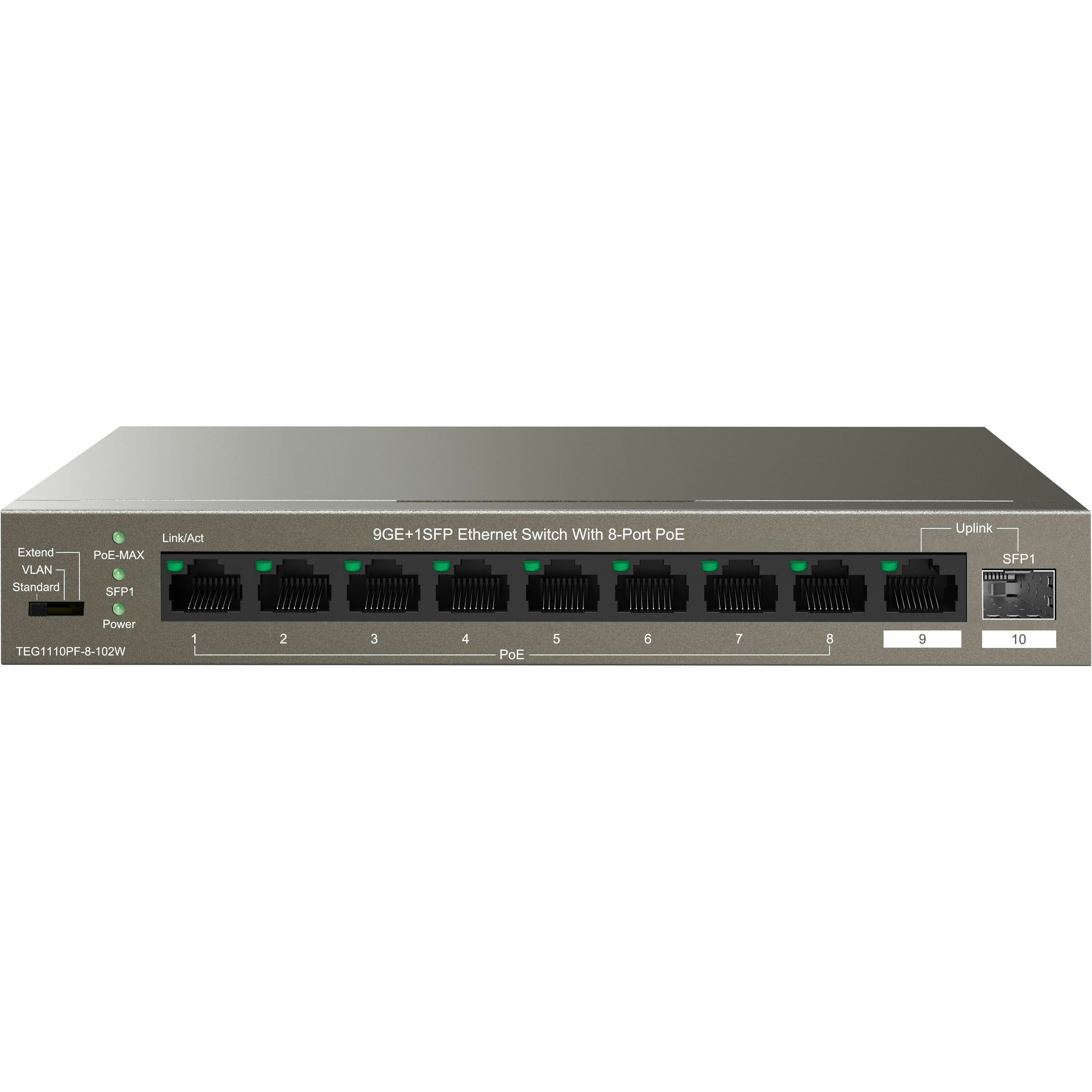

9GE+1SFP SWITCH 8-PORT POE .

The Faster, The Better Experience

Full gigabit ports, 20 Gbps non-blocking line speed forwarding, greatly improve the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.

Working with Tenda optical fiber module TEG311SM, the networking can be as far as 20KM.

• Full gigabit ports
• 20 Gbps non-blocking line speed forwarding

Smart PoE Power Supply, Stable Transmission

The chip provides intelligent power management function. When the power supply exceeds the rated power of the PoE switch (92W), the low-priority port is automatically powered off to avoid overload and prolong the service life of the PoE switch.

• Smart PoE Power Supply
• Intelligent Power Management

GE and SFP Uplink Ports, Easier HD Monitoring With a gigabit uplink port and a gigabit uplink optical fiber port, easily complete low-cost remote networking.

3 Modes For More Scenarios, One-key To Change Smart And Easy

The switch supports 3 working modes of Standard, VLAN and Extend, realizing flexible network deployment in complex cases with lowered cost.

• Standard
• VLAN Mode
• Extend

Mode 1 : Standard Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.

Mode 2 : VLAN In this mode, ports 1 - 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storms.

Mode 3 : Extend In this mode, all ports can communicate with each other, and the transmission distance of 1-8 ports can be extended to 250m.

6KV Professional Lightning Protection Design, Fearless Of Thunderstorm Weather

The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.

• 6KV Professional Lightning Protection

• 8 x 10/100/1000Base-T Gigabit Ethernet PoE RJ-45 Network Port
• 1 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port
• 1 x 100/1000Base-X Gigabit Ethernet SFP Expansion Slot

• Twisted Pair
• Optical Fiber

• 10/100/1000Base-T
• 100/1000Base-X

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

• Desktop
• Wall Mountable

• Network
• Business
• Hotel
• Restaurant
• Wireless Access Point
• School

• FCC
• CE
• CCC
