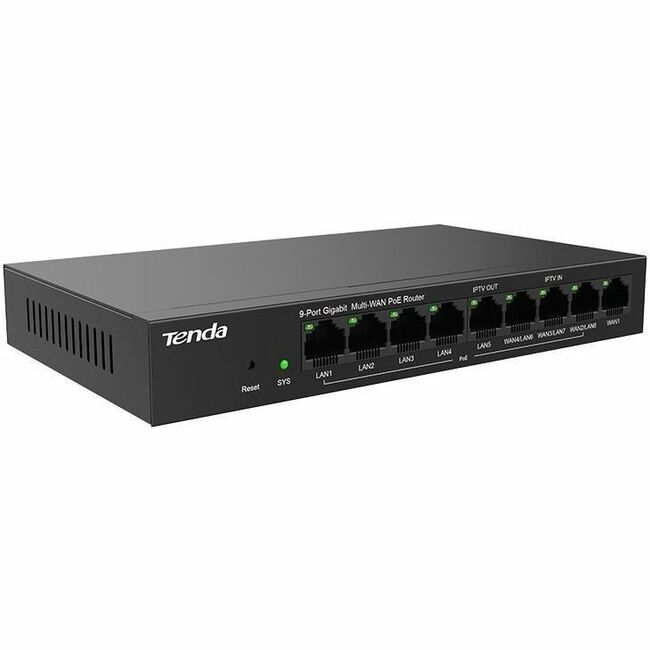

9 PORT GIGABIT POE ROUTER .

Ultra-Small Body, Fit for All Kinds of Information/Weak Current BoxesBased on the design of big house type and enterprise application, the body has been made smaller. It is suitable for all kinds of information and weak current boxes. Two ModesSupport Router Mode and Controller Mode. It can manage 128 APs in Router Mode and 256 APs in Controller Mode. Automatically discover and manage Tenda APs, as well as centrally configure and manage them. It can work with 86-type in-wall and all kinds of ceiling APs. Easy to install, with no configuration required. Plug and play. High Power OutputLAN ports support up to standard 8-port PoE power supply, 30W per port, and the power budget is 95W. It doesn't need extra power, and the wiring is simple and convenient. Gigabit High SpeedWith professional network processor, it supports forwarding acceleration, 1000M bandwidth, up to 4 gigabit WAN ports and 8 gigabit LAN ports. Meanwhile, it is able to connect multiple broadband from different operators. Easily handle bandwith access of all rates, and make full use of bandwidth performance. 1 WAN Port+3 Interchangeable WAN/LAN PortsSupport up to 4 WAN ports and broadband lines to connect, doubling the network speed. Based on load balancing, big data packet and key applications, it intelligently chooses the fastest communication path. Millesecond-Grade RoamingG0-8G-PoE supports fast roaming. Working with Tende AP 802.11kvr roaminng protocol, WiFi seamless roaming speed is below 50ms. When playing while walking from offices to offices or from downstairs to upstairs, your phone still enjoys high speed network all the time. APP Remote Management and MaintenanceLog in Tenda WiFi APP, everything is on your hands. You can do network troubleshooting at home, and there is no need to go to the scene.

• Standard PoE Power Supply
• Up to 30W per Port
• Smart Bandwidth Control
• Customized URL Database

Product TypeEthernet SwitchTechnical InformationFeatures

• Reset Button
• Plug and Play

Interfaces/PortsTotal Number of Network Ports9Network (RJ-45)YesPort/Expansion Slot Details

• 8 × Gigabit Ethernet PoE+ RJ-45 Network Port
• 1 x Gigabit Ethernet RJ-45 Network Port

Media & PerformanceMedia Type SupportedTwisted PairEthernet TechnologyGigabit EthernetNetwork Technology1000Base-TMaximum Data Transfer Rate125 MB/sNetwork & CommunicationNetworking Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at

Power DescriptionPoE (RJ-45) PortYesPoE Budget95 WInput Voltage51 V DCPower Source

• DC
• Power Adapter
• PoE+

Power Consumption7 WPhysical CharacteristicsProduct MaterialGalvanized Cold Rolled Steel (SGCC)Form Factor

• Desktop
• Wall Mountable
• Compact

Height1"Width4.1"Length7"Weight (Approximate)14.50 ozMiscellaneousApplication/Usage

• Wireless Access Point
• IP Camera
• IP Phone
• Small Business
• Printer
• Laptop
• Enterprise
• Network
• Home Network
• Office

Certifications & Standards

• CE
• FCC

Environmental ComplianceRestriction of Hazardous Substances (RoHS)
