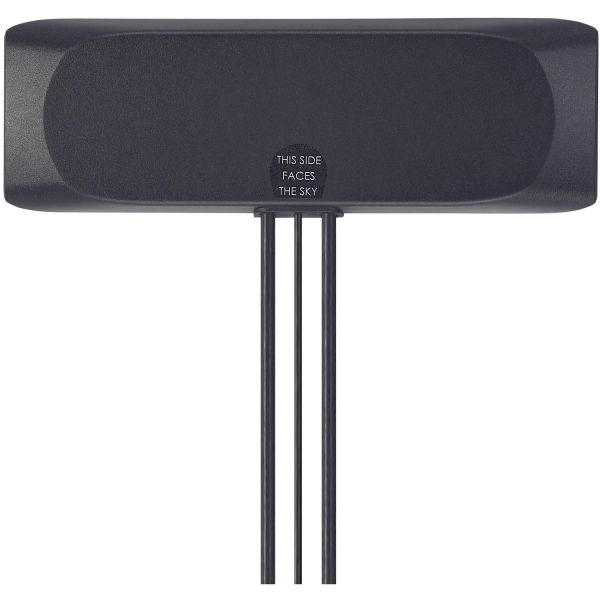

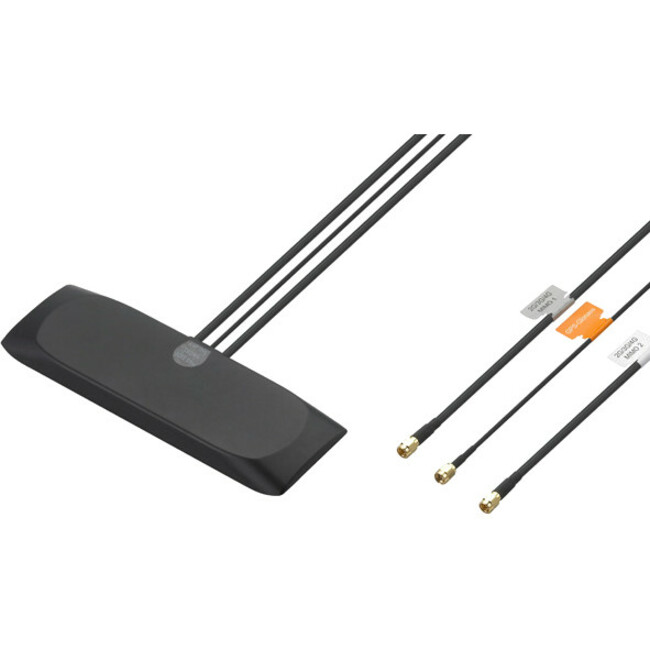

Taoglas Genesis MA240 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G 2xMIMO-Adhesive Mount Antenna

Name: Taoglas Genesis MA240 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G 2xMIMO-Adhesive Mount Antenna
Brand: TAOGLAS
SKU: 9V7165
Price: 88.52 USD
Availability: InStock

TAOGLAS

PCN#

9V7165

MFG#

MA240.LBI.001

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$88.52

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Free Shipping

Estimated Shipment:

Product Highlights:

698 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3410 MHz to 3490 MHz
GPS, GLONASS, Cellular Network
Black
Adhesive Mount
Omni
directional
SMA Connector

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 1 lbs.

Taoglas Genesis MA240 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G 2xMIMO-Adhesive Mount Antenna

Overview

Tech Specs

Specifications

Manufacturer	Taoglas
Manufacturer Part Number	MA240.LBI.001
Manufacturer Website Address	http://www.taoglas.com
Brand Name	Taoglas
Product Line	Genesis
Product Model	MA240
Product Name	Genesis MA240 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G 2xMIMO-Adhesive Mount Antenna
Marketing Information	The MA.240 4G Genesis antenna is an omni-directional, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications worldwide. It is designed to be mounted directly on glass or plastic in the interior of vehicles. Typical applications - HD Video over LTE - First Responder and Emergency Services - Automotive Vehicle Tracking and Telematics This unique antenna delivers powerful dual antenna technology for worldwide 4G LTE bands at 700MHz / 800MHz / 1700MHz / 1800MHz / 2600MHz, plus GPS/GLONASS/GALILEO for next generation location accuracy. 4G wireless applications demand high speed data uplink and downlink. High efficiency and high gain antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two LTE antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller LTE antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all. The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments. Finally, if your device requires USA LTE certification with an external antenna then the MA240 is the ideal solution to pass approvals. Cable length and connector types are customizable. Contact your regional Taoglas sales office for support.
Product Type	Antenna
Packaged Quantity	1

Technical Information

Directivity	Omni-directional
Operating Frequency Range	698 MHz to 803 MHz 824 MHz to 894 MHz 880 MHz to 960 MHz 1710 MHz to 1880 MHz 1850 MHz to 1990 MHz 1920 MHz to 2170 MHz 2490 MHz to 2690 MHz 3410 MHz to 3490 MHz

Interfaces/Ports

Connector Type

SMA

Physical Characteristics

Product Color	Black
Height	0.49"
Width	2.28"
Depth	8.10"
Form Factor	Adhesive Mount
Weight (Approximate)	8.80 oz

Miscellaneous

Application/Usage	GPS GLONASS Cellular Network
Environmentally Friendly	Yes
Environmental Certification	RoHS
Country of Origin	Taiwan

Warranty

Limited Warranty

1 Year
