Synology RackStation RS3621RPxs SAN/NAS Storage System

Name: Synology RackStation RS3621RPxs SAN/NAS Storage System
Brand: SYNOLOGY
SKU: 8WA945
Price: 3614.79 USD
Availability: InStock

SYNOLOGY

PCN#

8WA945

MFG#

RS3621RPXS

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,614.79

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel Xeon D
1531 Hexa
core (6 Core) 2.20 GHz
12 x HDD Supported
0 x HDD Installed
12 x SSD Supported
0 x SSD Installed
8 GB RAM DDR4 SDRAM
Serial ATA Controller
RAID Supported
0, 1, 5, 6, 10, Basic, JBOD, RAID F1 RAID Levels
12 x Total Bays
12 x 2.5"/3.5" Bay
2 x Total Slot(s)
Gigabit Ethernet
2 USB Port(s)
Network (RJ
45)
DiskStation Manager
CIFS, AFP, NFS, FTP, WEBDAV, SMB 1.0, SMB 2.0, SMB 3.0, NFSv3, NFSv4, NFSv4.1, ...
2U
Rack
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 43 lbs.

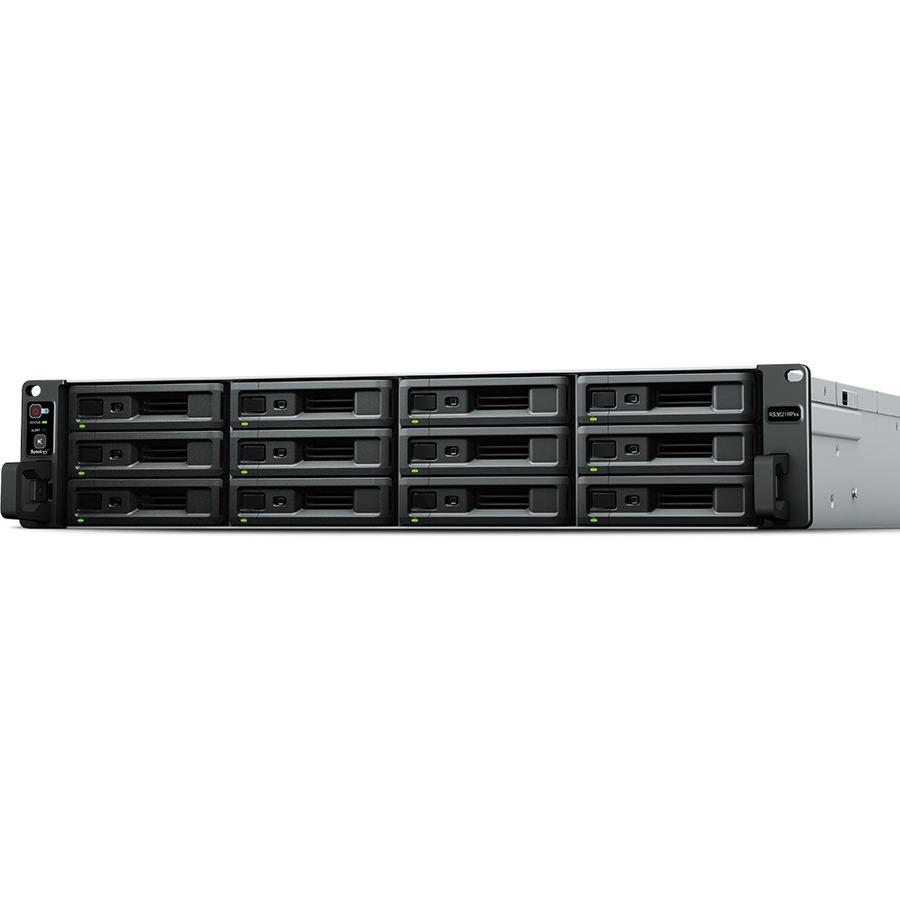

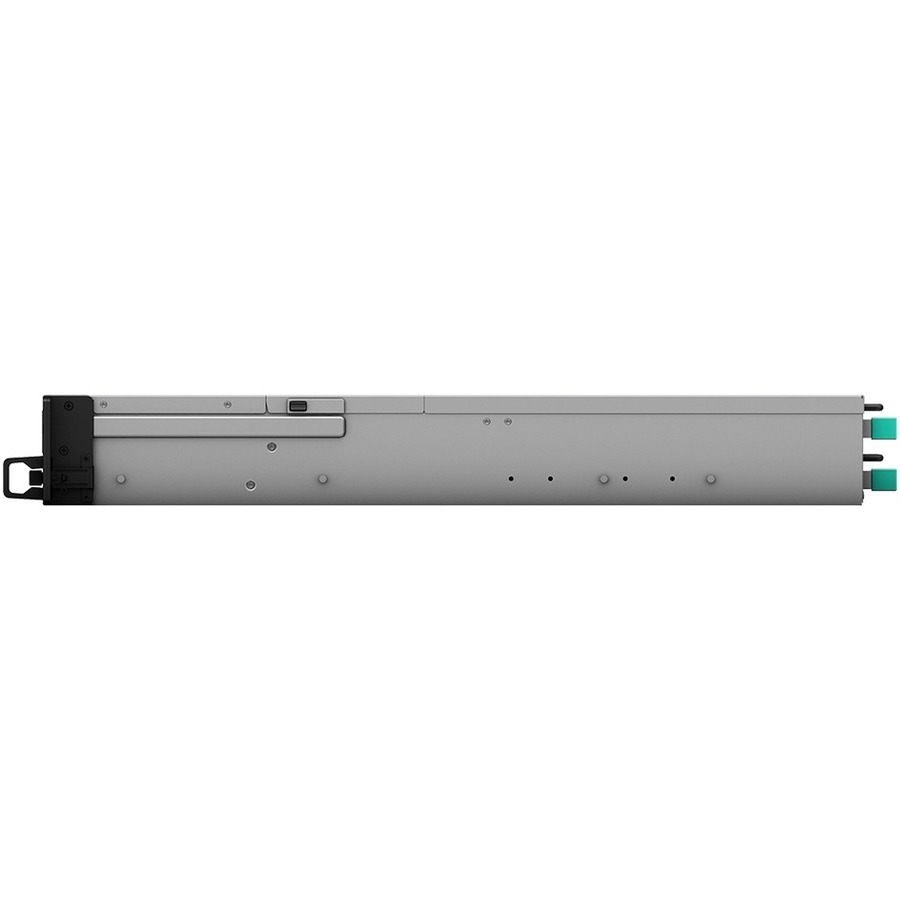

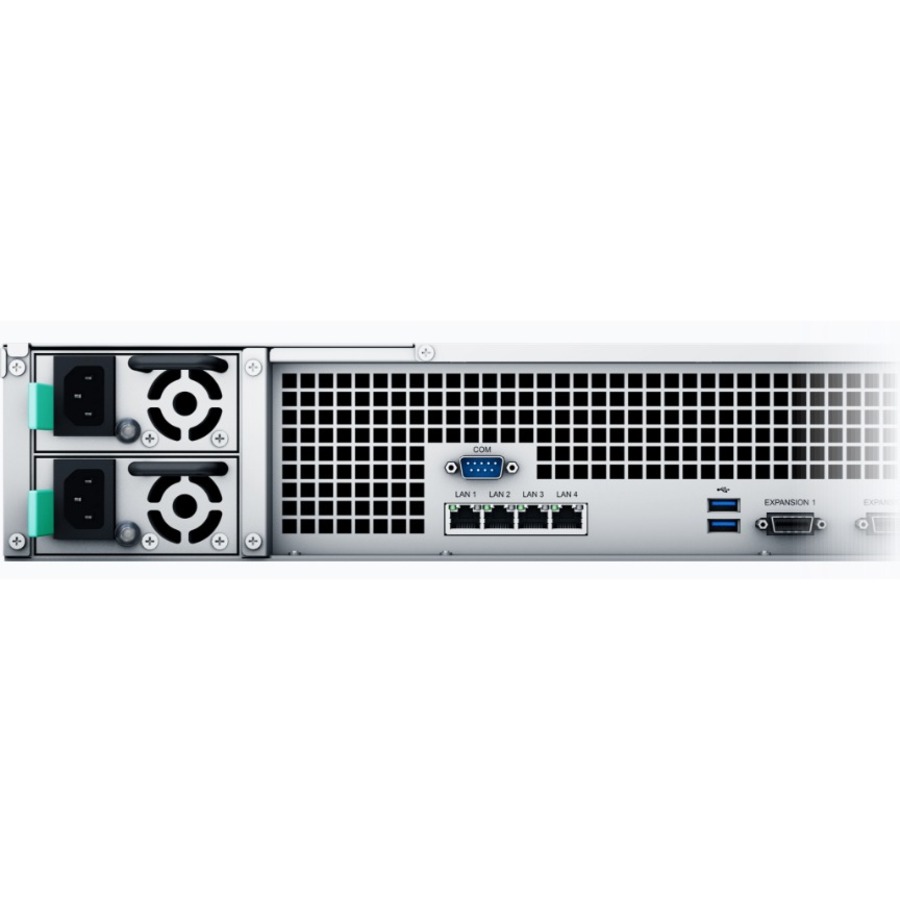

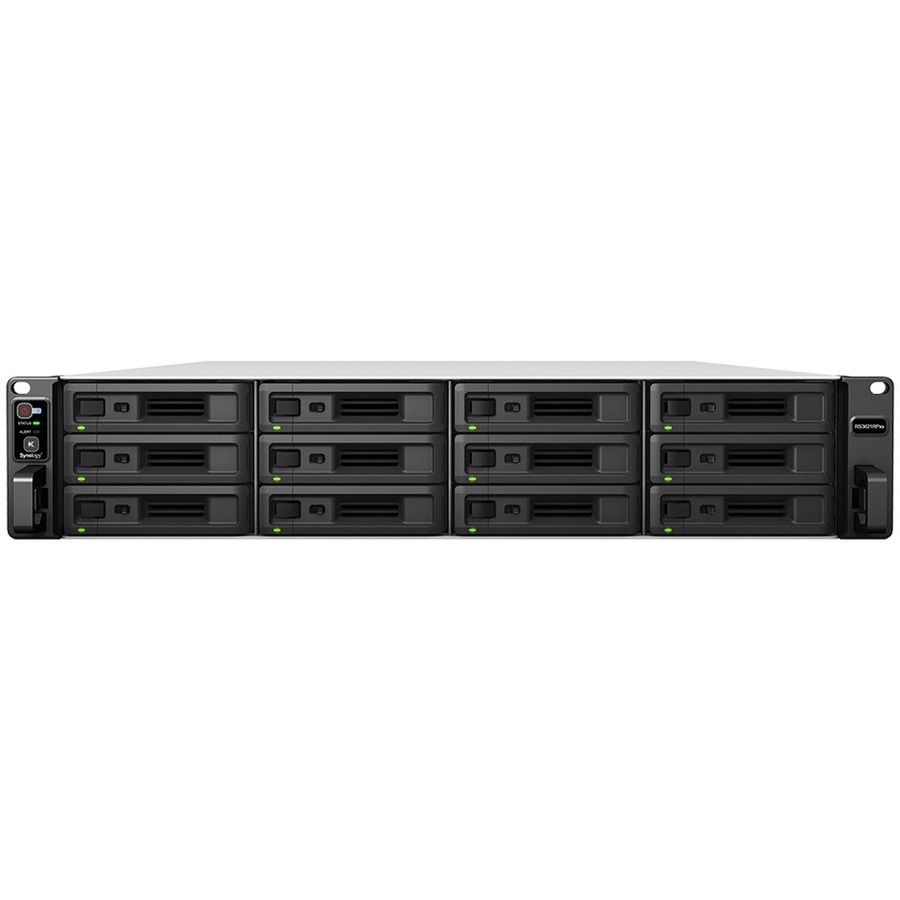

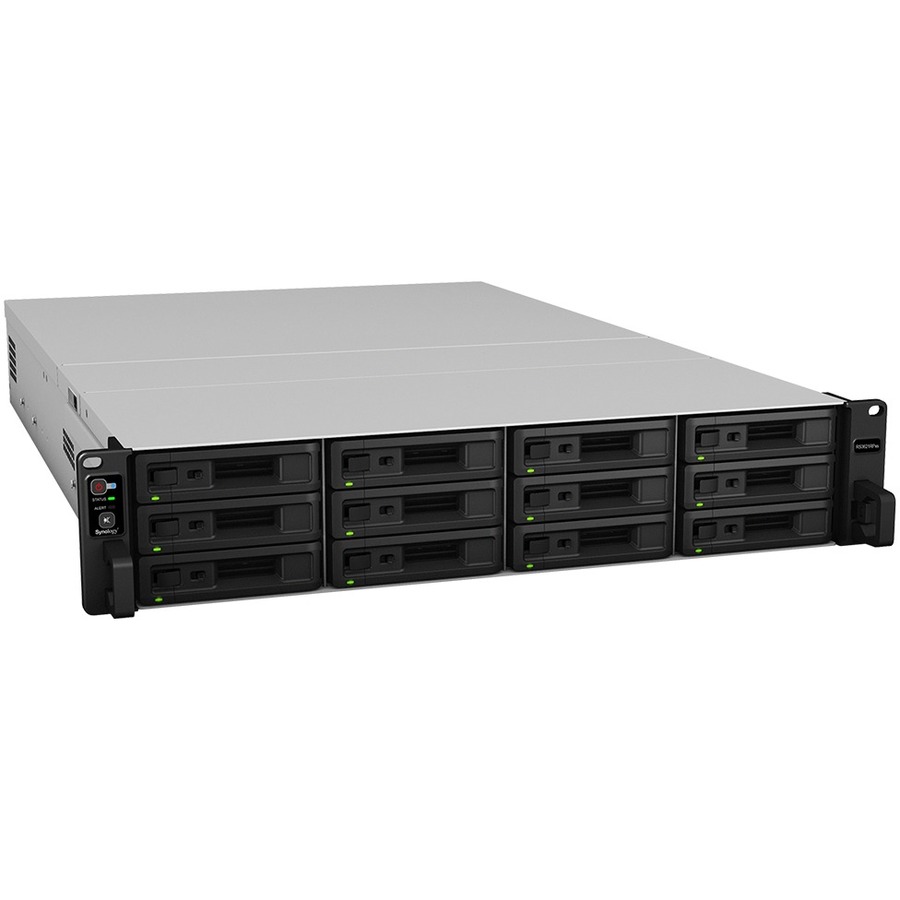

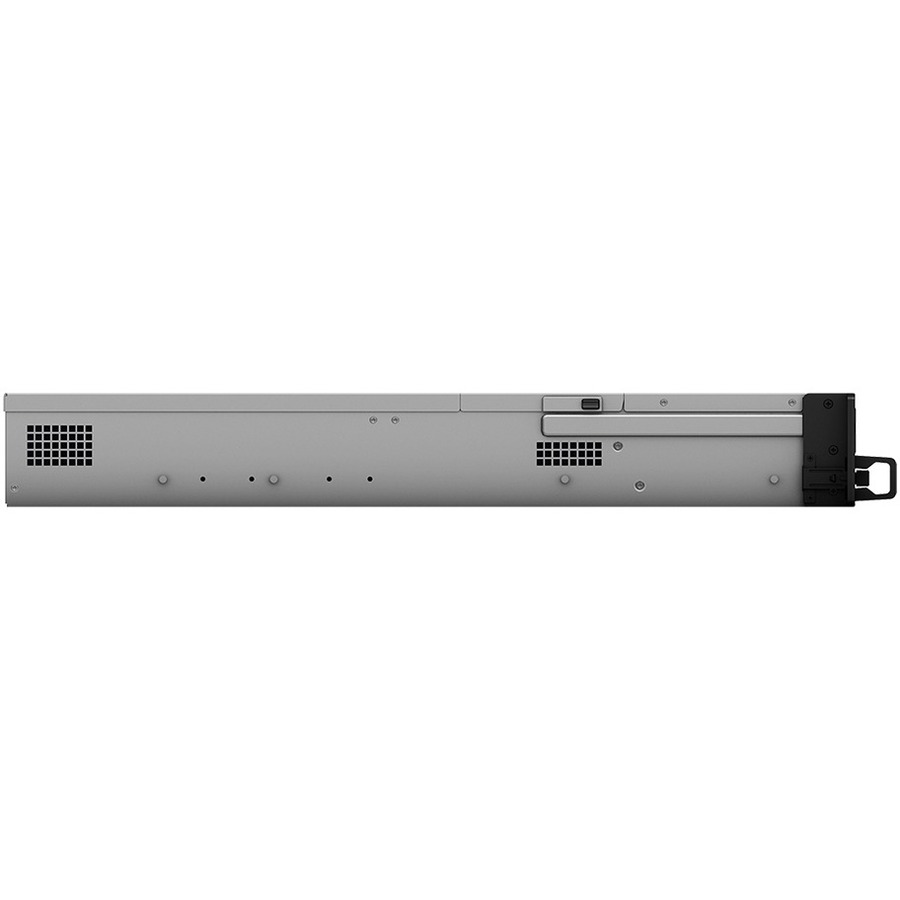

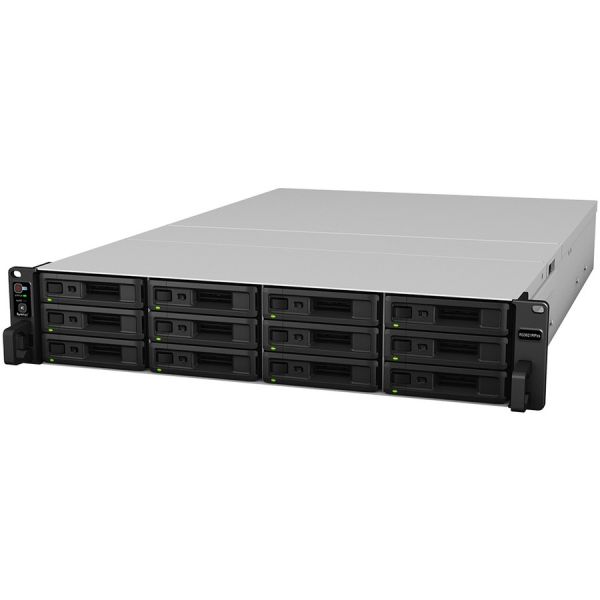

Synology RackStation RS3621RPxs SAN/NAS Storage System

Overview

Tech Specs

Specifications

Manufacturer	Synology, Inc
Manufacturer Part Number	RS3621RPXS
Manufacturer Website Address	http://www.synology.com
Brand Name	Synology
Product Line	RackStation
Product Series	XS
Product Model	RS3621RPXS
Product Name	RackStation RS3621RPxs SAN/NAS Storage System
Marketing Information	Safeguard your business assets Synology RS3621RPxs is a powerful 12-bay storage server. Its 6-core processor enables compute-intensive services while its redundant power, ECC memory, and Btrfs file system safeguard mission-critical data. Capable of delivering 189,098 4K random read IOPS and 4,718 MB/s sequential read throughput, it is ideal for small businesses. Compute Intel^® Xeon^® D-1531 6-core 2.2 GHz Throughput 4,718 MB/s seq. read 189,098 4K random read IOPS¹ Expandability Dual PCIe slots for 10GbE or NVMe cache Scalability Up to 36 drive bays with RX1217(RP) Reliability first Service continuity is at the core of the RS3621RPxs design. Redundant power Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans can be replaced without powering down the system. Near-zero downtime Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover. Next-generation file system Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots. Customize to suit The two built-in PCIe slots allow users to customize the RS3621RPxs to satisfy unique performance, networking, and storage requirements. 10GbE ready Support for 10GbE NICs expands the throughput of the unit by up to 5x times using link aggregation. SSD cache Boost read/write IOPS by up to 16 times by enabling SSD cache via our Synology M.2 NVMe adapter cards and SNV3000 Series SSDs or by installing one or more 2.5" SAT5200 SSDs. On-demand drive bays Expand to 36 drive bays using two RX1217(RP) expansion units with minimal intervention. License-free backup solutions Keep disaster at bay Hyper Backup A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage used. Snapshot Replication Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption. Active Backup Suite Enables administrators to easily backup the entire IT infrastructure to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication, multiversioning, and optimizations to reduce bandwidth and storage used.
Packaged Quantity	1
Product Type	SAN/NAS Storage System

Storage

Number of Hard Drives Supported	12
Number of Hard Drives Installed	0
Number of Solid State Drive Supported	12
Number of Solid State Drive Installed	0

Processor & Chipset

Processor Manufacturer	Intel
Processor Type	Xeon
Processor Model	D-1531
Processor Core	Hexa-core (6 Core)
Processor Speed	2.20 GHz

Memory

Standard Memory	8 GB
Memory Technology	DDR4 SDRAM

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	12
Number of 2.5"/3.5" Bays	12
Total Number of Expansion Slots	2.0
Expansion Slot Type	PCI Express 3.0 x8

Controllers

Controller Type	Serial ATA
RAID Supported	Yes
RAID Levels	0, 1, 5, 6, 10, Basic, JBOD, RAID F1

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.2 Gen 1 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	4

Software

Operating System

DiskStation Manager

Management & Protocols

Protocols

CIFS
AFP
NFS
FTP
WEBDAV
SMB 1.0
SMB 2.0
SMB 3.0
NFSv3
NFSv4
NFSv4.1
iSCSI
HTTP
HTTPS
SNMP
LDAP
CalDAV
DLNA

Power Description

Number of Power Supplies Installed	2
Maximum Power Supply Wattage	500 W
Redundant Power Supply	Yes

Physical Characteristics

Height	3.5"
Width	19"
Depth	28.5"
Form Factor	Rack-mountable
Rack Height	2U
Weight (Approximate)	31.97 lb

Miscellaneous

Country of Origin

Taiwan
