4 PORT POE+ GB ENET SWITCH/SFP EMB FORMAT HIGH-SPEED DATA TRANSFER

Name: 4 PORT POE+ GB ENET SWITCH/SFP EMB FORMAT HIGH-SPEED DATA TRANSFER
SKU: JT9387
Price: 193.5 USD
Availability: InStock

PCN#

JT9387

MFG#

SW-195

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$193.50

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

4 Ports
Gigabit Ethernet
10/100/1000Base
T, 1000Base
X
2 Layer Supported
1 SFP Slots
5.30 W Power Consumption
90 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
Compact
Lifetime Limited Warranty
TAA Compliant

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

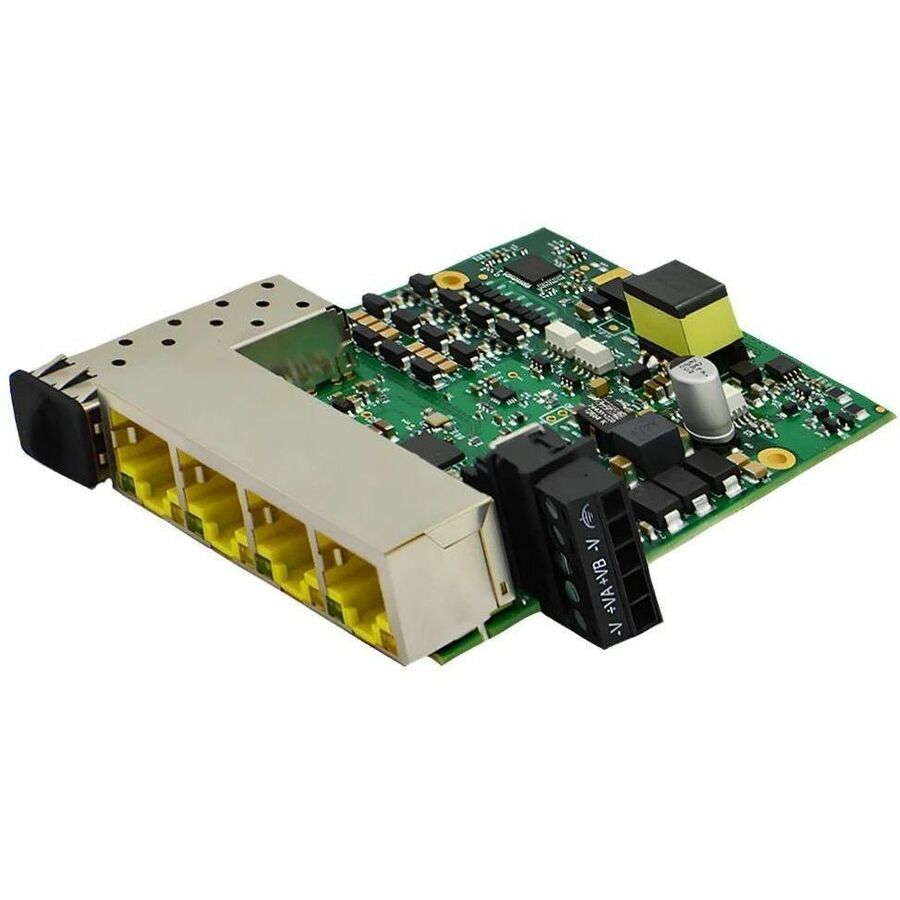

Brainboxes SW-195 Ethernet Switch

Embedded PoE+ Industrial Gigabit SFP Ethernet switch.

Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.

Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

Product Type

Ethernet SwitchInterfaces/Ports

Total Number of Network Ports

Uplink Port

Yes

Network (RJ-45)

Yes

Port/Expansion Slot Details

4 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port1 x 1000Base-X Gigabit Ethernet SFP Expansion SlotMedia & Performance

Media Type Supported

Twisted PairOptical Fiber

Ethernet Technology

Gigabit Ethernet

Network Technology

10/100/1000Base-T1000Base-X

Maximum Data Transfer Rate

125 MB/sI/O Expansions

Total Number of Expansion Slots

Expansion Slot Type

SFP

Number of SFP Slots

1Network & Communication

Layer Supported

Networking Standards

IEEE 802.3afIEEE 802.3atPower Description

PoE (RJ-45) Port

Yes

PoE Budget

90 W

Input Voltage

44 V DC57 V DC

Power Source

Power Consumption

5.30 WPhysical Characteristics

Form Factor

Compact

Height

0.8"

Width

4.1"

Depth

3.4"

Weight (Approximate)

3.14 ozMiscellaneous

Application/Usage

IndustrialCCTV System

Certifications & Standards

Overview

General CE UKCAProduct TypeEthernet SwitchInterfaces/PortsTotal Number of Network Ports4Uplink PortYesNetwork (RJ-45)YesPort/Expansion Slot Details4 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port1 x 1000Base-X Gigabit Ethernet SFP Expansion SlotMedia & PerformanceMedia Type SupportedTwisted PairOptical FiberEthernet TechnologyGigabit EthernetNetwork Technology10/100/1000Base-T1000Base-XMaximum Data Transfer Rate125 MB/sI/O ExpansionsTotal Number of Expansion Slots1Expansion Slot TypeSFPNumber of SFP Slots1Network & CommunicationLayer Supported2Networking StandardsIEEE 802.3afIEEE 802.3atPower DescriptionPoE (RJ-45) PortYesPoE Budget90 WInput Voltage44 V DC57 V DCPower SourceDCPower Consumption5.30 WPhysical CharacteristicsForm FactorCompactHeight0.8"Width4.1"Depth3.4"Weight (Approximate)3.14 ozMiscellaneousApplication/UsageIndustrialCCTV SystemCertifications & Standards

Tech Specs

METL Complies with UL62368-1

HTS

8517620000

ECCN

5A991.b

Country of OriginGreat BritainTAA CompliantYesEnvironmental Compliance

Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)

WarrantyLimited WarrantyLifetime
