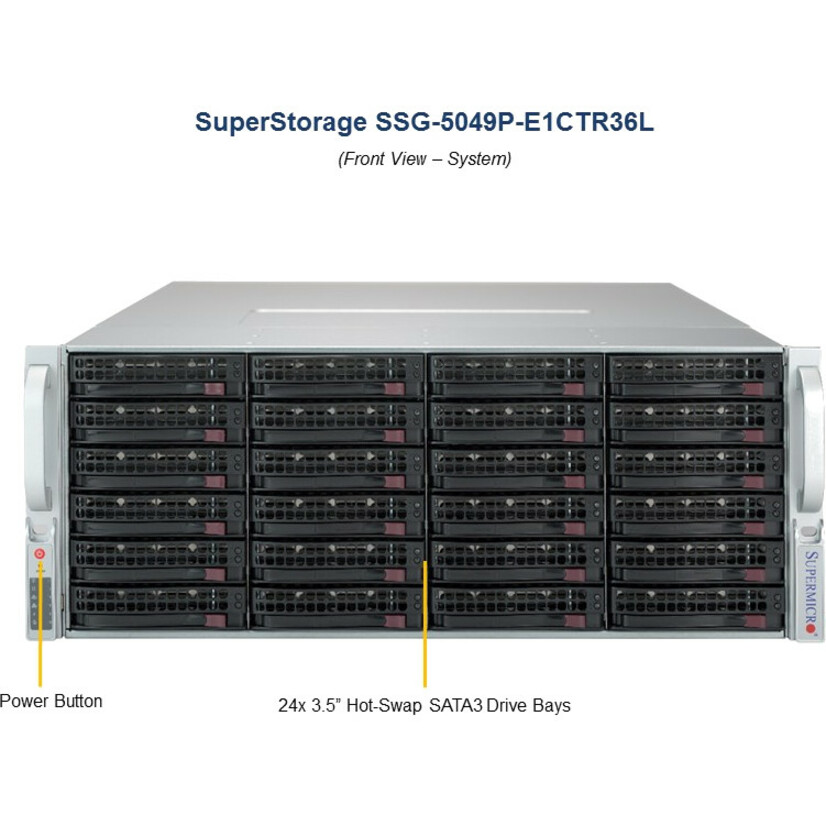

Supermicro SuperStorage 5049P-E1CTR36L Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 1 x Processor Support

Name: Supermicro SuperStorage 5049P-E1CTR36L Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 1 x Processor Support
Brand: SUPERMICRO
SKU: 5CT417
Price: 2856.79 USD
Availability: OutOfStock

SUPERMICRO

PCN#

5CT417

MFG#

SSG-5049P-E1CTR36L

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

Intel C622 Chip
1 TB DDR4 SDRAM DDR4
2666/PC4
21300 Maximum RAM Support
8 Total Memory Slots
Serial ATA/600 RAID Supported, 12Gb/s SAS Controller
ASPEED AST2500 Graphic(s)
36 3.5" Bay(s)
6 2.5" Bay(s)
Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze)
10 Gigabit Ethernet
2 USB 3.0 Port(s)
2 x 1200 W
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 60 lbs.

Supermicro SuperStorage 5049P-E1CTR36L Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 1 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	SSG-5049P-E1CTR36L
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	SuperStorage
Product Model	5049P-E1CTR36L
Product Name	SuperServer 5049P-E1CTR36L (Black)
Marketing Information	New-generation X11 Supermicro SuperStorage systems support node-based deployment strategies where CPU and HDD capacity scale together, or deployments can be expanded using JBODs for improved economy. Low-latency SSD applications, large media files requiring massive capacity and enterprise workloads looking for the highest performance will benefit from Supermicro's SAS 3.0 (12 Gbps) support which provides low-latency and maximum data bandwidth. The Supermicro SuperStorage systems offer a no-compromise storage platform with flexible market entry points from 2U, 3U, and 4U form factors using 2.5" or 3.5" SSDs/HDDs. SuperStorage servers support up to: 1TB 3DS ECC LRDIMM or 256GB ECC RDIMM memory, PCI-E 3.0 slots, NVMe, flexible networking options such as 10G SFP+, 10GBase-T LAN ports and IPMI 2.0 and KVM with dedicated LAN, and have support for the latest Intel^® Xeon^® Scalable processors. Supermicro SuperStorage solutions present a number of key benefits to customers working with CPU-Intensive Storage, Virtual Storage, Single-Instance Storage and Data Deduplication, Data Replication and Business Continuity, and Virtual Tape Library customer environments.
Product Type	Barebone System

Processor

Number of Processors Supported	1
Processor Socket	Socket P LGA-3647
Processor Supported	Xeon Platinum Xeon Gold Xeon Silver Xeon Bronze
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C622

Memory

Maximum Memory Supported	1 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2666/PC4-21300
Number of Total Memory Slots	8

Controllers

Controller Type	Serial ATA/600 12Gb/s SAS
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	42
Number of 3.5" Bays	36
Number of Internal 2.5" Bays	6
Total Number of Expansion Slots	4.0
Number of PCI Express x8 Slots	3
Number of PCI Express x16 Slots	1

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 3.0 Ports	2

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	1200 W

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack-mountable
Rack Height	4U
Height	7"
Width	17.2"
Depth	27.5"
Weight (Approximate)	65.50 lb

Miscellaneous

Package Contents	SuperServer 5049P-E1CTR36L (Black) 1 x Super X11SPH-nCTF Motherboard 1 x 4U Chassis 1 x 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH 1 x 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD 1 x 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD 4 x 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG 6 x MINI SAS HD,12G,INT,80CM,30AWG 1 x Standard I/O Shield for X11SPM-TF with EMI Gasket 1 x 5049P-E1CR36L Quick Reference Guide 1 x 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism 2 x AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH 7 x 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
