Supermicro MicroBlade MBI-6219B-T63N Blade Server - Intel Xeon D-2163IT - Serial ATA/600 Controller

Name: Supermicro MicroBlade MBI-6219B-T63N Blade Server - Intel Xeon D-2163IT - Serial ATA/600 Controller
Brand: SUPERMICRO
SKU: 7QT440
Price: 3647.3 USD
Availability: InStock

SUPERMICRO

PCN#

7QT440

MFG#

MBI-6219B-T63N

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,647.30

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

128 GB RAM Support
10 Gigabit Ethernet
1 x SFF Bay(s)

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Supermicro MicroBlade MBI-6219B-T63N Blade Server - Intel Xeon D-2163IT - Serial ATA/600 Controller

Overview

Tech Specs

Specifications

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	MBI-6219B-T63N
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	MicroBlade
Product Model	MBI-6219B-T63N
Product Name	MicroBlade MBI-6219B-T63N

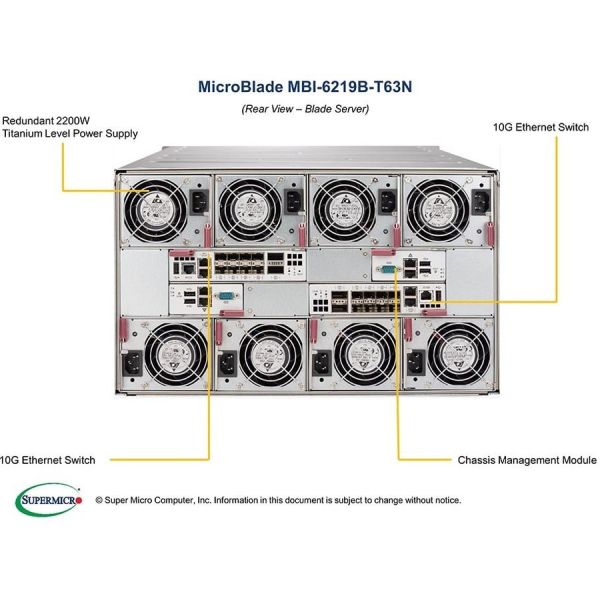

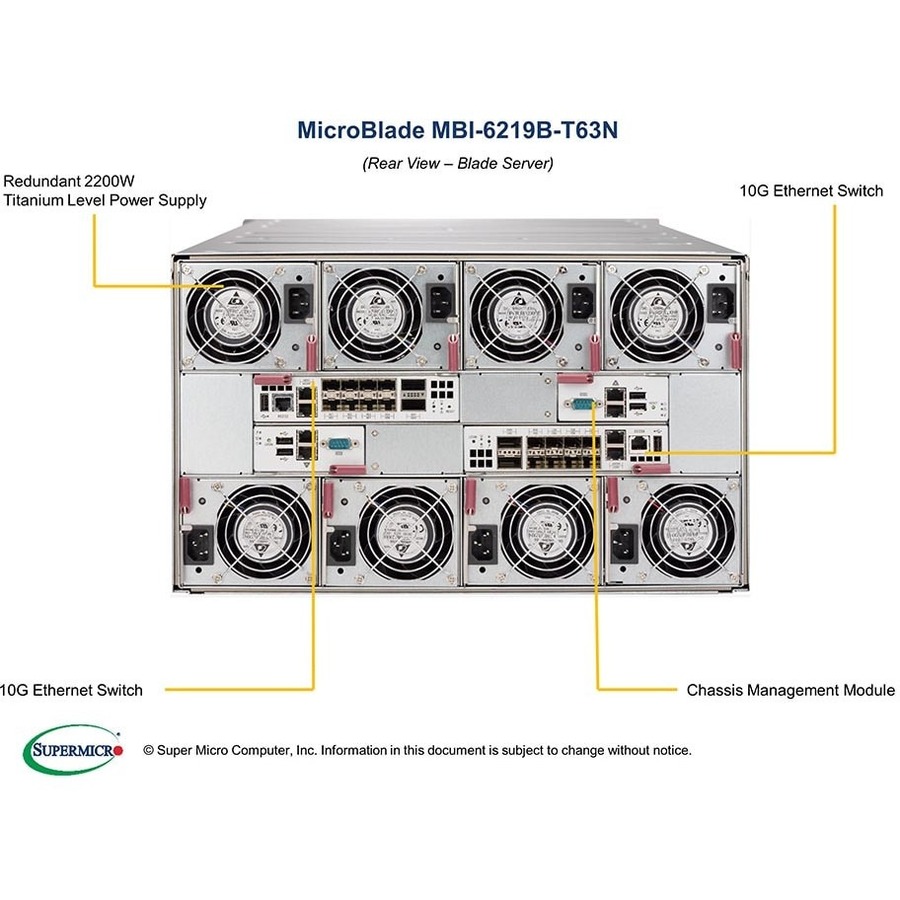

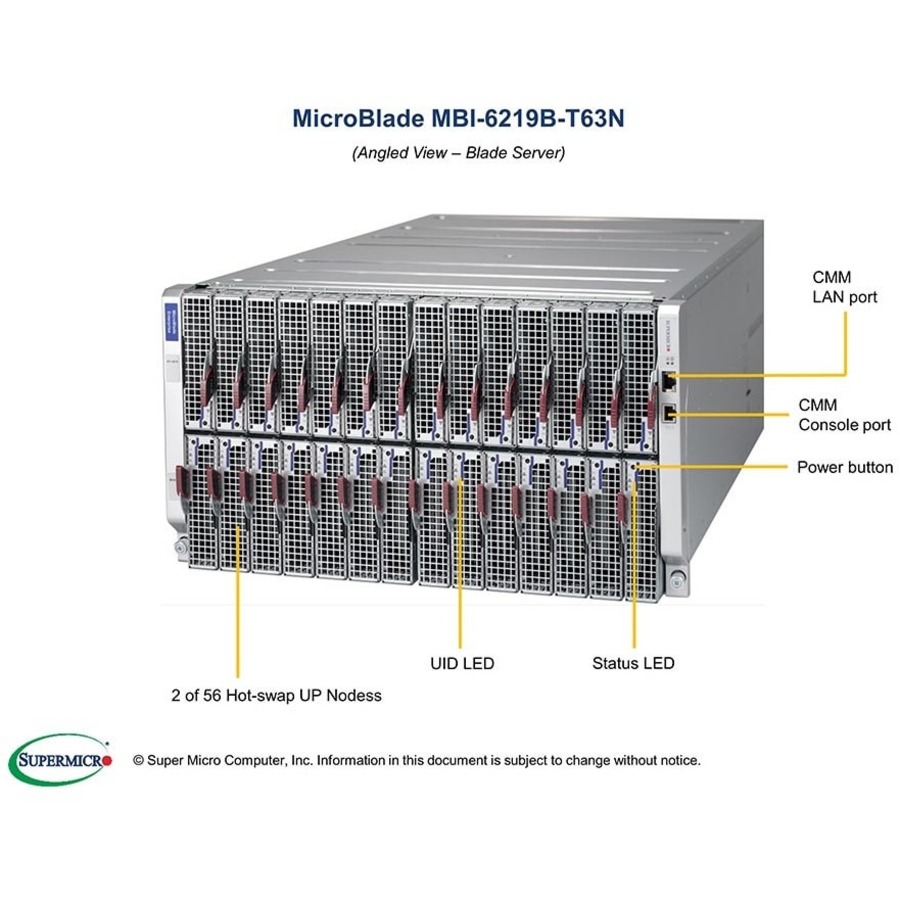

Marketing Information	The Supermicro MicroBlade microserver represents an entirely new type of computing platform. It is a powerful and flexible extreme-density 6U/3U all-in-one total system that features 28/14 hot-swappable MicroBlade Servers supporting 28/14 Newest Dual-Node Xeon UP systems with Intel E3-1200 v5 family configurations with up to 2 SSDs/1 HDD per Node. The 6U/3U MicroBlade enclosure can incorporate up to 2 Chassis Management Modules, and up to 2 Switch Modules for efficient, high-bandwidth communications. It can incorporate up to 8 redundant (N+1 or N+N) 1600/2000W High-Efficiency (95%/96%) power supplies with cooling fans. This innovative new generation architecture includes microserver, networking, storage, and unified remote management for cloud computing, Video Streaming, Content Delivery, Social Networking, Desktop Virtualization and Remote Workstation applications.
Product Type	Server

Processor

Processor Manufacturer	Intel
Processor Type	Xeon
Processor Model	D-2163IT
Processor Core	Dodeca-core (12 Core)

Memory

Maximum Memory Supported	128 GB
Memory Technology	DDR4 SDRAM
Number of Total Memory Slots	4

Controllers

Controller Type

Serial ATA/600

I/O Expansions

Number of Total Expansion Bays	1
Number of Internal 2.5" Bays	1

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

Physical Characteristics

Form Factor	Blade
Height	1.2"
Width	4.9"
Depth	23.2"

Miscellaneous

Package Contents

MicroBlade MBI-6219B-T63N
1 x MicroBlade Board

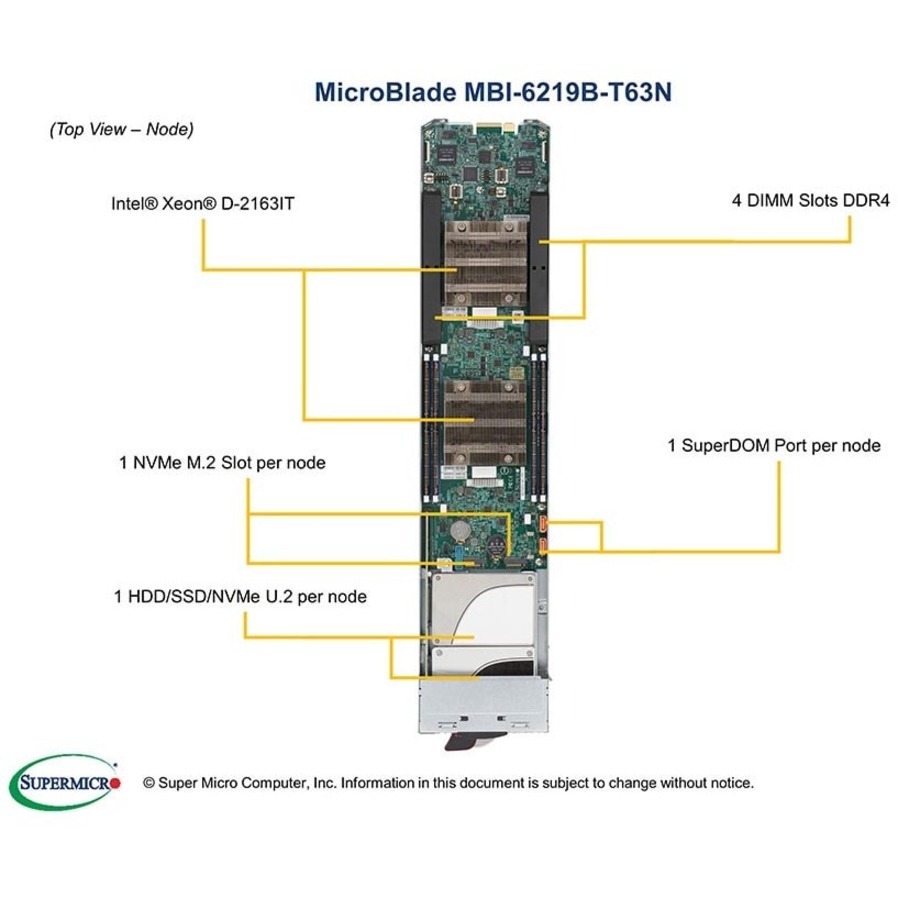

1 x M628 MicroBlade Skylake-D 2 Node UP (complete assembly)
1 x M628 Sled Node Cover with asset tag
1 x M628 Sled Front Window with asset tag opening
1 x M628 Skylake-D UP top 2x 2.5HDD bracket
1 x M628 MicroBlade Skylake-D 2 Node UP Chassis Base
1 x M628 Sled AOM-BPN Bracket
1 x M628 MicroBlade Skylake-D UP Air Shroud
1 x AOM card for B2SD2(1)-8C/12C/16C-TF, 2xSATA or 2x NVME,RoHS
