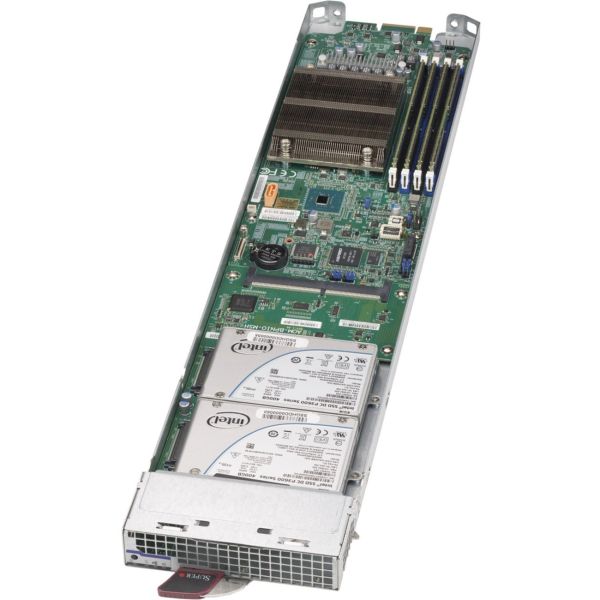

Supermicro MicroBlade MBI-6119M-T2N Barebone System - Blade - Socket H4 LGA-1151 - 1 x Processor Support

MicroBlade

Highest Density, Energy-Efficiency and Value

Resource Saving Architecture

A shared cooling, power and networking infrastructure is key to the extraordinary density and efficiency offered by blade servers. MicroBlade takes our resource saving vision even further with Supermicro's innovative Disaggregated Server Design that enables the independent upgrades of the compute modules without replacing the rest of the server infrastructure for optimal TCO.

Extremely High Density

The MicroBlade family offers the best server density for up to 112x 1-socket Atom nodes, up to 56x 1-socket Xeon processor nodes, and up to 28 2-socket Xeon processor nodes in 6U. It can be effortlessly deployed at scale and provisioned in volume with its data center friendly features and designs, including free-air cooling, Battery Backup Power (BBP®), Supermicro RSD with Redfish RESTful APIs, redundant AC or DC power supply options, and more.

Blade Network Manager

The Supermicro Blade Network Manager (BNM) is a part of Supermicro's blade management software suite designed to reduce IT management overhead and manual networking configuration errors within a MicroBlade or SuperBlade enclosure. BNM offers a single-pane-of-glass to monitor and manage the networking configurations across multiple SuperBlade and MicroBlade enclosures in a data center environment. It provides an overview of the networking topology from each blade server's perspective and helps to easily manage the Ethernet Blade switches and to diagnose networking configuration issues.

• MicroBlade MBI-6119M-T2N
• 1 x MicroBlade Board
• 1 x M628 MicroBlade Modularized Skylake UP
• 1 x M628 Sled Node Cover with asset tag
• 1 x M628 Modularized Skylake UP 2x 2.5" HDD bracket
• 1 x M628 Sled Front Window with asset tag opening - Vertical
• 1 x M628 MicroBlade Modularized Skylake UP w/ 3008 Sled Base
• 1 x M628 MicroBlade Modularized Skylake UP Air Shroud
• 1 x AOM-BPNIO-MSH, I/O module for uBlade,RoHS
