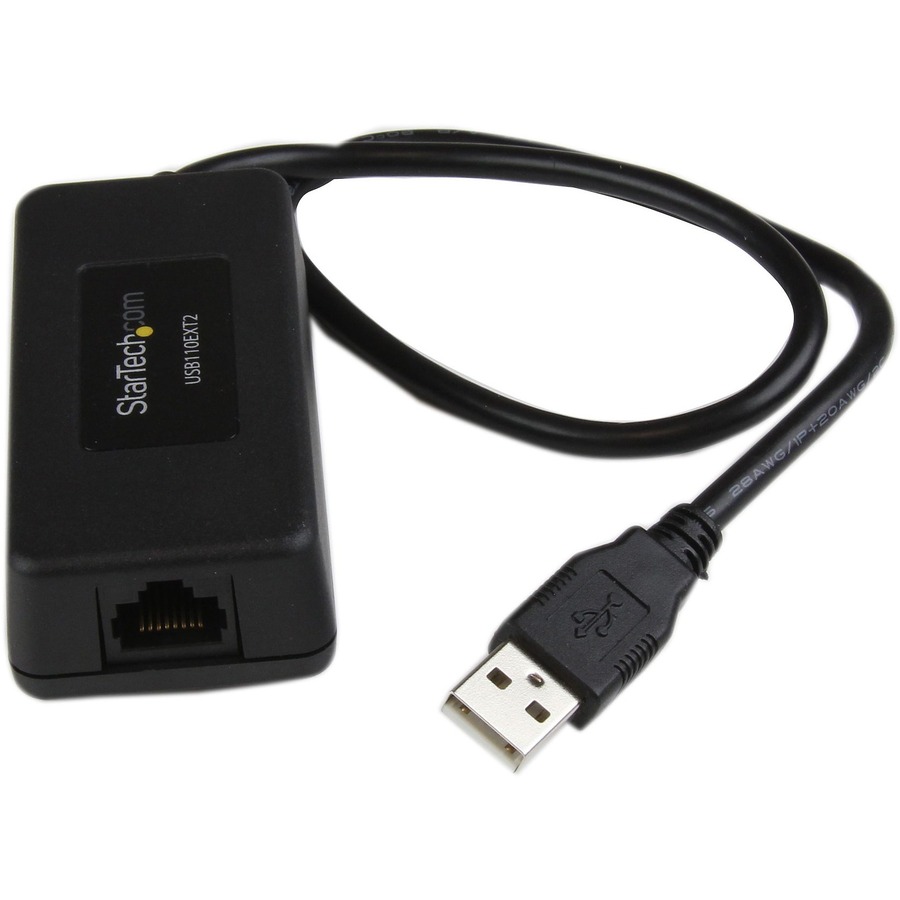

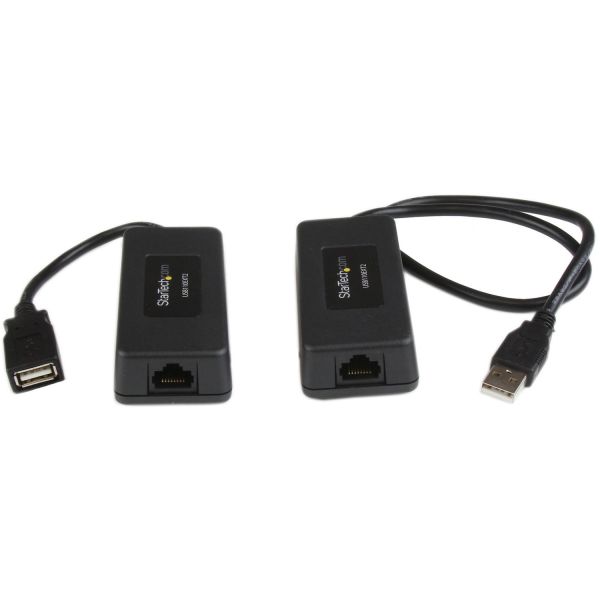

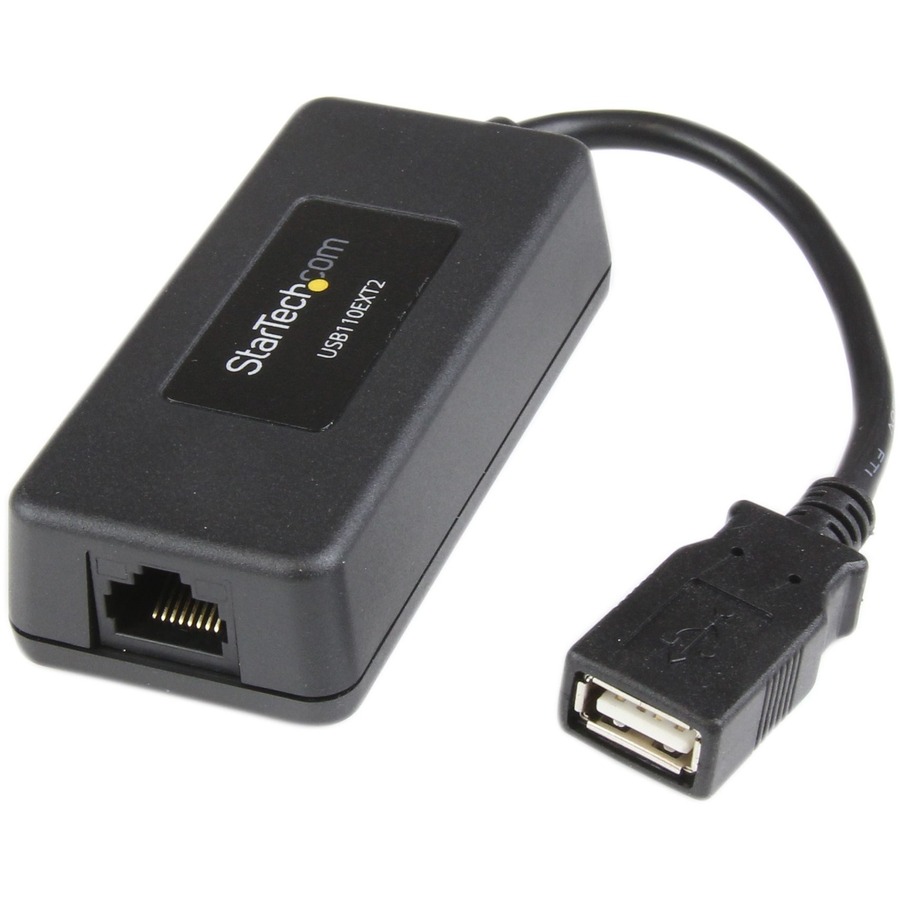

StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m)

by
STARTECH
PCN#
PQ7649
MFG#
USB110EXT2
$123.64
cps

Extended & Accidental Damage Product Replacement Plan Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable
  • usb over cat5 extender
  • usb over cat6

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 1 lbs.
StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m)
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

USB110EXT2

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

1 Port USB Over Cat5 / Cat6 Ethernet Extender - Up to 131ft (40m)

Marketing Information

The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.

The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.

Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Packaged Quantity

1

Product Type

USB Extender
Technical Information

Maximum Extended Range

131.23 ft

Maximum Data Transfer Rate

1.50 MB/s
Interfaces/Ports

USB

Yes

Number of USB Ports

1
Physical Characteristics

Product Color

Black

Product Material

Plastic

Height

1"

Width

1.6"

Length

3.3"

Transmitter Weight (Approximate)

3.88 oz

Receiver Weight (Approximate)

3.88 oz
Miscellaneous

Package Contents

  • 1 x Local Unit
  • 1 x Remote Unit
  • 1 x Instruction Manual

Additional Information

  • Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders, for more versatile device connection options
  • USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 165 feet (50 meters) - a cost-effective solution for extending USB devices that don't require the higher bandwidth offered by USB 2.0+
  • USB over Cat5/Cat6 eliminates the need to cascade expensive, inflexible and space consuming USB hubs or repeaters for extending the range of a USB device
  • 1x USB 1.1 port, 1x RJ45 port
  • 8kV Contact and 16kV Air Electrical Static Discharge (ESD) protection
  • Integrated USB cables
  • No driver or software required

Certifications & Standards

  • CE
  • FCC

Country of Origin

China

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

3 Year
