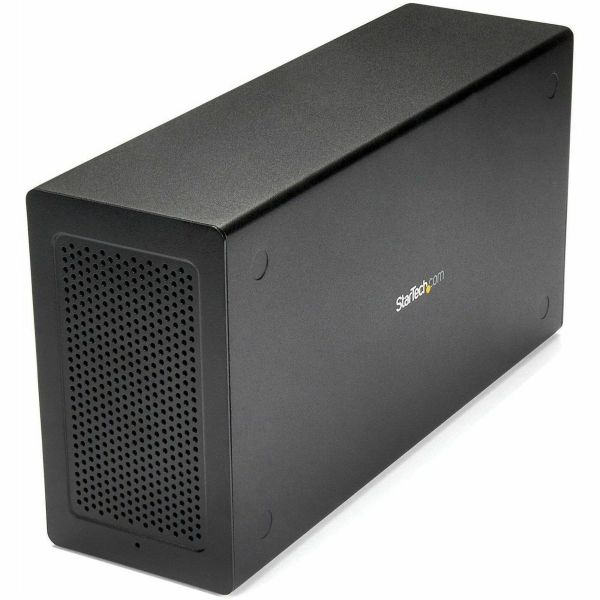

StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA

Name: StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA
Brand: STARTECH
SKU: 2FN256
Price: 304.3 USD
Availability: InStock

STARTECH

PCN#

2FN256

MFG#

TB31PCIEX16

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$304.30

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Add an external PCI Express 3.0 x16 slot and a DP connection to a Thunderbolt 3 MacBook or laptop
Add a PCIe card such as an: SSD, Ethernet, Fiber, video capture, USB, FireWire, or eSATA card to a Thunderbolt 3 laptop
Thunderbolt 3 to PCIe

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 4 lbs.

StarTech Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	TB31PCIEX16
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	Thunderbolt 3 PCIe Expansion Chassis with DisplayPort - PCIe x16

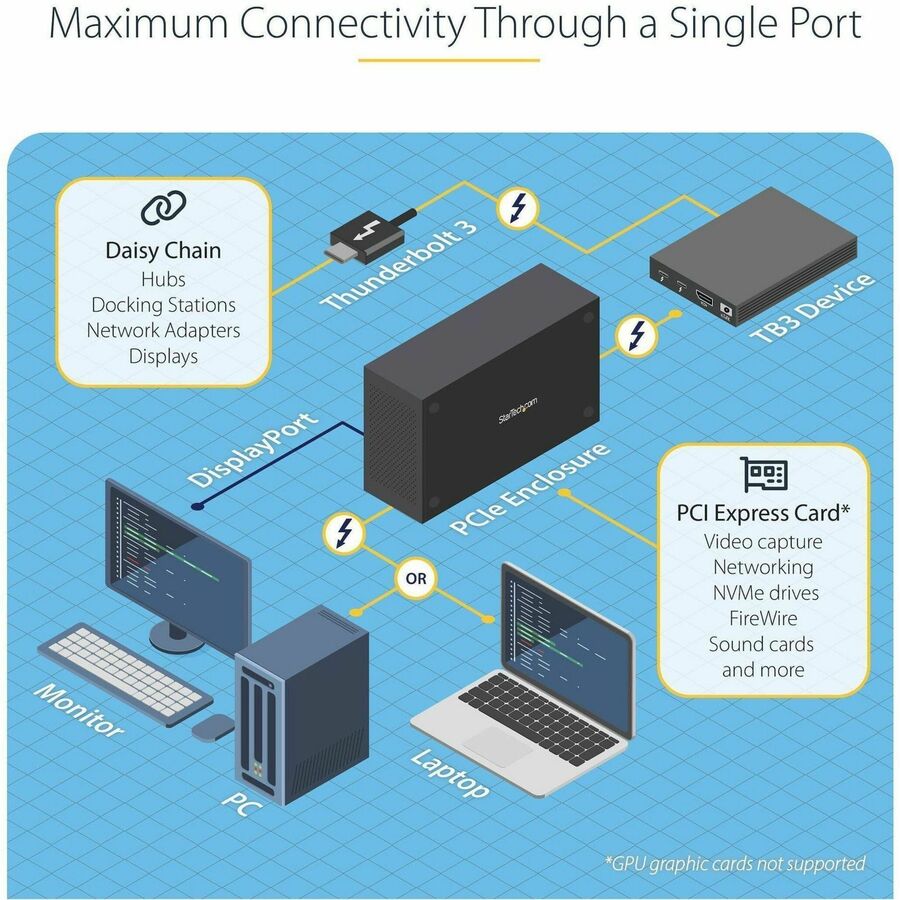

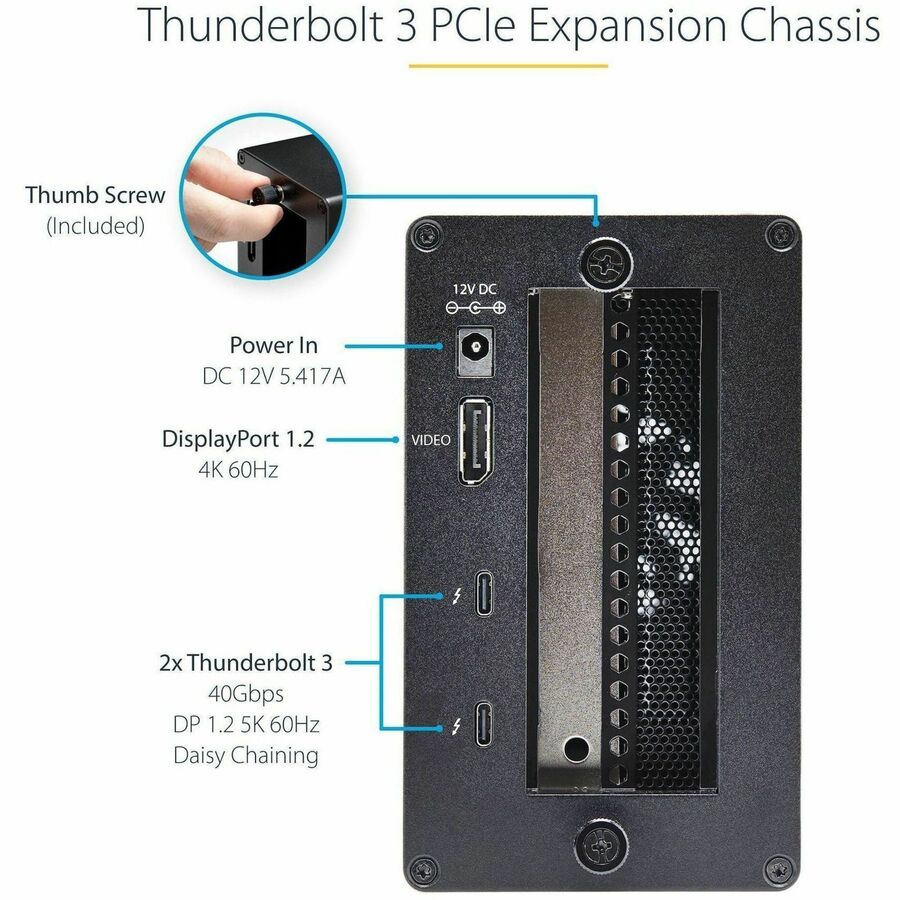

Marketing Information	This Thunderbolt™3 PCIe expansion chassis lets you add a PCI Express card to your laptop or desktop computer, through an external Thunderbolt 3 connection. The chassis also features a DisplayPort video output, so you can connect an additional monitor to your laptop, and supports Thunderbolt 3 daisy chaining, so you can expand your workstation even further. Expand the capabilities of your Thunderbolt 3 computer The Thunderbolt 3 PCIe chassis makes it easy to expand your system with the capabilities you need to work at peak productivity. You can add many types of PCI Express cards, such as a PCIe USB 3.1/3.0/2.0 and USB-C, SSD, network, eSATA, FireWire or video capture cards. And, with the speed and bandwidth support of Thunderbolt 3 and PCIe 3.0, you can enjoy many of the same port additions you would from the PCI Express expansion slots of a desktop system. Extend your workstation The external PCIe enclosure features a dedicated DisplayPort output that lets you add an additional display to your laptop or desktop computer. The enclosure features a second Thunderbolt 3 (USB-C) port, that you can use to connect a secondary display (a USB-C video adapter may be required). With multiple extended displays, you can work more efficiently by multitasking faster, and avoid the hassle of continually repositioning several open windows or programs. You can also use the second Thunderbolt 3 port to connect additional Thunderbolt, USB and DisplayPort devices to your system. You can daisy chain up to six Thunderbolt 3 devices and expand your workstation to suit your specific requirements. Increase productivity with faster speeds Thunderbolt 3 is the fastest connection available, which means you don't have to deal with the performance bottlenecks of a slower connection, and can accomplish more in the same amount of time. At up to 40Gbps this Thunderbolt 3 expansion chassis gives you the throughput to add displays to your laptop, access files quickly, and work without disruptions. It's easy to access and edit large uncompressed files such as videos and images on the fly, making it ideal for dynamic on-site production. The TB31PCIEX16 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaged Quantity	1 Each
Product Type	Expansion Chassis

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Aluminum Steel
Form Factor	Desktop
Height	3.2"
Width	5.6"
Length	11"
Weight (Approximate)	3.60 lb

Miscellaneous

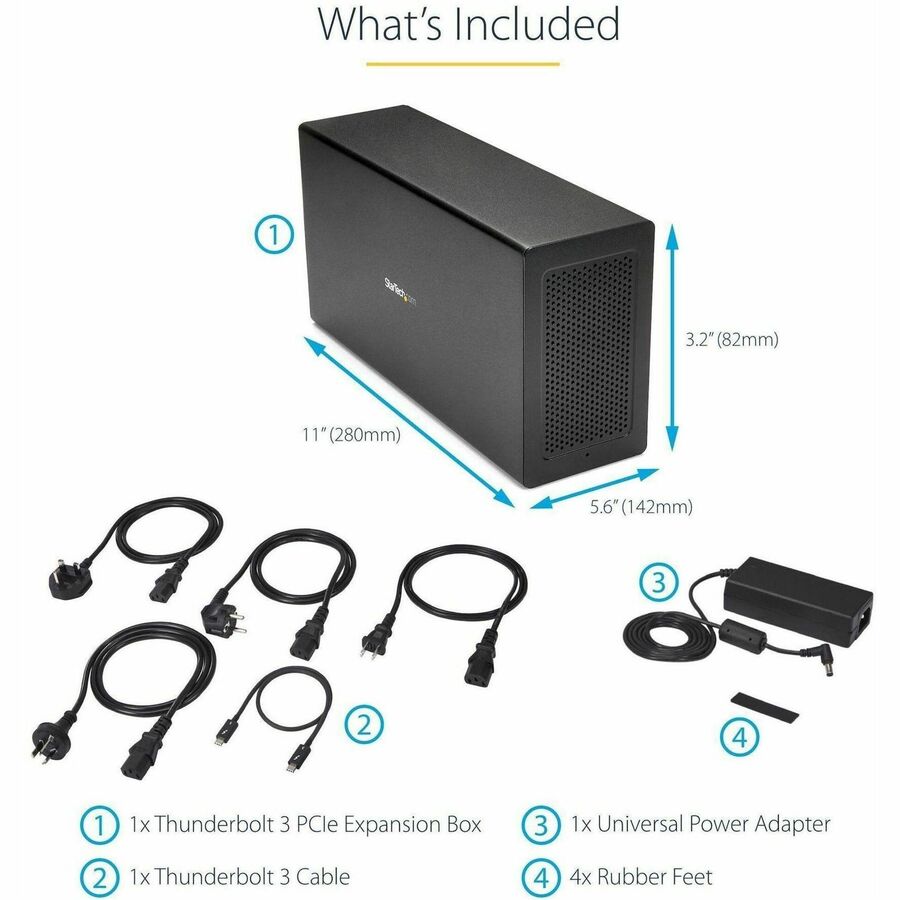

Package Contents	Thunderbolt 3 PCIe Expansion Chassis with DisplayPort - PCIe x16 1 x Thunderbolt 3 cable 4 x Rubber feet 1 x Universal power adapter (NA/JP, UK, EU, ANZ) 1 x Quick-start guide
Additional Information	OS Compatibility: Windows® 7, 8, 8.1, 10, 11 macOS 10.12 - 10.15, 11.0, 12.0, 13.0
Environmentally Friendly	Yes
Environmental Certification	EU RoHS
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	Taiwan
TAA Compliant	Yes
End of Life Manual Availability	Yes
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/tb31pciex16_rohs.pdf
REACH Declaration URL	https://media.startech.com/cms/pdfs/tb31pciex16_rohs.pdf
REACH free of SVHC	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/tb31pciex16_weee.pdf

Warranty

Limited Warranty

2 Year
