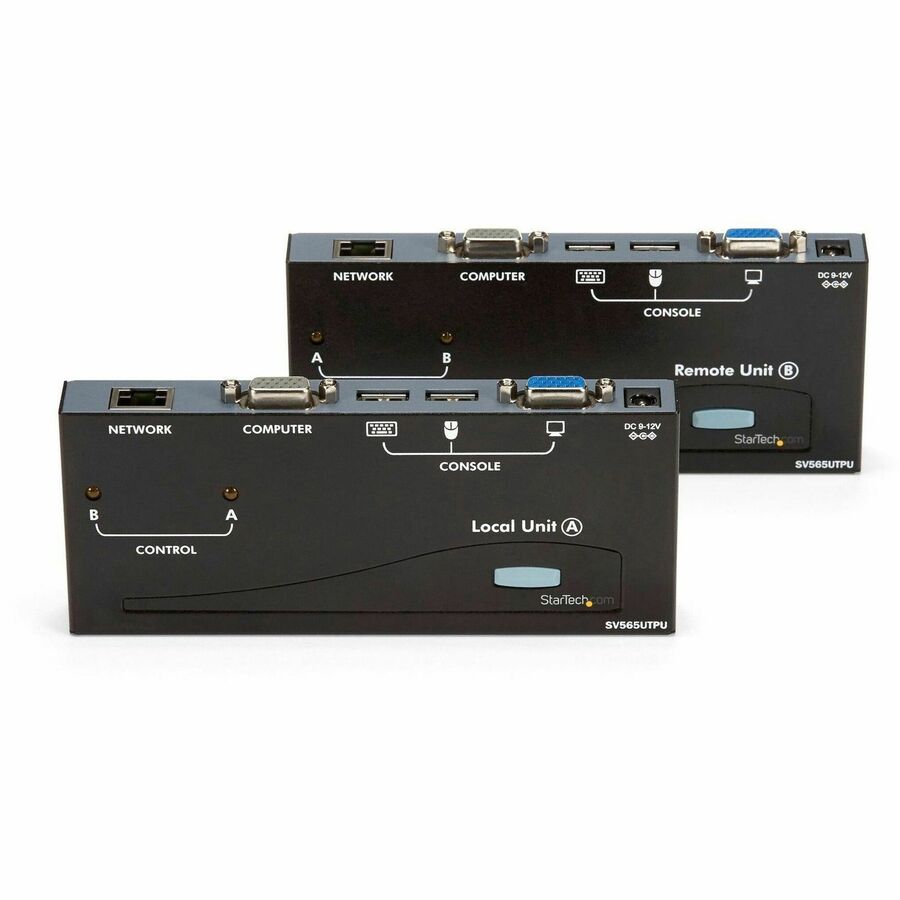

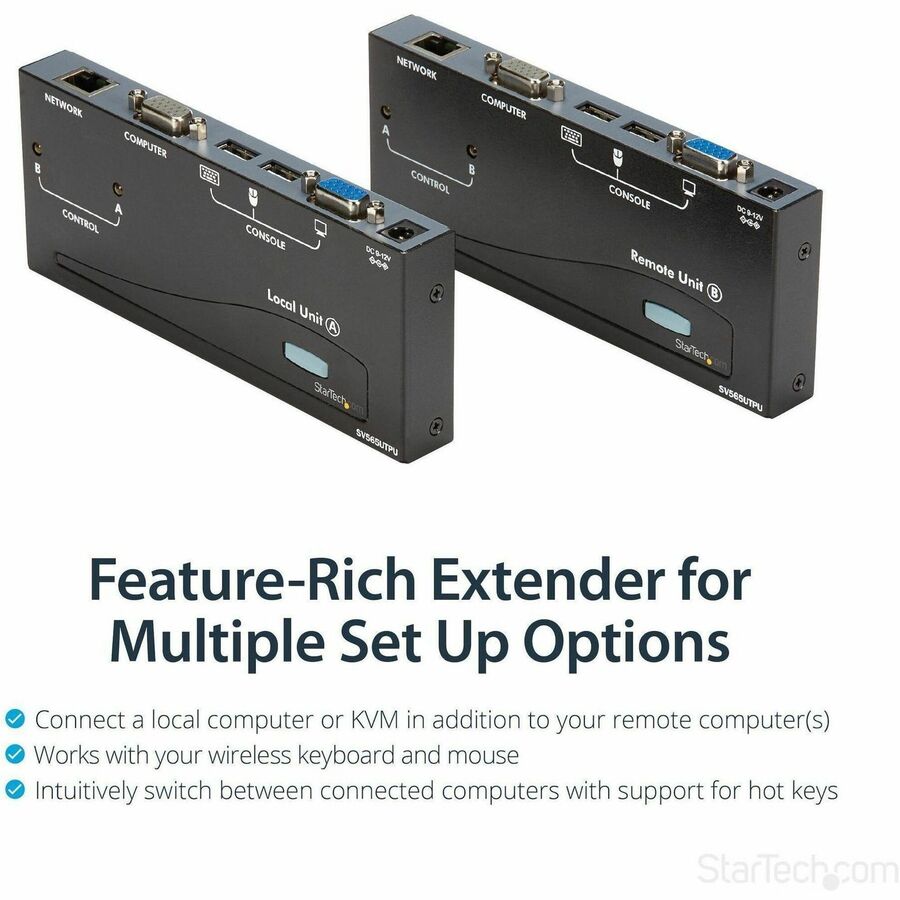

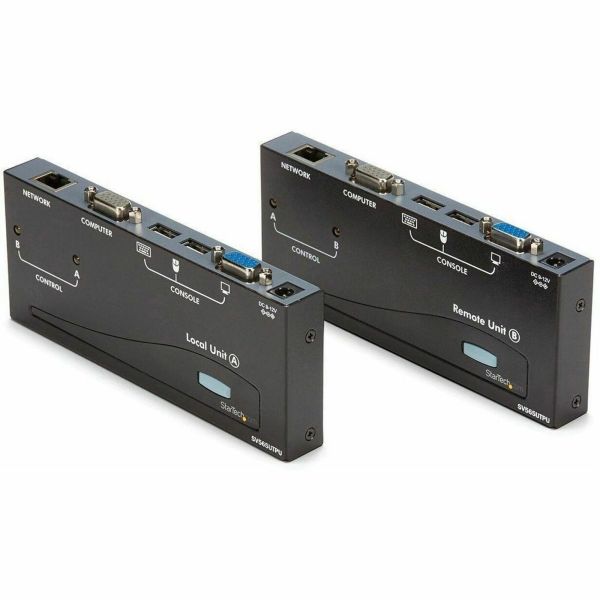

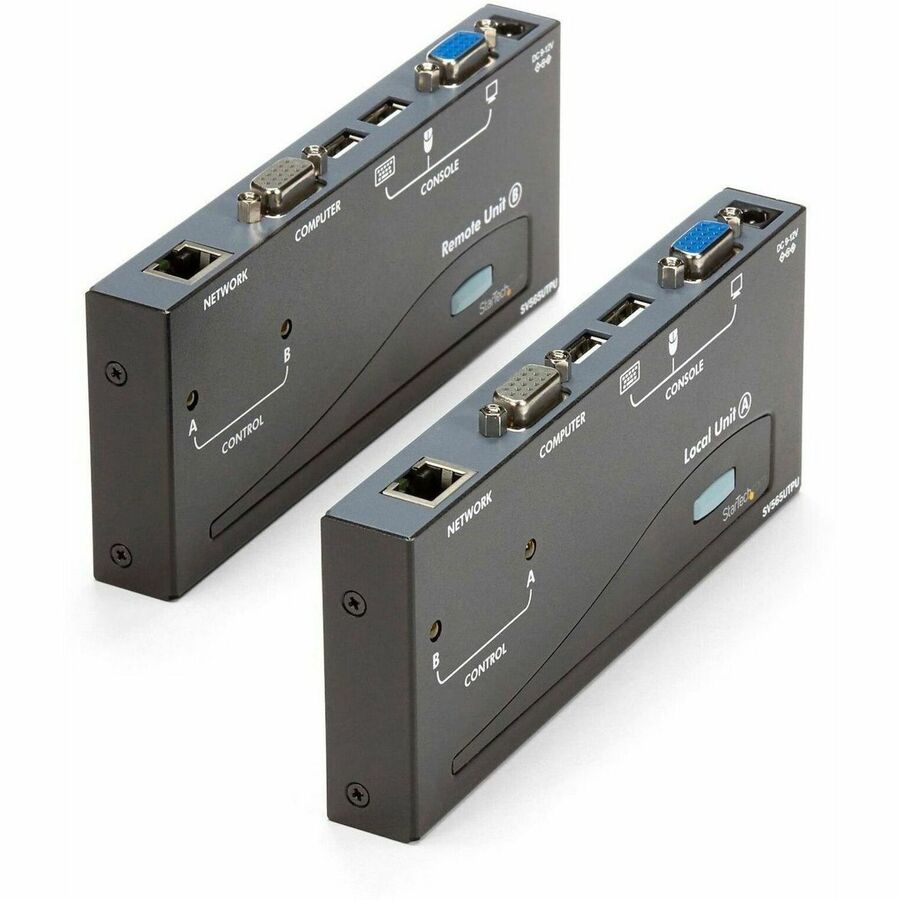

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)

Name: StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
Brand: STARTECH
SKU: BH1601
Price: 206.96 USD
Availability: InStock

STARTECH

PCN#

BH1601

MFG#

SV565UTPU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$206.96

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

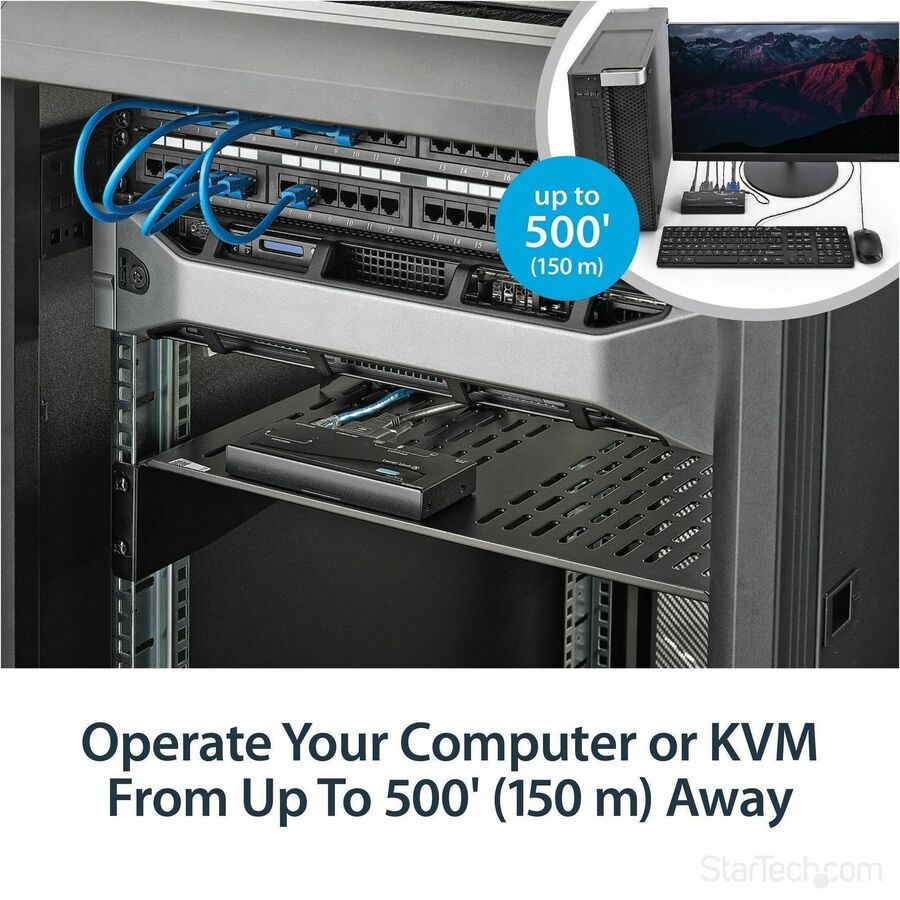

Operate a USB & VGA KVM or PC up to 500ft away as if it were right in front of you
kvm extender
KVM Extender CAT5
Console extender

Product Condition: New and Factory Fresh

Limited Warranty2 YearAdditional Warranty InformationThis product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Shipping Weight: 4 lbs.

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	SV565UTPU
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Model	SV565UTPU
Product Name	USB VGA KVM Console Extender over CAT5 UTP - 500 ft

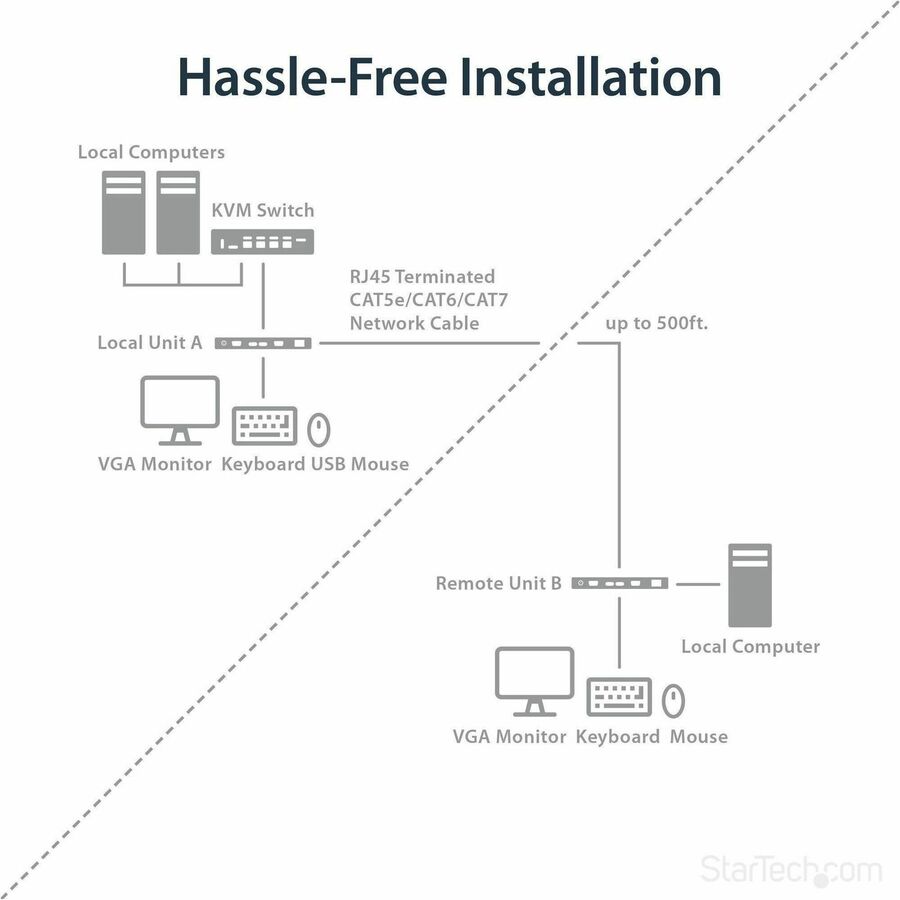

Marketing Information	The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Packaged Quantity	1
Packaged Quantity Condition	Kit
Product Type	KVM Console/Extender

Technical Information

Connectivity Technology	Wired
KVM Technology	Analog
Number of Computers Supported	2
Number of Local Users Supported	1
Number of Remote Users Supported	1
Maximum Operating Distance	500 ft

Video

Graphic Mode	XGA
Maximum Video Resolution	1024 x 768

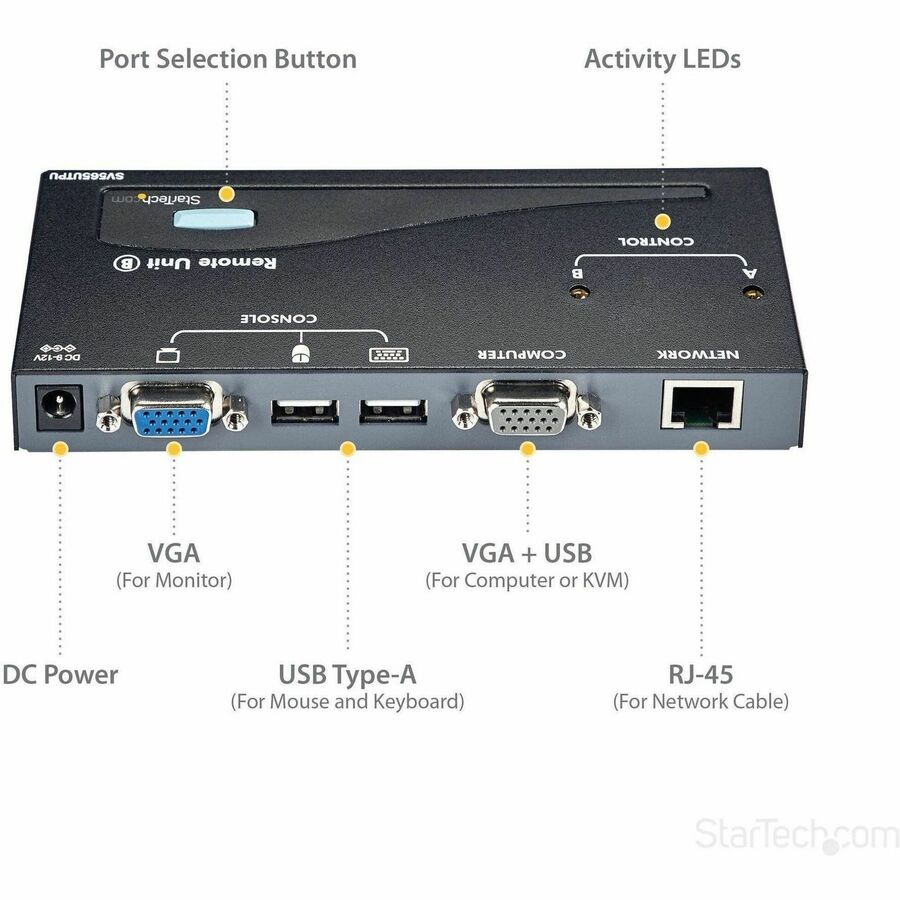

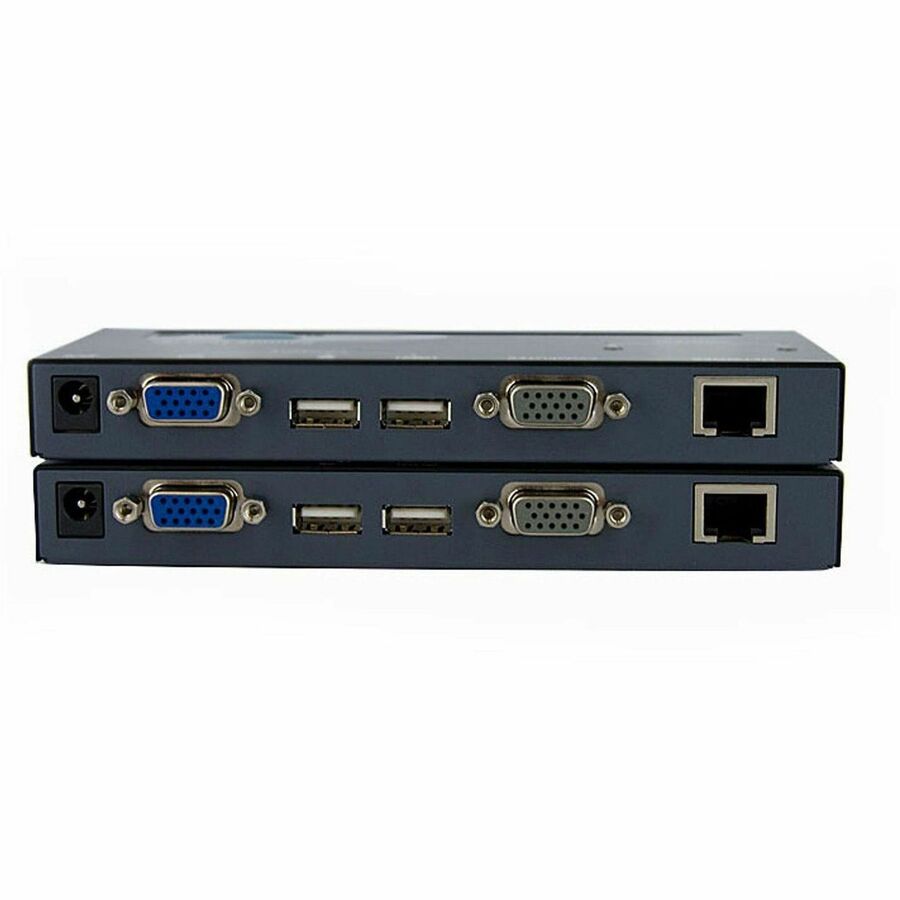

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
VGA	Yes
Number of VGA Ports	4
Number of Network (RJ-45) Ports	2
Number of USB Ports	4

Power Description

Input Voltage	120 V AC 240 V AC
Input Voltage Range	110V AC to 240V AC
Power Consumption	5.40 W

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Desktop
Transmitter Height	0.80"
Transmitter Width	6.10"
Transmitter Length	3"
Receiver Height	0.80"
Receiver Width	6.10"
Receiver Length	3"
Transmitter Weight (Approximate)	1.32 lb
Receiver Weight (Approximate)	1.32 lb

Miscellaneous

Package Contents	USB VGA KVM Console/Extender 2 x 6 ft 2-in-1 USB VGA KVM Cables 8 x Rubber Feet 1 x Power Adapter 1 x Instuction Manual
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty	2 Year
Additional Warranty Information	This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
