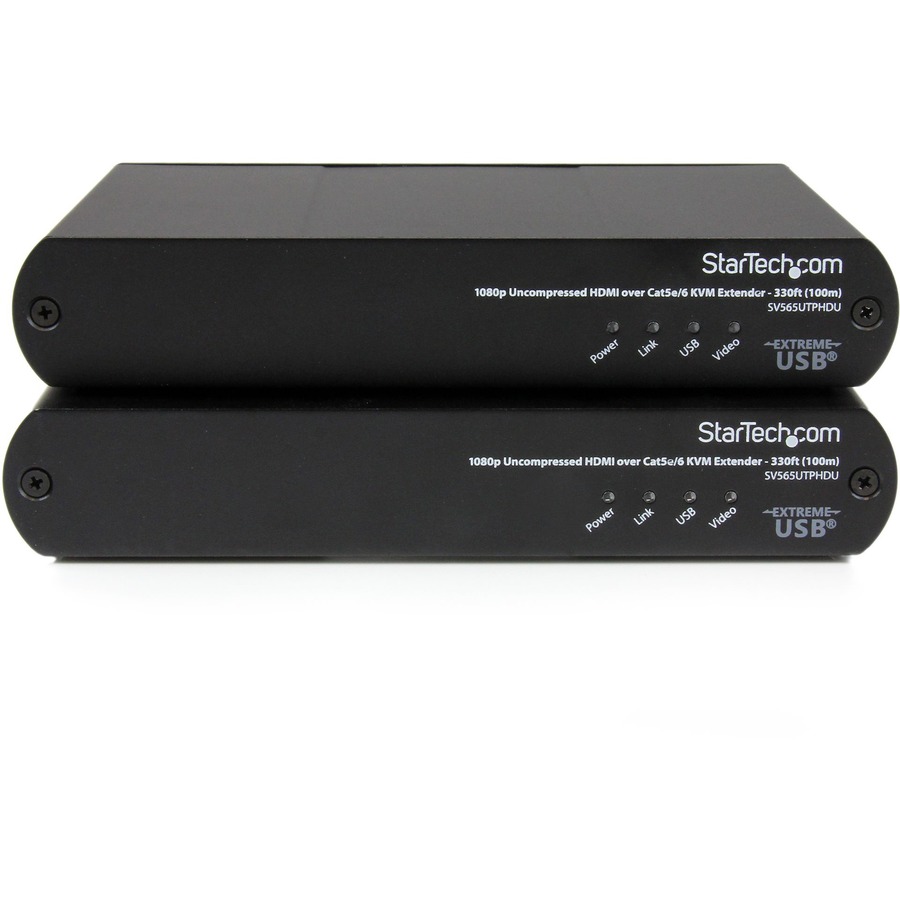

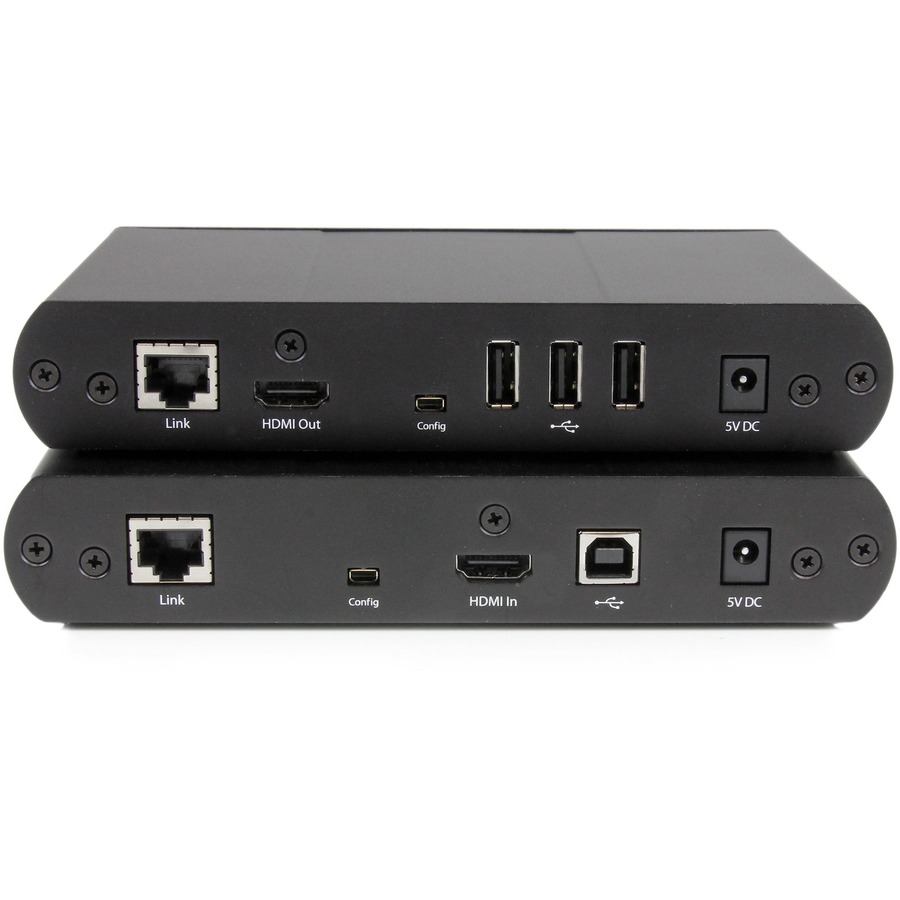

StarTech.com USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m)

by
STARTECH
PCN#
TW5326
MFG#
SV565UTPHDU
$866.91
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Operate a PC from up to 100m away, with uncompressed 1080p HDMI® video and USB keyboard / mouse
  • HDMI Extender Cat 5e Cat 6
  • USB KVM Extender

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 6 lbs.
StarTech.com USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m)
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

SV565UTPHDU

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

KVM Console/Extender

Marketing Information

The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.

A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3Dsupport, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.

This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaged Quantity

1

Packaged Quantity Condition

Kit

Product Type

KVM Console/Extender
Technical Information

Connectivity Technology

Wired

Number of Computers Supported

1

Number of Local Users Supported

1

Maximum Operating Distance

330 ft
Video

Graphic Mode

WUXGA

Maximum Video Resolution

1920 x 1200
Interfaces/Ports

Network (RJ-45)

Yes

USB

Yes

HDMI

Yes

Number of HDMI Ports

2

Number of Network (RJ-45) Ports

2

Number of USB Ports

6
Power Description

Input Voltage

  • 120 V AC
  • 240 V AC

Input Voltage Range

100V AC to 240V AC

Power Consumption

15 W
Physical Characteristics

Product Color

Black

Transmitter Height

1.20"

Transmitter Width

4.40"

Transmitter Depth

6.90"

Receiver Height

1.20"

Receiver Width

4.40"

Receiver Depth

6.90"

Transmitter Weight (Approximate)

1.87 lb

Receiver Weight (Approximate)

1.87 lb
Miscellaneous

Package Contents

  • 1 x Local Transmitter Unit
  • 1 x Remote Receiver Unit
  • 4 x Mounting Brackets
  • 1 x HDMI Cable
  • 1 x USB Cable
  • 2 x Universal Power Adapters (NA, EU ,UK)
  • 1 x Quick-start guide

Certifications & Standards

  • CE
  • FCC
  • UL

Environmentally Friendly

Yes

Environmental Certification

  • RoHS
  • WEEE
  • REACH

Country of Origin

Canada
Warranty

Limited Warranty

2 Year
