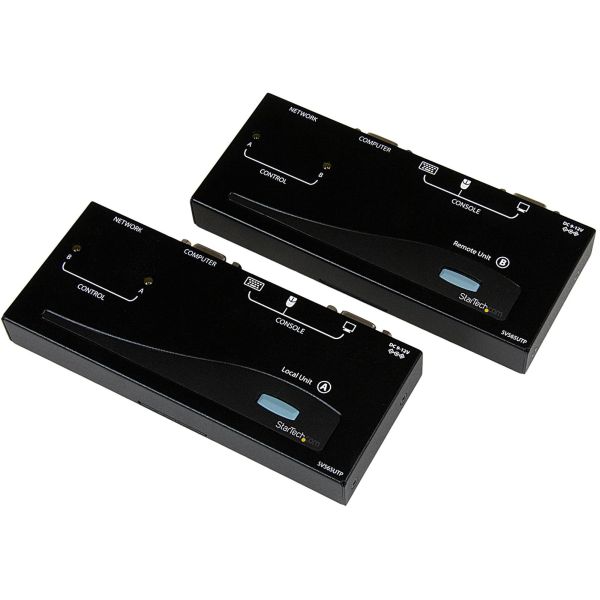

StarTech.com PS/2 + USB KVM Console Extender - cat5 extender - external - up to 150 m

by
STARTECH
PCN#
G53264
MFG#
SV565UTP
$194.81
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Operate a USB or PS/2 & VGA KVM or PC up to 500ft away as if it were right in front of you
  • kvm extender
  • KVM Extender CAT5

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 3 lbs.
StarTech.com PS/2 + USB KVM Console Extender - cat5 extender - external - up to 150 m
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

SV565UTP

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

PS/2 USB KVM Console Extender

Marketing Information

The SV565UTP USB PS2 KVM console extender lets you control a server, computer or multiple computers (connected through KVM switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away.

Use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

For added convenience, the Console/KVM extender supports both USB and PS/2 computer connections, and is compatible with any brand of KVM Switch.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Packaged Quantity

1

Packaged Quantity Condition

Kit

Product Type

KVM Console/Extender
Technical Information

Connectivity Technology

Wired

KVM Technology

Analog

Number of Computers Supported

1

Maximum Operating Distance

500 ft
Video

Graphic Mode

VGA

Maximum Video Resolution

1024 x 768
Interfaces/Ports

Network (RJ-45)

Yes

PS/2 Port

Yes

VGA

Yes

Number of VGA Ports

4

Number of Network (RJ-45) Ports

2

Number of PS/2 Ports

4
Power Description

Input Voltage

  • 120 V AC
  • 240 V AC

Input Voltage Range

110V AC to 240V AC

Power Consumption

5.40 W
Physical Characteristics

Product Color

Black

Form Factor

Desktop

Transmitter Height

0.80"

Transmitter Width

6.10"

Transmitter Depth

3"

Receiver Height

0.80"

Receiver Width

6.10"

Receiver Depth

3"

Transmitter Weight (Approximate)

1.35 lb

Receiver Weight (Approximate)

1.35 lb
Miscellaneous

Package Contents

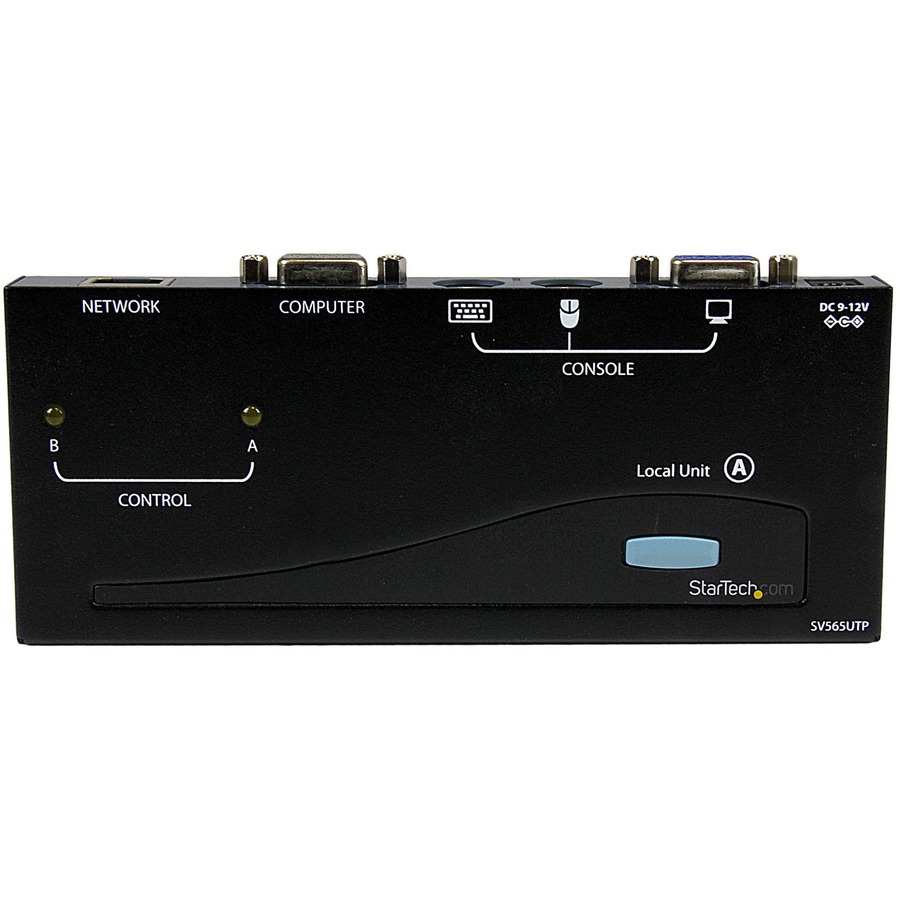

  • 1 x Local Unit

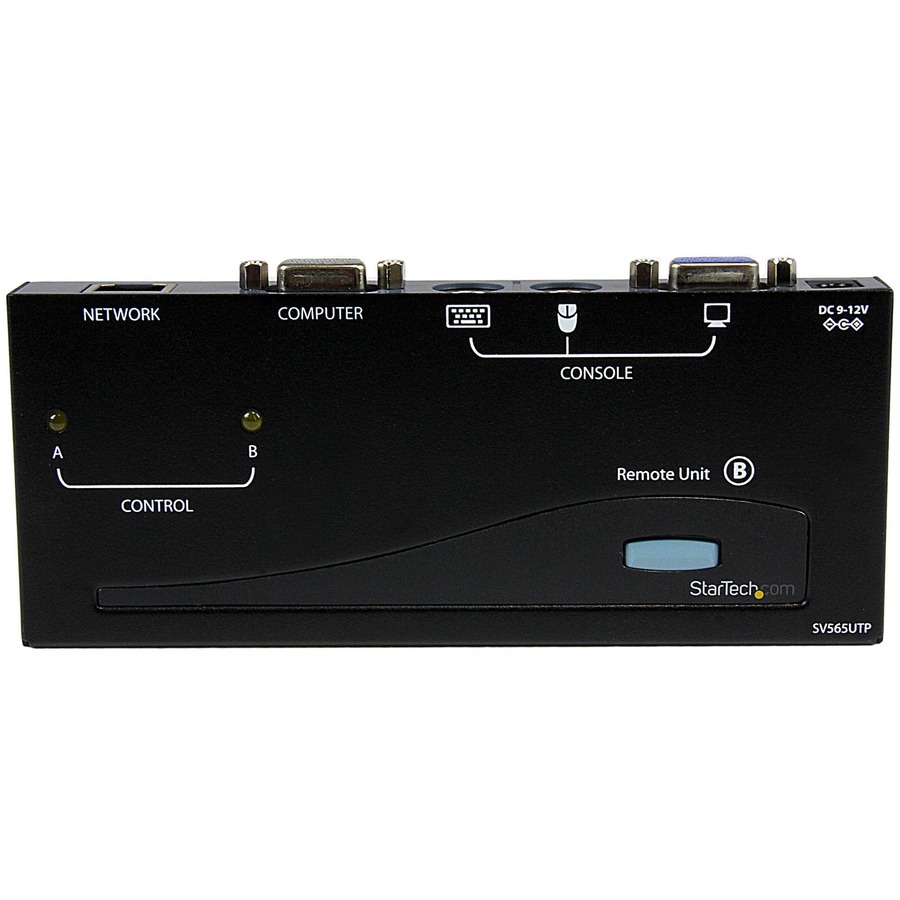

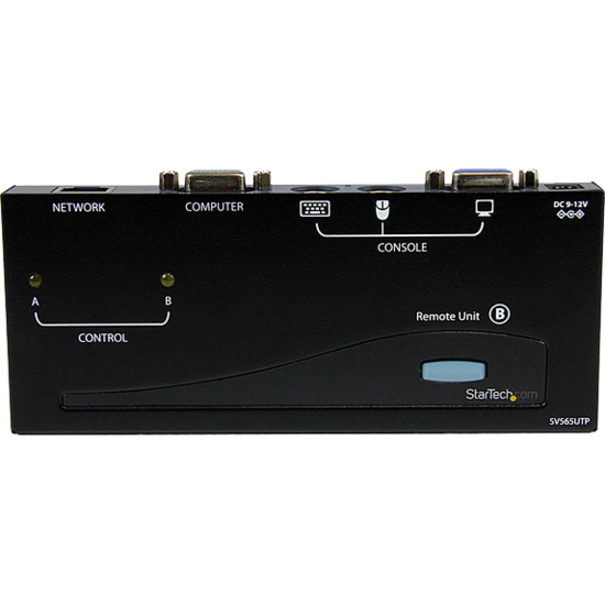

  • 1 x Remote Unit
  • 2 x Packs Rubber Feet
  • 2 x Power Adapters
  • 1 x Instruction Manual

Environmentally Friendly

Yes

Environmental Certification

  • RoHS
  • REACH
  • WEEE

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

2 Year
