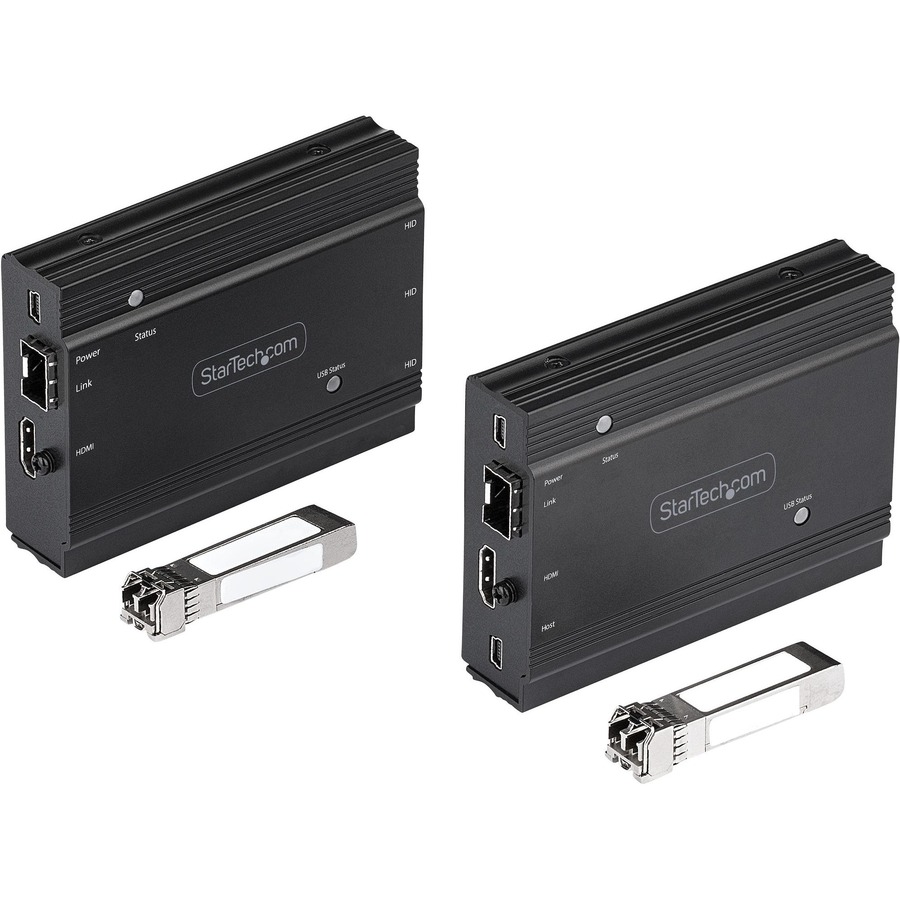

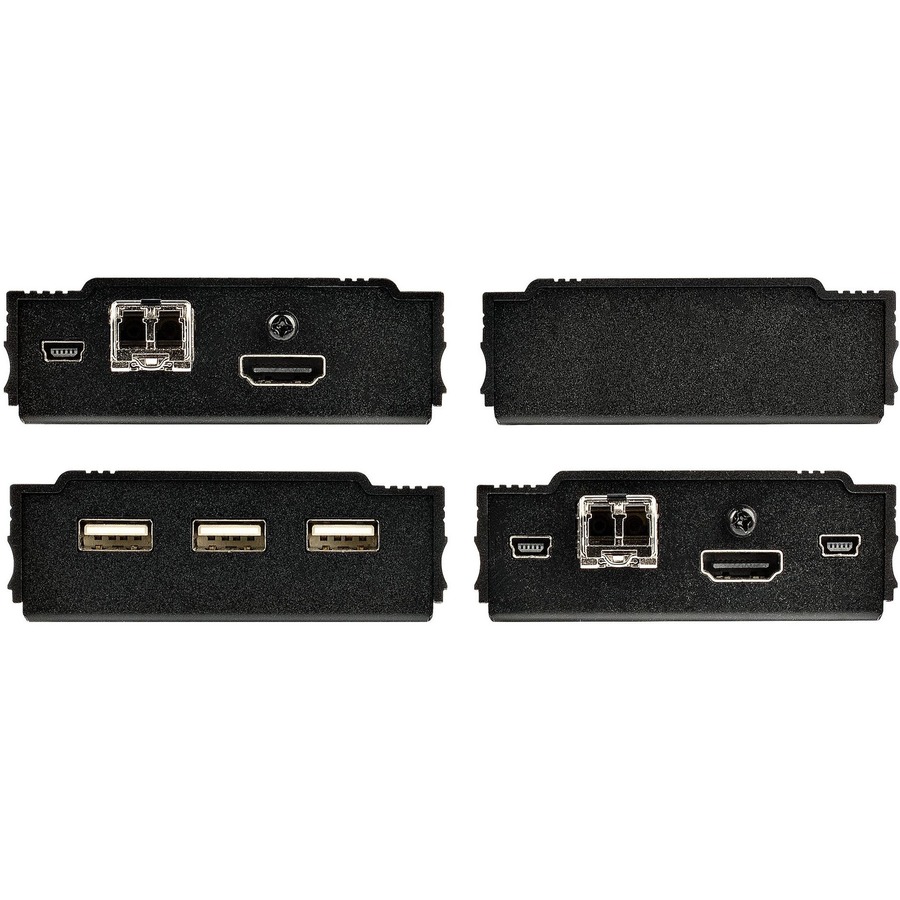

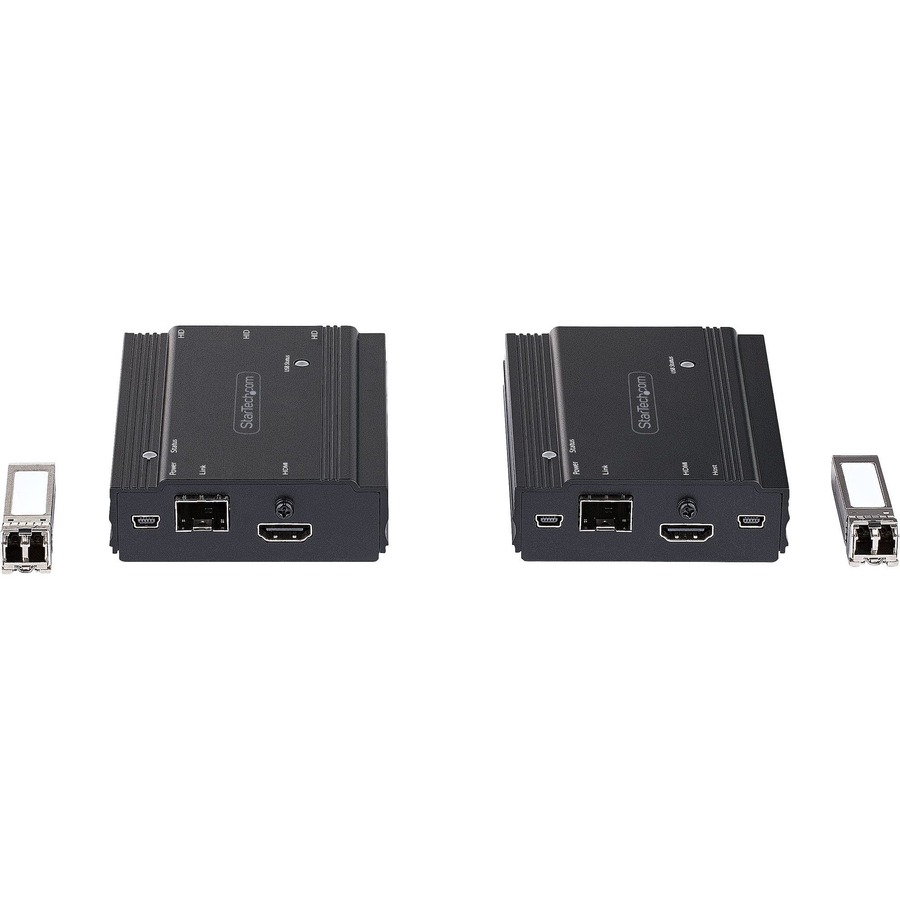

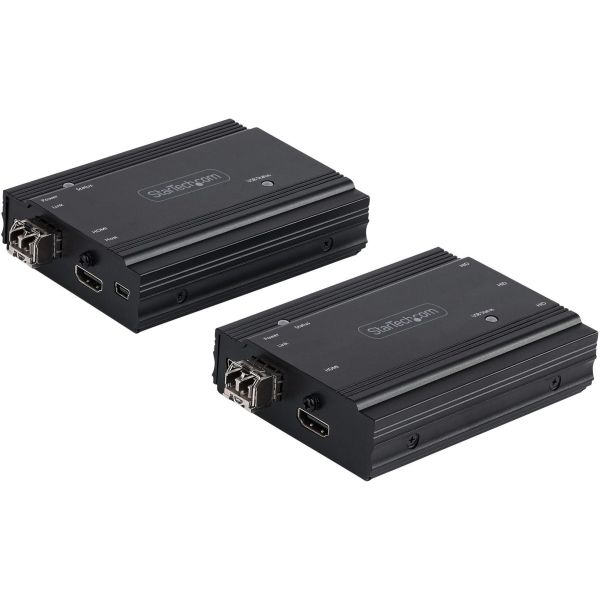

StarTech.com 4K HDMI KVM Extender over Fiber, HDMI Video & USB over Fiber, up to 984ft/300m (MultiMode), 10G MMF SFP+ Modules

by
STARTECH
PCN#
9KX664
MFG#
SV565FXHD4KU
$654.36
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • HDMI and USB KVM extender kit controls a KVM switch/console or PC using fiber optic cable up to 984ft (multimode) or 1640ft (single mode)
  • 4K 60Hz UHD/3x USB 1.1 HID/EDID Passthrough/HDCP 2.2/Digital 7.1 Audio/Open SFP+ Slots/2x 10G MM SFP+/LC
Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
StarTech.com 4K HDMI KVM Extender over Fiber, HDMI Video & USB over Fiber, up to 984ft/300m (MultiMode), 10G MMF SFP+ Modules
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

SV565FXHD4KU

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

KVM Extender

Marketing Information

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse.

Supports UHD 4K 60Hz

The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.

Hassle-Free Installation

The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling

SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.

Packaged Quantity

1

Packaged Quantity Condition

Kit

Product Type

KVM Console/Extender
Technical Information

Connectivity Technology

Wired

Number of Computers Supported

1

Number of Local Users Supported

1

Maximum Operating Distance

984 ft

Device Type

KVM Extender
Video

Graphic Mode

4K

Maximum Video Resolution

3840 x 2160
Interfaces/Ports

USB

Yes

HDMI

Yes

Number of HDMI Ports

6

Number of USB Ports

6
Power Description

Input Voltage

  • 120 V AC
  • 240 V AC

Input Voltage Range

100V AC to 240V AC

Power Consumption

10 W
Physical Characteristics

Product Color

Black

Transmitter Height

1.10"

Transmitter Width

2.95"

Transmitter Length

3.94"

Receiver Height

1.10"

Receiver Width

2.95"

Receiver Length

3.90"

Transmitter Weight (Approximate)

15.87 oz

Receiver Weight (Approximate)

15.87 oz
Miscellaneous

Package Contents

  • Transmitter for Host Computer
  • Receiver for Remote Console
  • 10G Multimode 10G SFP+ Module (Pre-Installed)
  • Universal Power Adapter
  • USB-A to Mini USB-B Cables
  • Quick-Start Guide

Country of Origin

Taiwan
Warranty

Limited Warranty

2 Year
