StarTech.com 2 Port USB HDMI KVM Switch w/ Audio & USB 2.0 Hub

by
STARTECH
PCN#
CN1868
MFG#
SV231HDMIUA
$198.50
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 2 x 1
  • 2 x Mini HDMI Digital Audio/Video
Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 3 lbs.
StarTech.com 2 Port USB HDMI KVM Switch w/ Audio & USB 2.0 Hub
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

SV231HDMIUA

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

2-Port USB HDMI KVM Switch with Audio and USB 2.0 Hub

Marketing Information

The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).

A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.

The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Packaged Quantity

1

Product Type

KVM Switchbox
Technical Information

Number of Computers Supported

2

Number of Local Users Supported

1
Video

Graphic Mode

WUXGA

Maximum Video Resolution

1920 x 1200
Interfaces/Ports

USB

Yes

HDMI

Yes

Digital Audio/Video

Yes

Number of USB Ports

6

Number of HDMI Ports

3
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Input Voltage Range

100V AC to 240V AC
Physical Characteristics

Product Color

Black

Form Factor

Desktop

Height

1.6"

Width

4.9"

Depth

2.8"

Weight (Approximate)

1.40 lb
Miscellaneous

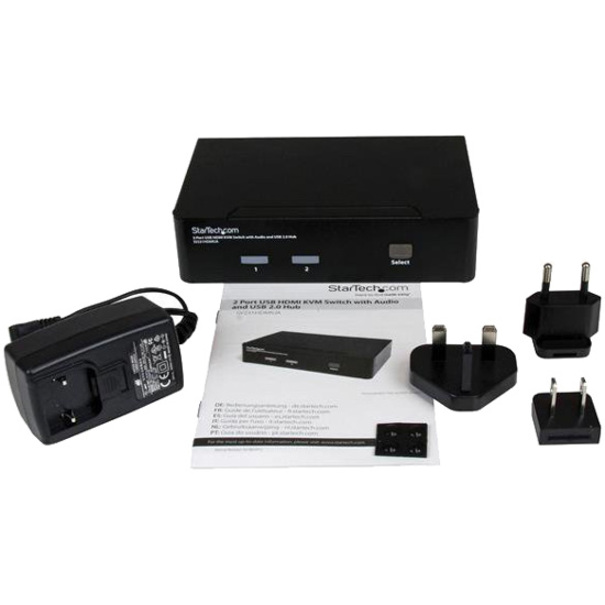

Package Contents

  • 2-Port USB HDMI KVM Switch with Audio and USB 2.0 Hub
  • 1 x User Manual
  • 1 x Power Adapter
  • 1 x Package of Rubber feet

Additional Information

  • Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC.
  • Versatile audio support for both HDMI audio and 3.5mm analog audio.
  • Integrated USB 2.0 hub and Mic/Audio switching allows the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices.

Environmentally Friendly

Yes

Environmental Certification

  • RoHS
  • REACH
  • WEEE

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

3 Year
