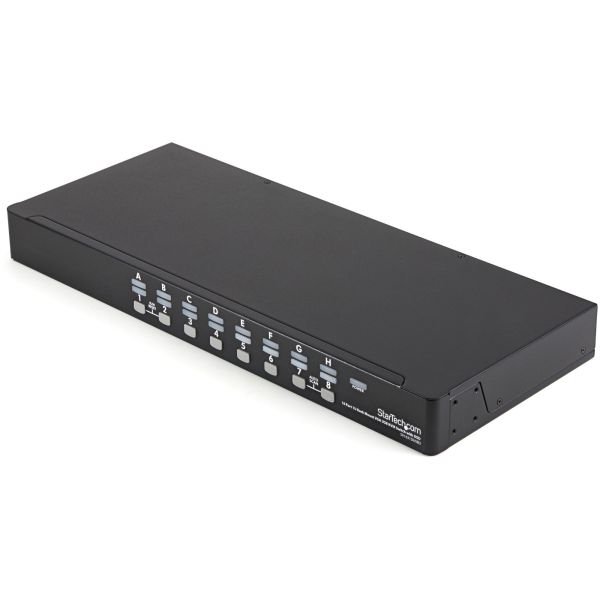

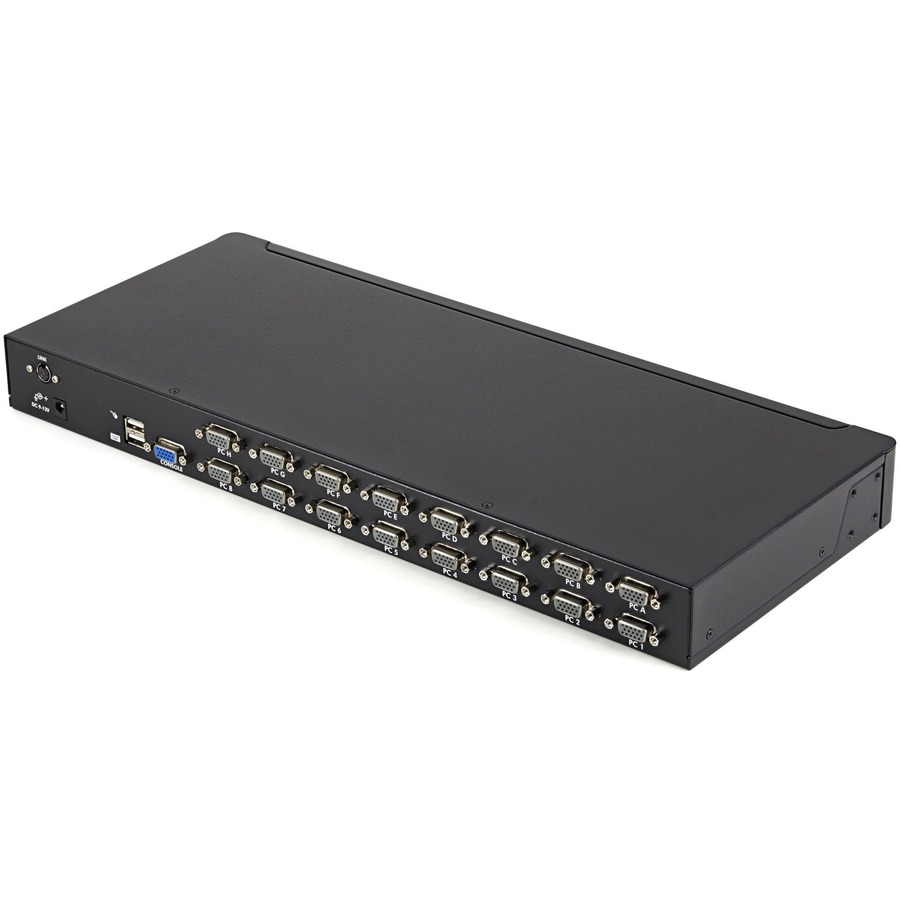

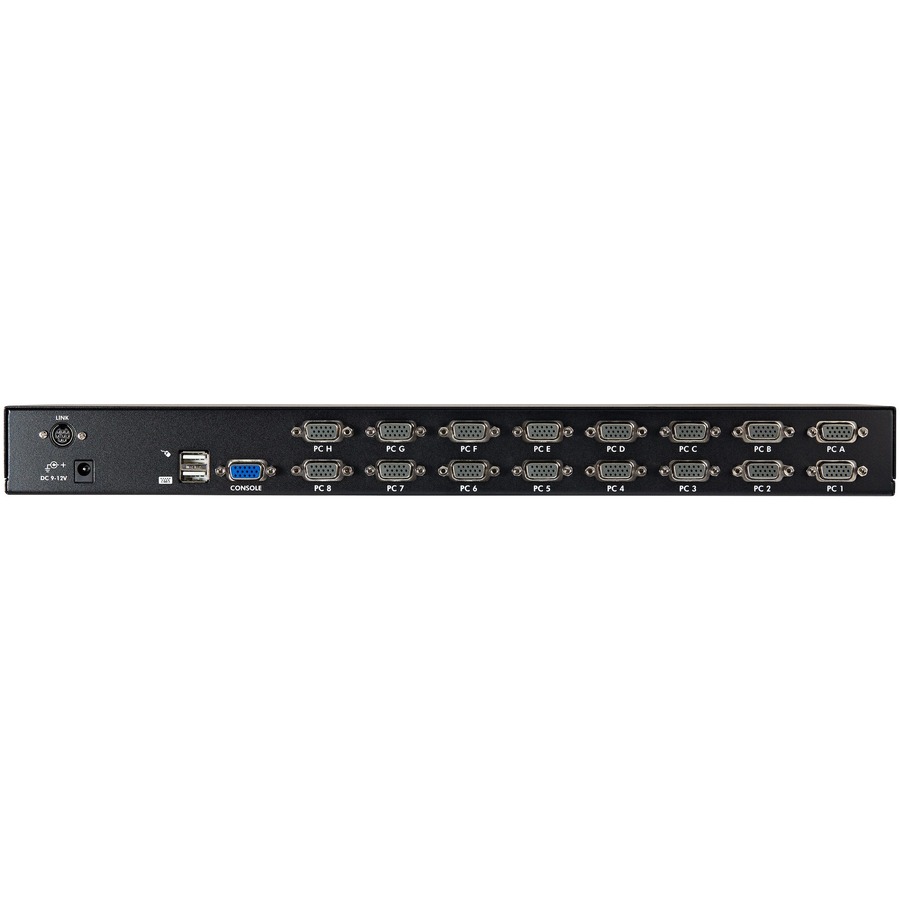

StarTech.com 16 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables

by
STARTECH
PCN#
DQ8748
MFG#
SV1631DUSBUK
$639.25
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • A complete 16
  • port USB KVM kit, including all necessary cables and accessories
  • usb kvm switch

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 15 lbs.
StarTech.com 16 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

SV1631DUSBUK

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Model

SV1631DUSBUK

Product Name

16 Port 1U Rack Mount USB KVM Switch Kit w/ OSD & Cables

Marketing Information

The SV1631DUSBUK 16 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 16 servers or PCs right out of the box, making setup convenient and simple.

The USB KVM delivers a dependable computer management tool that allows you to control up to 16 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.

A suitable addition to server room operations, the 16-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 136 computers from this single switch.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Packaged Quantity

1

Product Type

KVM Switchbox
Technical Information

Number of Computers Supported

16

Daisy Chain Supported

Yes
Video

Maximum Video Resolution

1920 x 1440
Interfaces/Ports

USB

Yes

VGA

Yes

Number of USB Ports

2

Number of VGA Ports

1
Power Description

Input Voltage

  • 110 V AC
  • 220 V AC

Input Voltage Range

110V AC to 240V AC
Physical Characteristics

Product Color

Black

Form Factor

  • Rack-mountable
  • Desktop

Rack Height

1U

Height

1.8"

Width

17.3"

Depth

7.5"

Weight (Approximate)

5.29 lb
Miscellaneous

Package Contents

  • 16 Port 1U Rack Mount USB KVM Switch Kit w/ OSD & Cables
  • 1 x Instruction Manual
  • 1 x Universal Power Adapter (NA/EU/UK/AU)
  • 4 x Foot Pads
  • 1 x Screw Kit

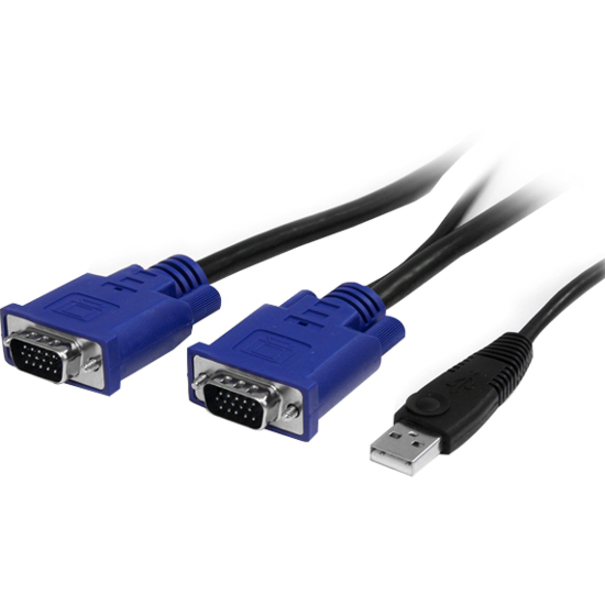

  • 16 x 6ft 2-in-1 USB VGA KVM cables
  • 2 x Mounting Brackets

Environmentally Friendly

Yes

Environmental Certification

  • RoHS
  • WEEE

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

3 Year
