StarTech.com VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender

by
STARTECH
PCN#
BH3733
MFG#
ST121UTPEP
$143.50
cps

Extended & Accidental Damage Product Replacement Plan Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Extend a VGA signal to a remote display using Cat5 cabling
  • vga extender
  • vga to cat5

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 2 lbs.
StarTech.com VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

ST121UTPEP

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender

Marketing Information

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5or better UTP cable, terminated with RJ45 connectors).

Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.

To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaged Quantity Condition

Kit

Product Type

Video Extender Transmitter/Receiver
Technical Information

Connectivity Technology

Wired

Number of Input Devices Supported

1

Number of Output Devices Supported

1

Maximum Operating Distance

262.47 ft
Video

Graphics Modes

WUXGA

Maximum Video Resolution

1920 x 1200
Interfaces/Ports

Network (RJ-45)

Yes

VGA In

Yes

VGA Out

Yes

Number of Network (RJ-45) Ports

2

Number of VGA Inputs

1

Number of VGA Outputs

1
Media & Performance

Media Type Supported

Twisted Pair

Twisted Pair Cable Standard

Category 5e
Physical Characteristics

Product Color

Black

Transmitter Height

1"

Transmitter Width

5.40"

Transmitter Depth

3.90"

Receiver Height

1"

Receiver Width

5.40"

Receiver Depth

3.90"

Transmitter Weight (Approximate)

9.28 oz

Receiver Weight (Approximate)

9.28 oz
Miscellaneous

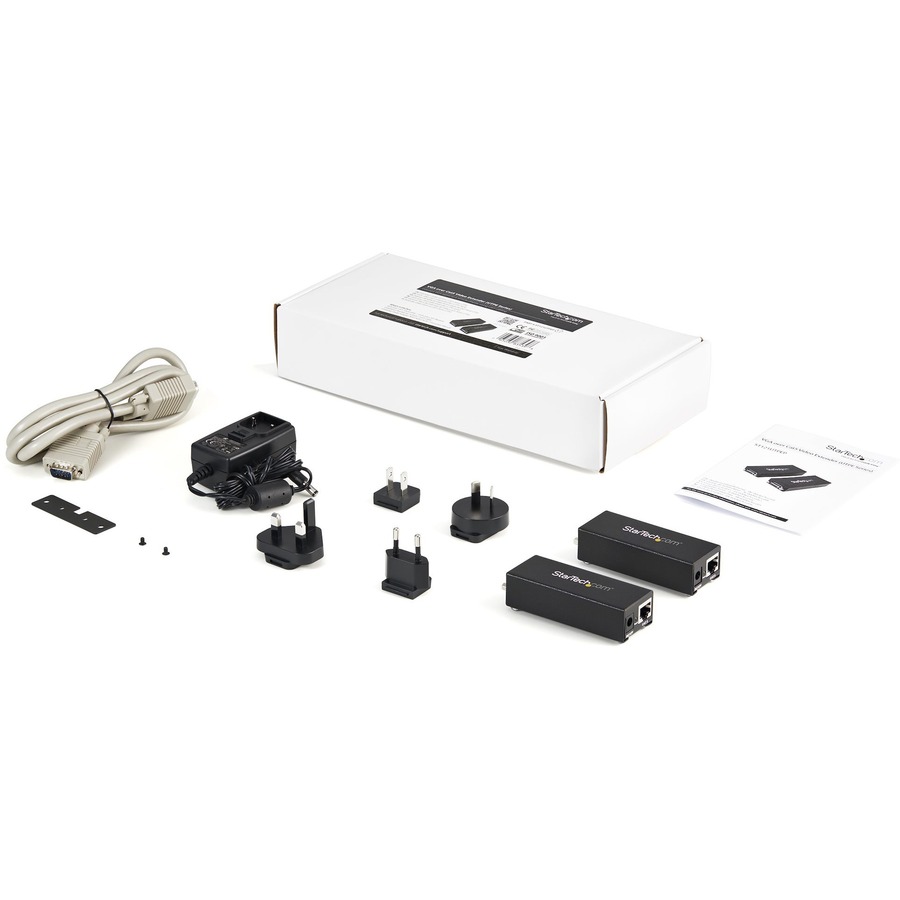

Package Contents

  • 1 x VGA over Cat5 Transmitter
  • 1 x VGA over Cat5 Receiver
  • 1 x Installation Bracket (w/ screws)
  • 1 x VGA Cable
  • 1 x Universal Power Adapter (NA/UK/EU/AUS)
  • 1 x Instruction Manual

Additional Information

  • Extends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment
  • Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation
  • The ST121UTPEP only requires one power adapter, installed at either the local or remote unit, wherever is most convenient for the application.

Certifications & Standards

  • CE
  • FCC

Environmentally Friendly

Yes

Environmental Certification

  • RoHS
  • WEEE
  • REACH

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

2 Year
