StarTech.com 8-Port VGA Video Extender over CAT5

by
STARTECH
PCN#
V07138
MFG#
ST1218T
$234.22
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1 x 8
  • SXGA
  • 500ft
Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 2 lbs.

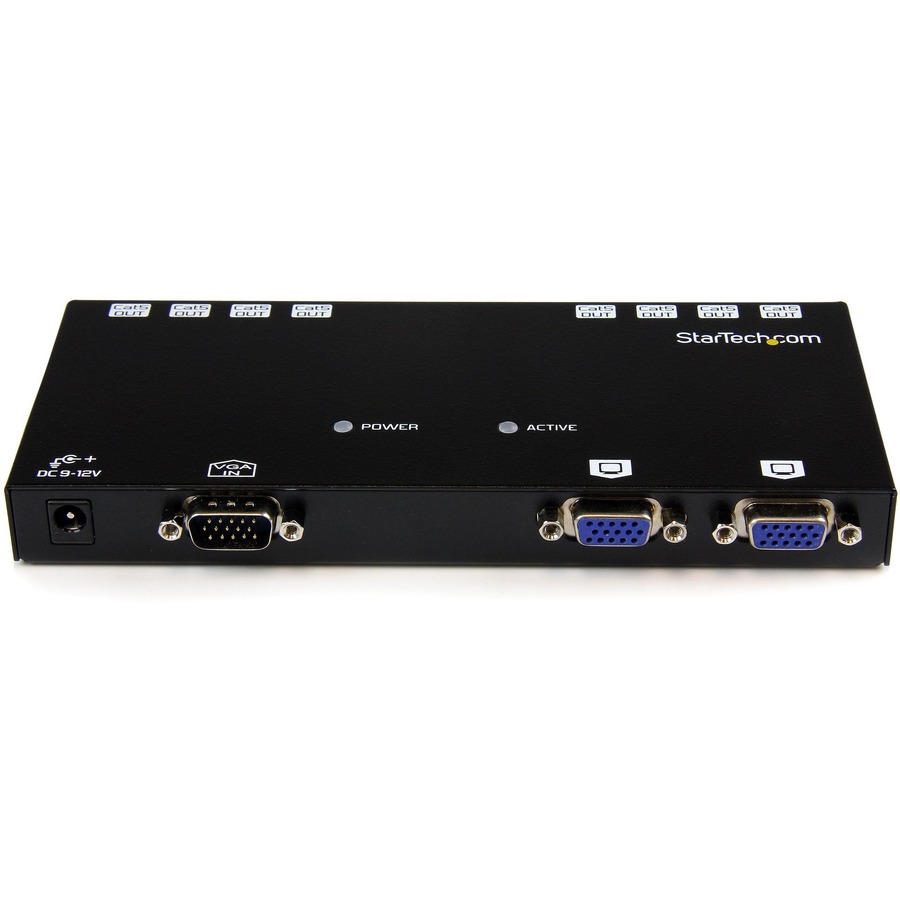

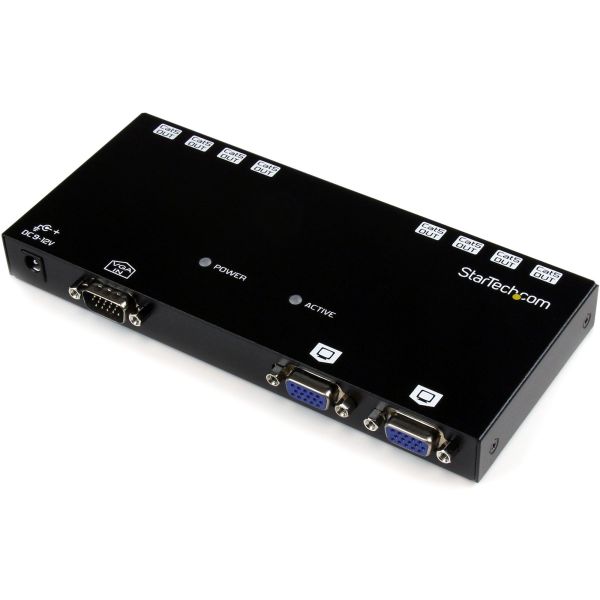

StarTech.com 8-Port VGA Video Extender over CAT5
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

ST1218T

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

8-Port VGA Video Extender over Cat 5

Marketing Information

The ST1218T 8 Port VGA Video Extender over Cat 5 is designed for use with our ST121 VGA over Cat 5 extension series, offering convenient VGA video distribution at distances of up to 492 feet (150 meters) using standard Cat 5 (or better) cabling.

Comprised of the transmitter unit only, the ST1218T requires one VGA over Cat 5 Repeater (ST121EXT) can be used to extend the distance between the transmitter and receiver by an additional 492-feet (150 meters), for a total distance of 984-feet (300 meters). Similarly, up to 3 repeater units can be used between transmitter and receiver, enabling you to connect monitors at each repeater, while still extending the total distance.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Product Type

Video Extender Transmitter
Technical Information

Connectivity Technology

Wired

Number of Input Devices Supported

1

Number of Output Devices Supported

8

Maximum Operating Distance

500 ft
Video

Graphics Modes

SXGA

Maximum Video Resolution

1280 x 1024
Media & Performance

Media Type Supported

Twisted Pair

Twisted Pair Cable Standard

Category 5
Physical Characteristics

Product Color

Black
Miscellaneous

Package Contents

  • 8-Port VGA Video Extender over CAT5
  • 1 x Power Adapter
  • 1 x Instruction Manual

Environmentally Friendly

Yes

Environmental Certification

  • REACH
  • RoHS
  • WEEE

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

2 Year
