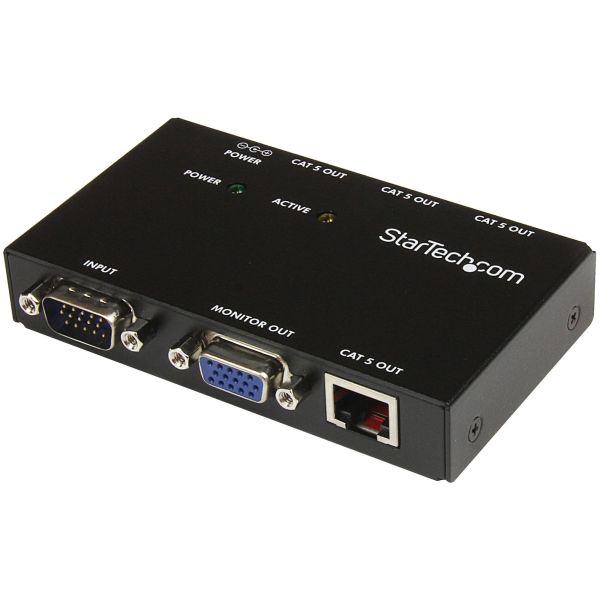

StarTech.com 4 Port VGA Over CAT5 Video Extender - 450ft (150m)

by
STARTECH
PCN#
N72331
MFG#
ST1214T
$153.23
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Extend and distribute a VGA signal to up to 4 displays over Cat5 cable
  • vga over cat5 extender
  • vga extender over cat5

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 2 lbs.
StarTech.com 4 Port VGA Over CAT5 Video Extender - 450ft (150m)
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

ST1214T

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

4 Port VGA Video Extender over Cat 5

Marketing Information

The ST1214T 4 Port VGA Video Extender over Cat 5 allows a single VGA source to be broadcast to up to four remote displays at distances of up to 500 feet (150 meters). Designed for use with our ST121 VGA Video over Cat 5 extension series of devices, the ST1214T is one of many options designed to help you create a custom VGA distribution and extension solution for many applications including digital signage and video conferencing.

Consisting of the transmitter unit only, this product requires a single ST121EXT VGA over Cat 5 Repeater can be used to increase the total VGA extension distance by an additional 500 feet(150 meters), allowing the original VGA signal to be broadcast a total distance of 1000 feet (300 meters) from transmitter to receiver. Similarly, up to three repeater units can be used between the transmitter and receiver units allowing a monitor to be connected at each repeater station , while further extending the total distance between the transmitter and receiver units.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Product Type

Video Extender Transmitter
Technical Information

Connectivity Technology

Wired

Number of Input Devices Supported

1

Maximum Operating Distance

492.13 ft
Video

Graphics Modes

VGA

Maximum Video Resolution

1600 x 1200
Interfaces/Ports

Network (RJ-45)

Yes

VGA In

Yes

VGA Out

Yes

Number of Network (RJ-45) Ports

4

Number of VGA Inputs

1

Number of VGA Outputs

1
Media & Performance

Media Type Supported

Twisted Pair

Twisted Pair Cable Standard

Category 5
Power Description

Input Voltage

9 V DC
Physical Characteristics

Product Color

Black

Transmitter Height

0.80"

Transmitter Width

2.50"

Transmitter Depth

4.10"

Form Factor

Desktop

Transmitter Weight (Approximate)

7.09 oz
Miscellaneous

Package Contents

  • 4 Port VGA Video Extender over Cat 5
  • 4 x Rubber Feet
  • 1 x Universal Power Adapter (NA/UK/EU)

Environmentally Friendly

Yes

Environmental Certification

  • RoHS
  • WEEE
  • REACH

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

2 Year
