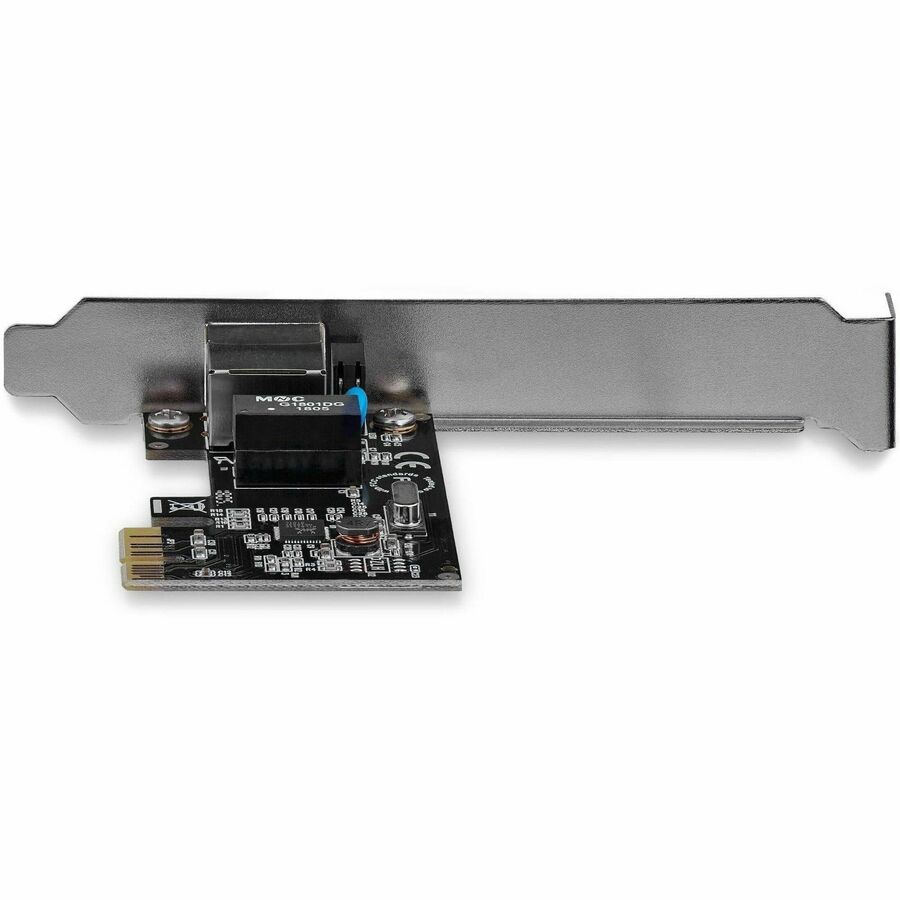

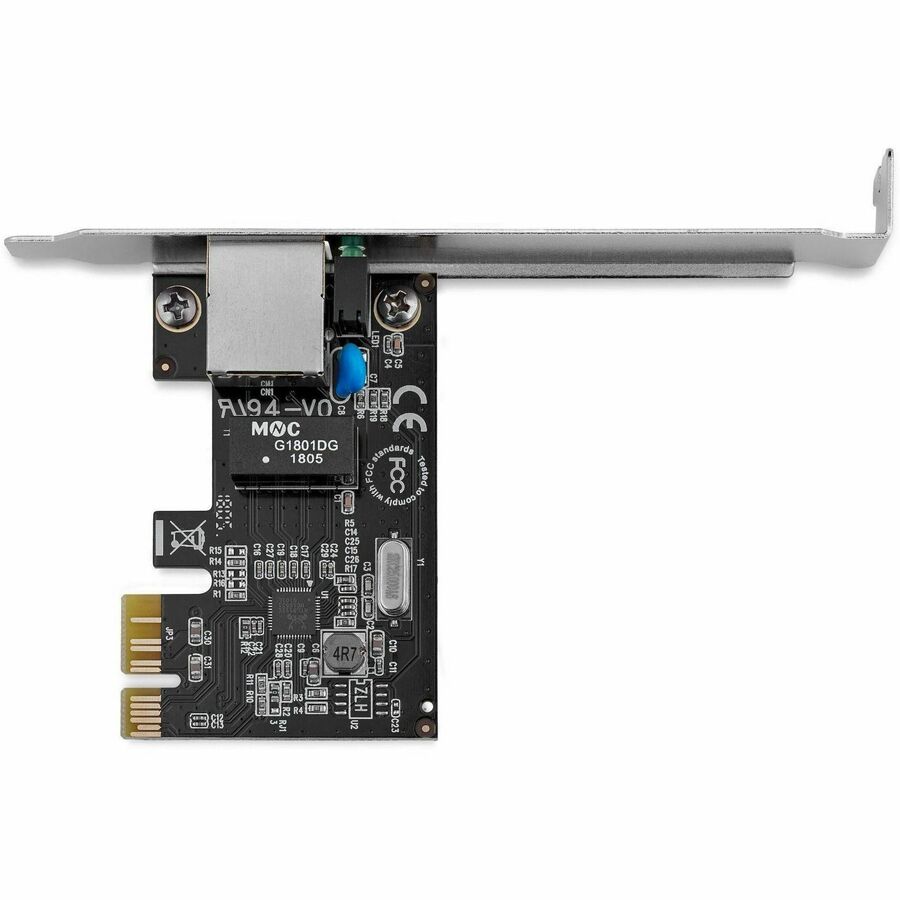

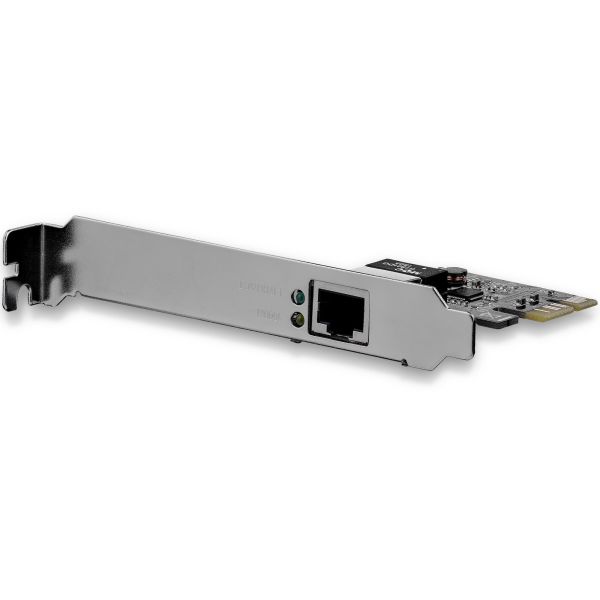

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile

by
STARTECH
PCN#
QR3885
MFG#
ST1000SPEX2
$28.66
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
  • pci express gigabit network card
  • pci express gigabit lan card

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

ST1000SPEX2

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile

Marketing Information

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.

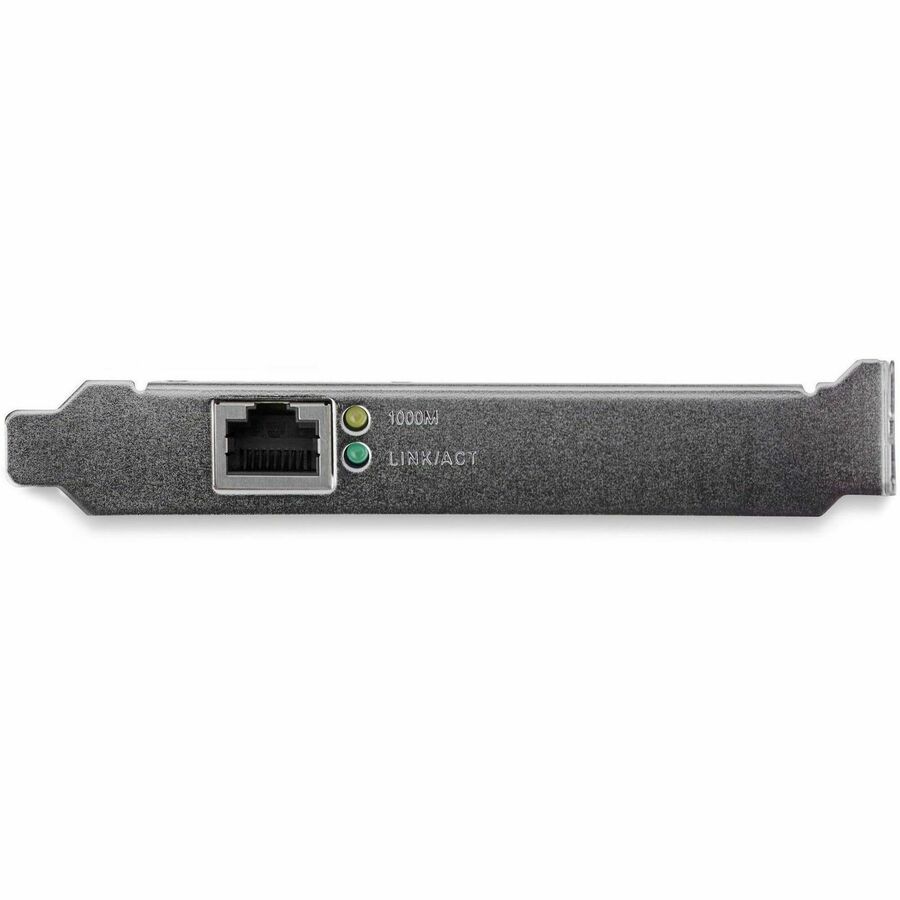

Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.

The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Packaged Quantity

1

Product Type

Gigabit Ethernet Card
Technical Information

Chipset Manufacturer

Realtek

Chipset Model

RTL8111
Interfaces/Ports

Host Interface

PCI Express x1

Total Number of Ports

1

Network (RJ-45)

Yes

USB

No

Serial Port

No

Ethernet AUI

No

XJACK

No

PoE (RJ-45) Port

No

Number of Network (RJ-45) Ports

1
Media & Performance

Media Type Supported

Twisted Pair

Data Transfer Rate

125 MB/s
Network & Communication

Network Technology

10/100/1000Base-T

InfiniBand

No
Physical Characteristics

Card Height

  • Full-height
  • Low-profile

Form Factor

Plug-in Card

Height

0.7"

Width

4.7"

Length

2.7"

Weight (Approximate)

1.30 oz
Miscellaneous

Package Contents

  • 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
  • 1 x Low Profile Bracket
  • 1 x Instruction Manual

Device Supported

PC

System Requirements

  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS X® 10.6 to 10.9
  • Linux 2.4.x to 4.11.x LTS Versions Only

Environmentally Friendly

Yes

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Country of Origin

China
Warranty

Limited Warranty

2 Year
