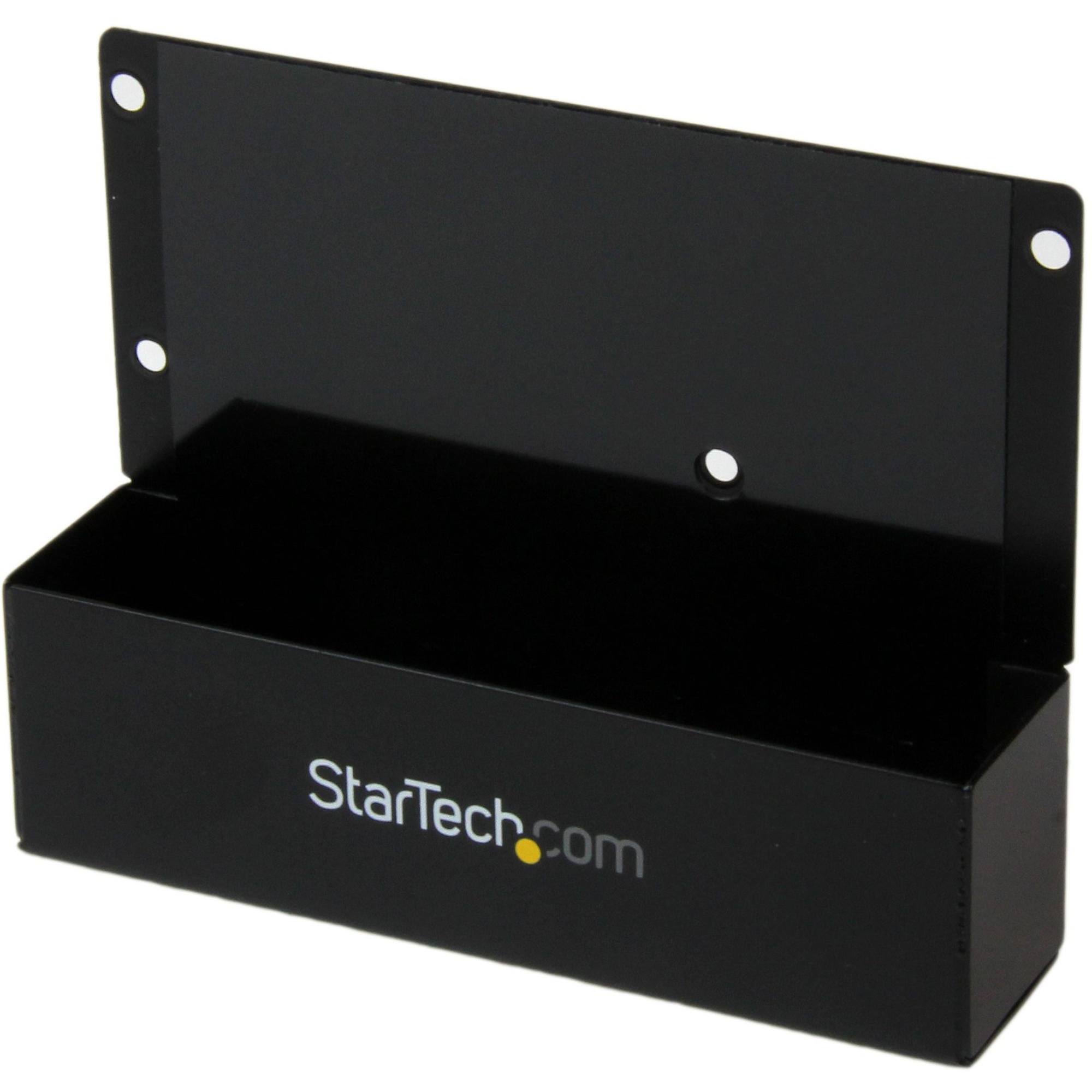

StarTech.com SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).

The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.

The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators.

Backed by 2-year warranty and free, lifetime technical support.

• SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks
• 1 x 40-pin IDE Cable
• 1 x 40-pin to 44-pin IDE Cable with Power
• 1 x SP4 to LP4 Power Cable
• 1 x Package of Mounting Screws
• 1 x Installation Guide

• Connector Type(s): 1 - SP4 (4 pin, Small Drive Power)
• Drive Connectors: 1 - LP4 (4 pin; Large Drive Power); 1 - IDE (40 Pin, EIDE/PATA); 1 - IDE (44 Pin, EIDE/PATA, 2.5" HDD)
• Host Connectors: 1 - SATA Power (15 pin); 1 - SATA (7 pin, Data)
• Number of Drives: 1
• Drive Size: 2.5in & 3.5in
• Compatible Drive Types: IDE (ATA)
• Drive Installation: Fixed
• Fan(s): No
• Chipset ID: JMicron - JM20330
• LBA support: 48-bit

• FCC
• CE
