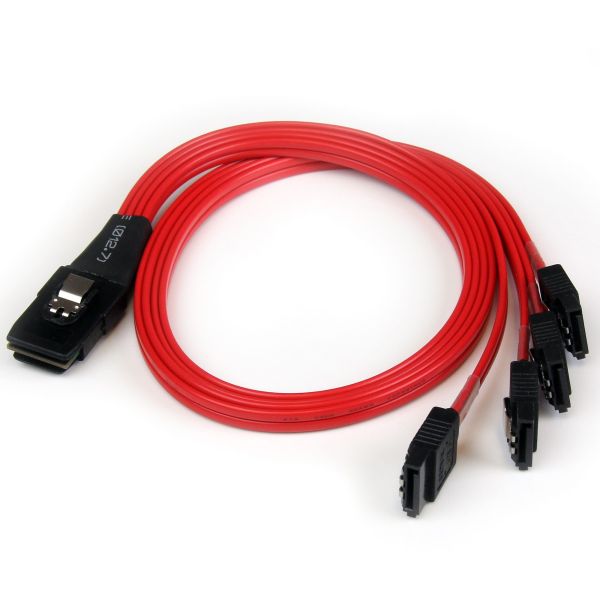

StarTech.com 50cm SFF-8087 to 4x SATA - Internal Mini SAS to SATA Reverse Cable

Name: StarTech.com 50cm SFF-8087 to 4x SATA - Internal Mini SAS to SATA Reverse Cable
Brand: STARTECH
SKU: PT7403
Price: 30.4 USD
Availability: InStock

STARTECH

PCN#

PT7403

MFG#

SAS8087S4R50

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$30.40

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $11.99

1-Year $8.99

Estimated Shipment:

Product Highlights:

Connect a Mini SAS backplane to a SAS / SATA RAID controller or motherboard
sff
8087 to 4x sata
internal mini sas to sata
sff 8087 to sata
sas to sata cable
serial attached scsi to sata

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

StarTech.com 50cm SFF-8087 to 4x SATA - Internal Mini SAS to SATA Reverse Cable

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	SAS8087S4R50
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	50cm SFF-8087 to 4x SATA - Internal Mini SAS to SATA Reverse Cable
Marketing Information	The SAS8087S4R50 SFF-8087 to 4x SATA Reverse cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting a Mini SAS backplane to a SAS / SATA RAID controller or motherboard. Designed for long-lasting dependability and reliability, the Mini SAS to SATA cable is backed by StarTech.com's lifetime warranty.
Packaged Quantity	1
Product Type	Data Transfer Cable

Technical Information

Cable Type	SAS/SATA
Cable Characteristic	Fan-out Cable
Cable Length	1.64 ft

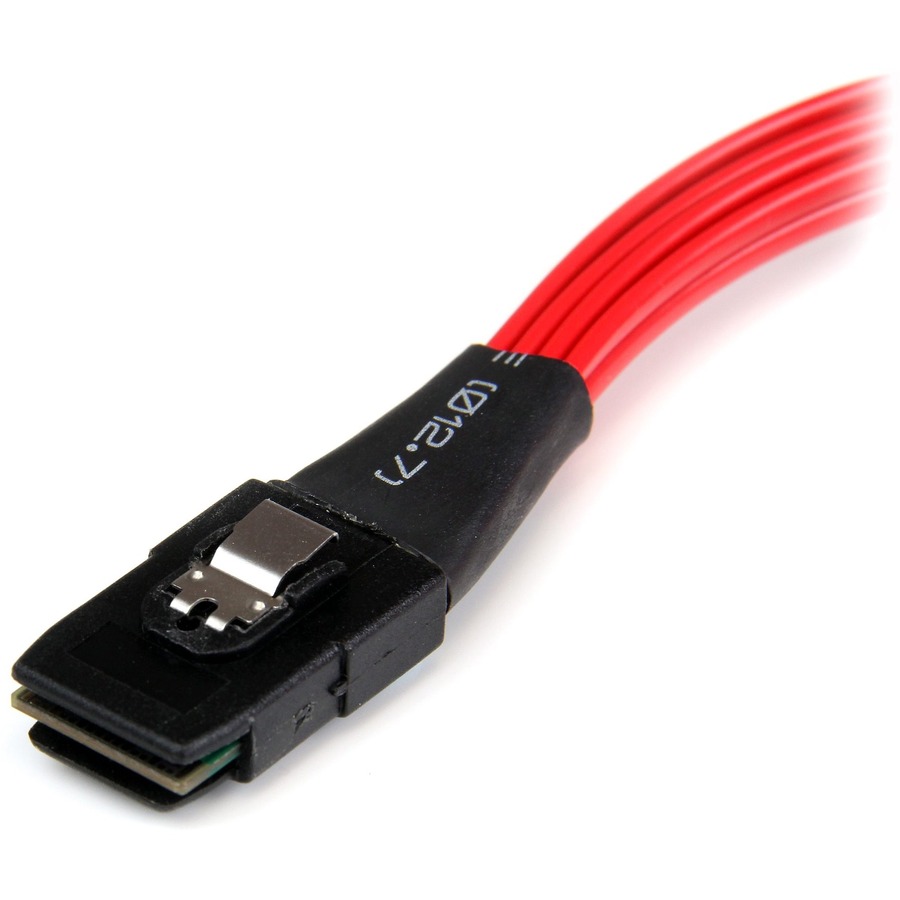

Connector Type on First End	SFF-8087 Mini-SAS - Male
Connector Gender on First End	Male
Connector on First End Details	1 x 36-pin SFF-8087 Mini-SAS - Male

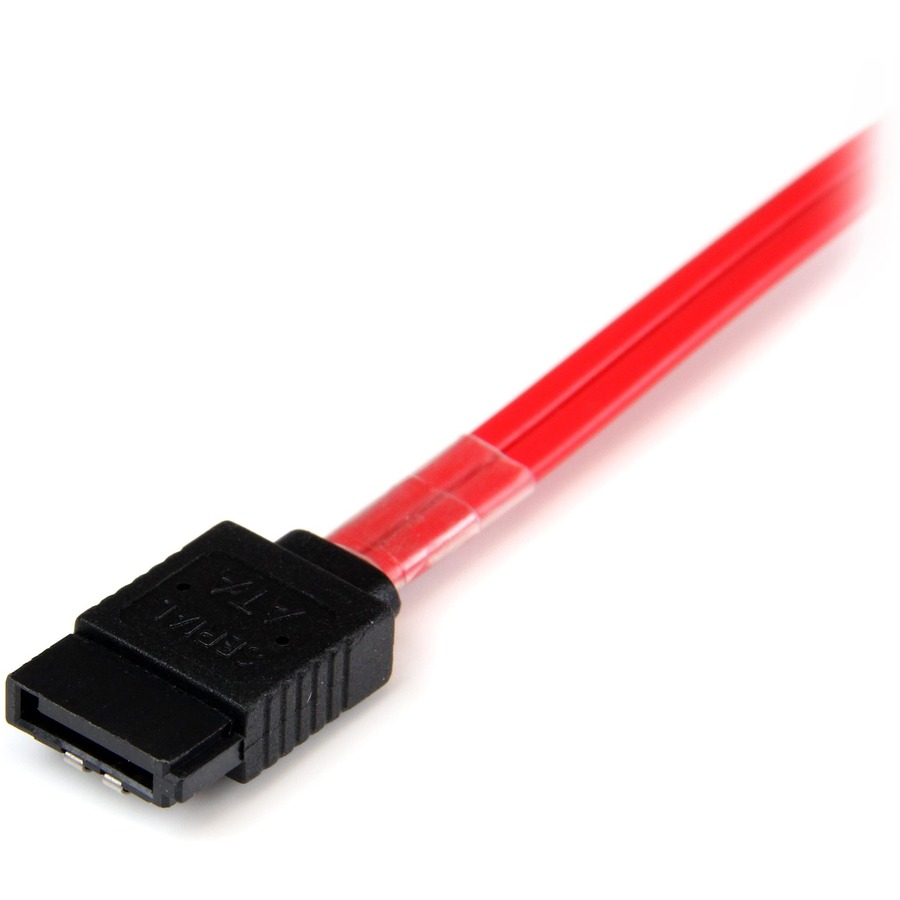

Connector Type on Second End	SATA 3.0 - Female
Connector Gender on Second End	Female
Connector on Second End Details	4 x 7-pin SATA 3.0 - Female
Conductor	Copper
Device Supported	Motherboard Storage Equipment SAS Controller RAID Controller
American Wire Gauge	30 AWG
Data Transfer Rate	6 Gbit/s
Features	Reversible Locking Latch Latching Connector

Physical Characteristics

Color Family	Red
Product Color	Red
Weight (Approximate)	0.10 lb

Miscellaneous

Environmentally Friendly	Yes
Country of Origin	China

Warranty

Limited Warranty

Lifetime
