StarTech.com 1m Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA

Name: StarTech.com 1m Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA
Brand: STARTECH
SKU: PG5616
Price: 41.46 USD
Availability: InStock

STARTECH

PCN#

PG5616

MFG#

SAS8087S4100

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$41.46

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

Connect a SATA/SAS Controller to 4 SATA drives
mini sas to sata
sff 8087 to sata
sas to sata cable
serial attached scsi to sata

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

StarTech.com 1m Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	SAS8087S4100
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	1m Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA

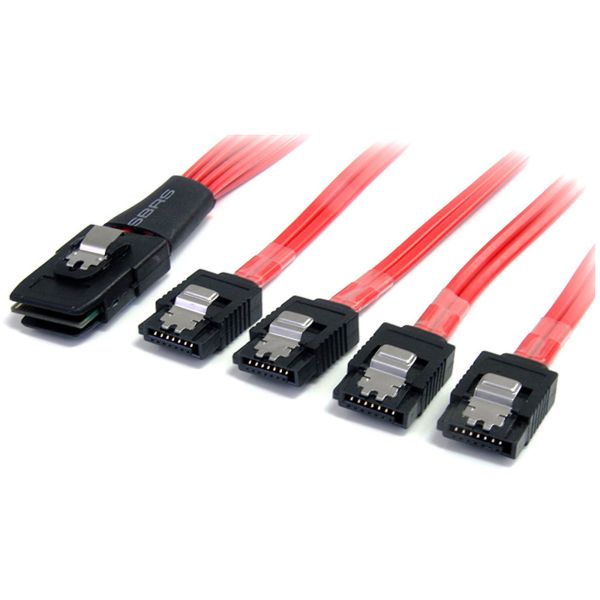

Marketing Information	The SAS8087S4100 SFF-8087 to 4x SATA SAS cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting a SATA HDD to a SAS controller or backplane. Designed and constructed for long-lasting dependability and reliability, the 1m (39.37in) SFF-8087 to 4x SATA SAS cable is backed by lifetime warranty.
Packaged Quantity	1
Product Type	Data Transfer Cable

Technical Information

Cable Type	SAS/SATA
Cable Characteristic	Fan-out Cable
Cable Length	3.28 ft

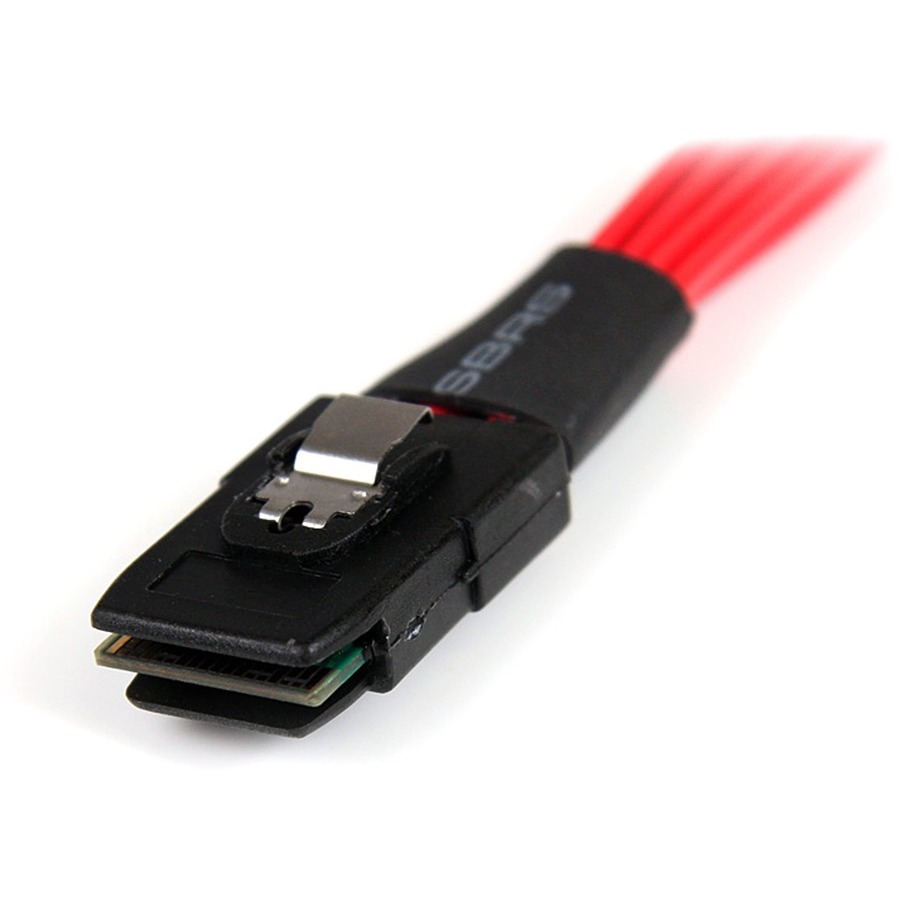

Connector Type on First End	SFF-8087 Mini-SAS - Male
Connector Gender on First End	Male
Connector on First End Details	1 x 36-pin SFF-8087 Mini-SAS - Male

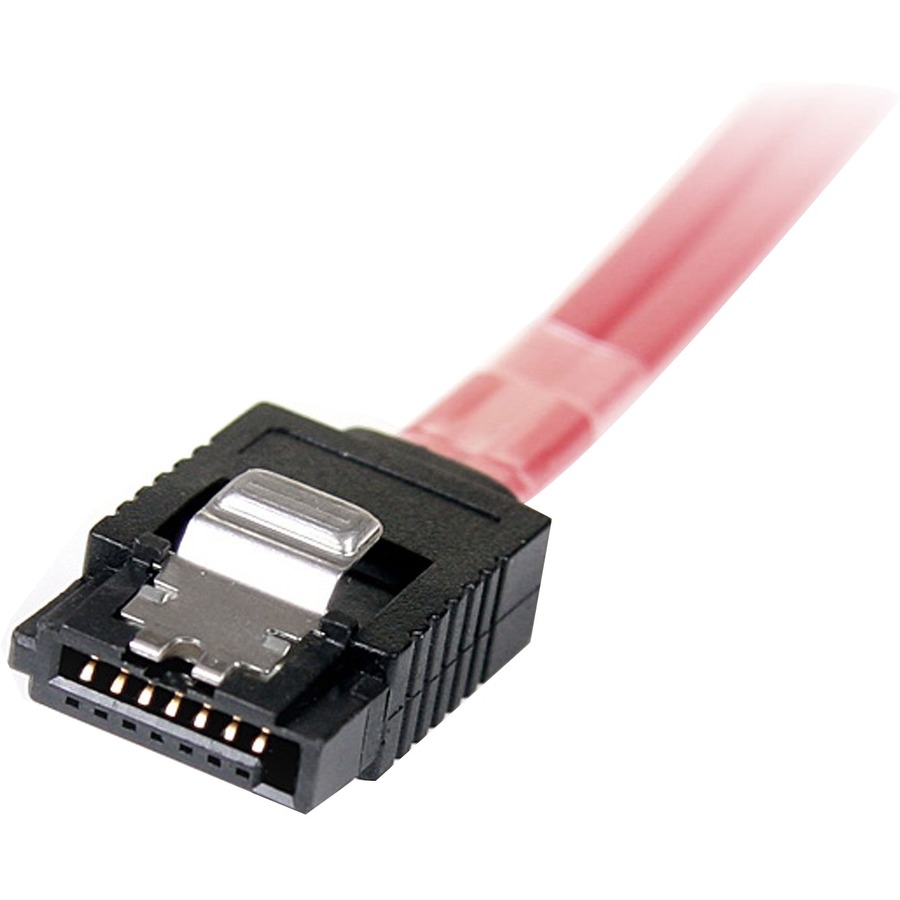

Connector Type on Second End	SATA 3.0 - Male
Connector Gender on Second End	Male
Connector on Second End Details	4 x 7-pin SATA 3.0 - Male
Conductor	Copper
Device Supported	Hard Drive SAS Controller Backplane
American Wire Gauge	30 AWG
Data Transfer Rate	6 Gbit/s
Features	Latching Connector

Physical Characteristics

Product Color	Red
Weight (Approximate)	0.17 lb

Miscellaneous

Environmentally Friendly	Yes
Country of Origin	China

Warranty

Limited Warranty

Lifetime
