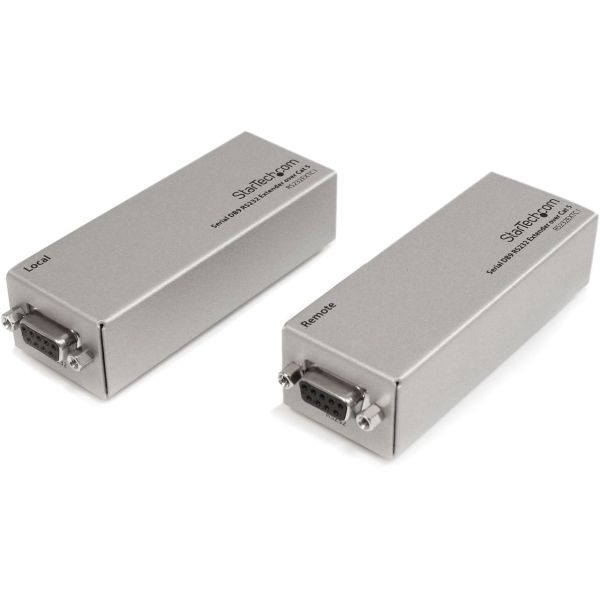

StarTech.com Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)

by
STARTECH
PCN#
GV9498
MFG#
RS232EXTC1
$108.30
cps

Extended & Accidental Damage Product Replacement Plan Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling
Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 2 lbs.
StarTech.com Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

RS232EXTC1

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)

Marketing Information

The RS232EXTC1 Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit.

The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling.

Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Type

Serial Extender
Technical Information

Maximum Extended Range

3280.84 ft

Maximum Data Transfer Rate

230 kB/s
Interfaces/Ports

Network (RJ-45)

Yes

Number of Network (RJ-45) Ports

2
Power Description

Input Voltage

230 V AC
Physical Characteristics

Product Color

Silver

Product Material

Steel

Height

0.9"

Width

1.3"

Length

3.6"
Miscellaneous

Package Contents

  • RS232 Extender Local Unit
  • RS232 Extender Remote Unit
  • 20cm Null Modem cable (DB-9 Male to Male)
  • Power Adapter
  • User Manual

Additional Information

  • Enables use of separate control rooms away from harsh environmental conditions where serial devices may be located
  • Provides you with flexibility when choosing the location of your serial peripherals by dramatically increasing the maximum RS232 serial cable length
  • Pure hardware design, no software or drivers required ensuring a simple plug and play installation

Environmentally Friendly

Yes

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

2 Year
