StarTech.com 2 Port 16in DB9 Serial Port Bracket to 10 Pin Header

Name: StarTech.com 2 Port 16in DB9 Serial Port Bracket to 10 Pin Header
Brand: STARTECH
SKU: PG5613
Price: 10.98 USD
Availability: InStock

STARTECH

PCN#

PG5613

MFG#

PLATE9M2P16

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$10.98

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $5.99

2-Year $7.99

Estimated Shipment:

Product Highlights:

Add two extra serial ports to the back of your PC, from your motherboard
db9 bracket
db9 header
serial port bracket
serial port header

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

StarTech.com 2 Port 16in DB9 Serial Port Bracket to 10 Pin Header

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	PLATE9M2P16
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	2 Port 16in DB9 Serial Port Bracket to 10 Pin Header

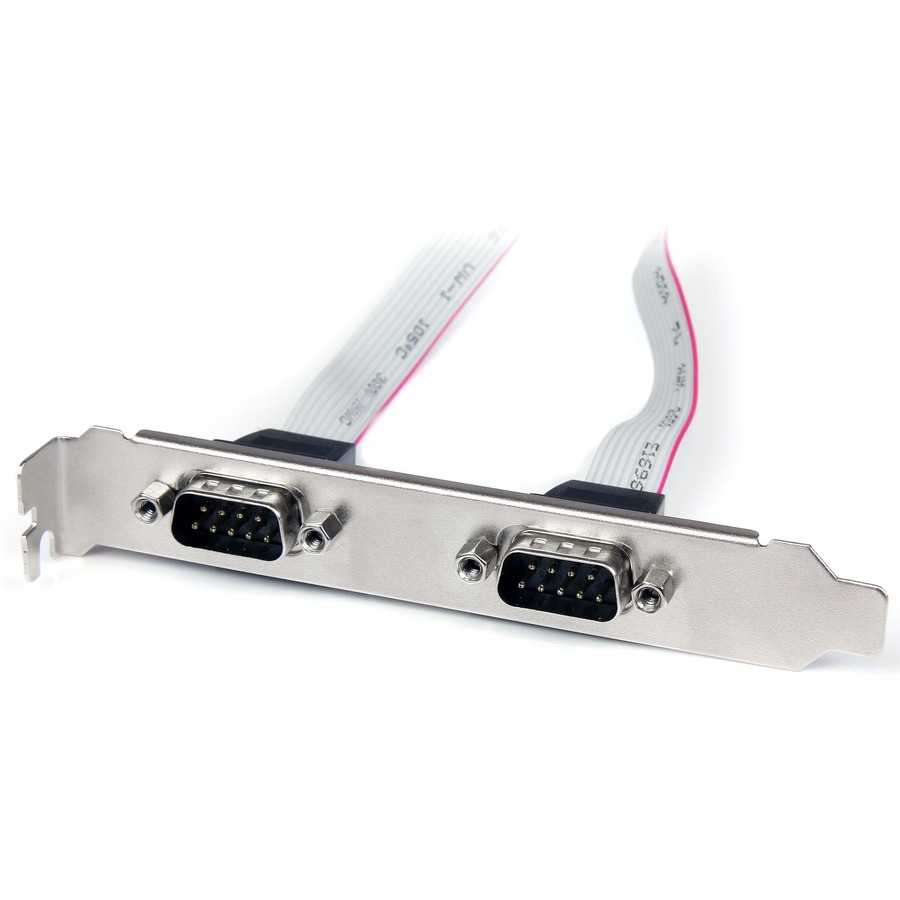

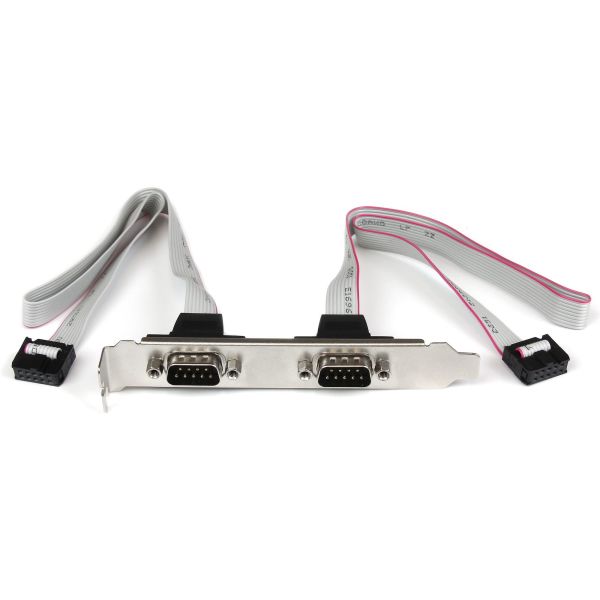

Marketing Information	The PLATE9M2P16 Dual Port Serial Plate adds two DB9 serial ports to the rear panel of a computer, connecting to two IDC10 header connectors on the motherboard. Constructed of high quality components, this durable dual port serial bracket is backed by StarTech.com's lifetime warranty. Please refer to this product's Technical Specifications to ensure compatibility with your motherboard.
Packaged Quantity	1
Product Type	Data Transfer Cable

Technical Information

Cable Type	IDC/Serial
Cable Length	1.33 ft
Connector Type on First End	IDC - Female

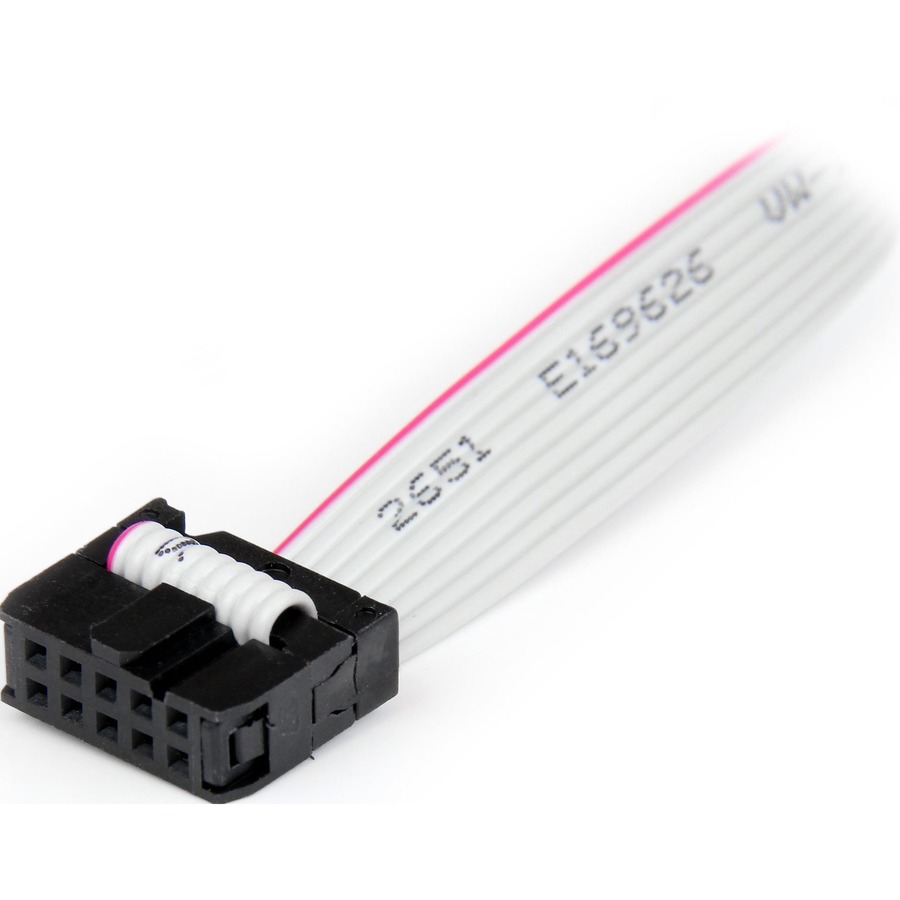

Connector on First End Details	2 x 10-pin IDC - Female
Connector Type on Second End	DB-9 Serial - Male
Connector on Second End Details	2 x 9-pin DB-9 Serial - Male
Conductor	Copper
Device Supported	Motherboard POS Device PC
American Wire Gauge	28 AWG

Physical Characteristics

Product Color	Gray
Weight (Approximate)	0.11 lb

Miscellaneous

Environmentally Friendly	Yes
Country of Origin	China

Warranty

Limited Warranty

Lifetime
