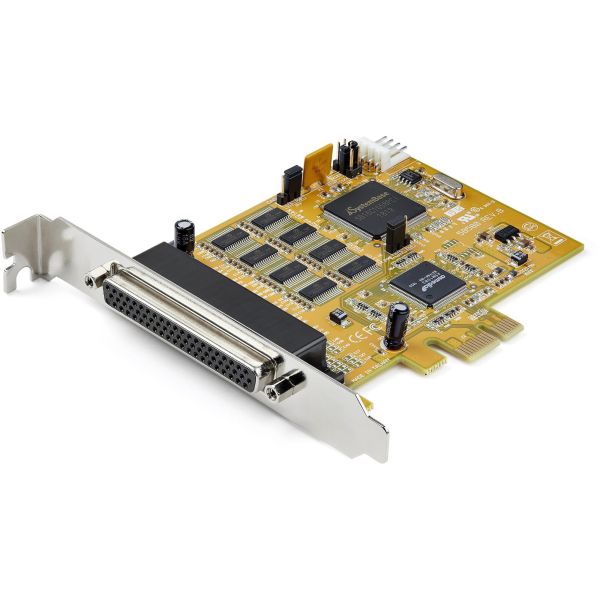

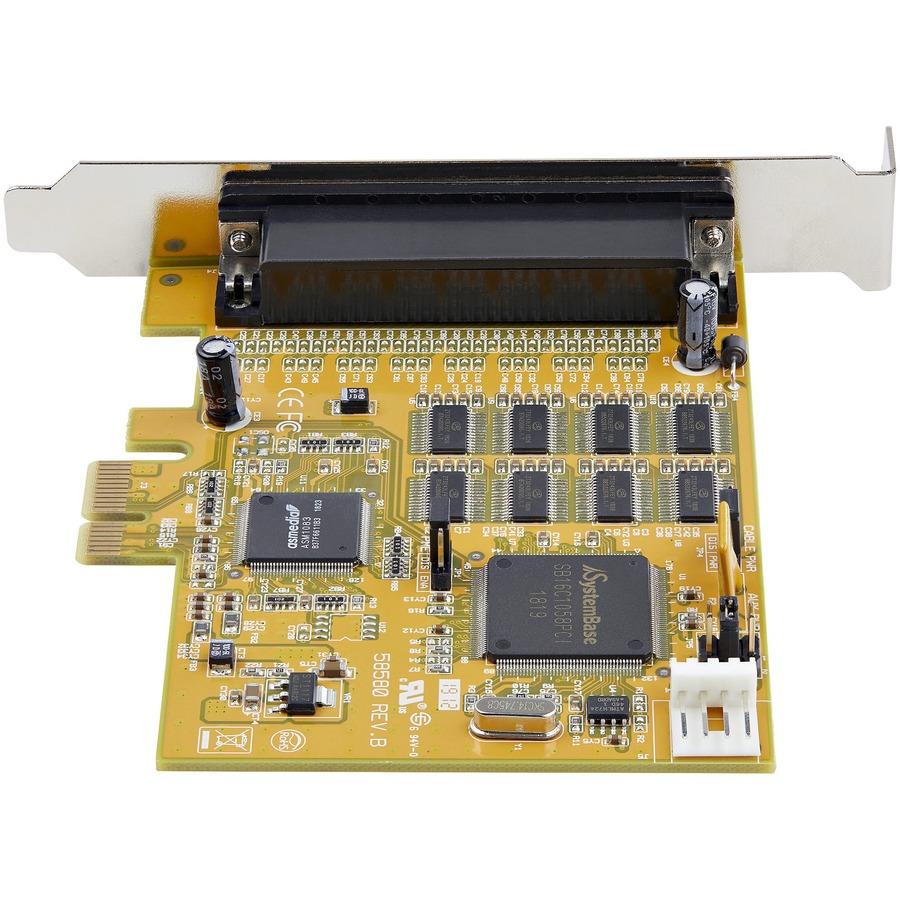

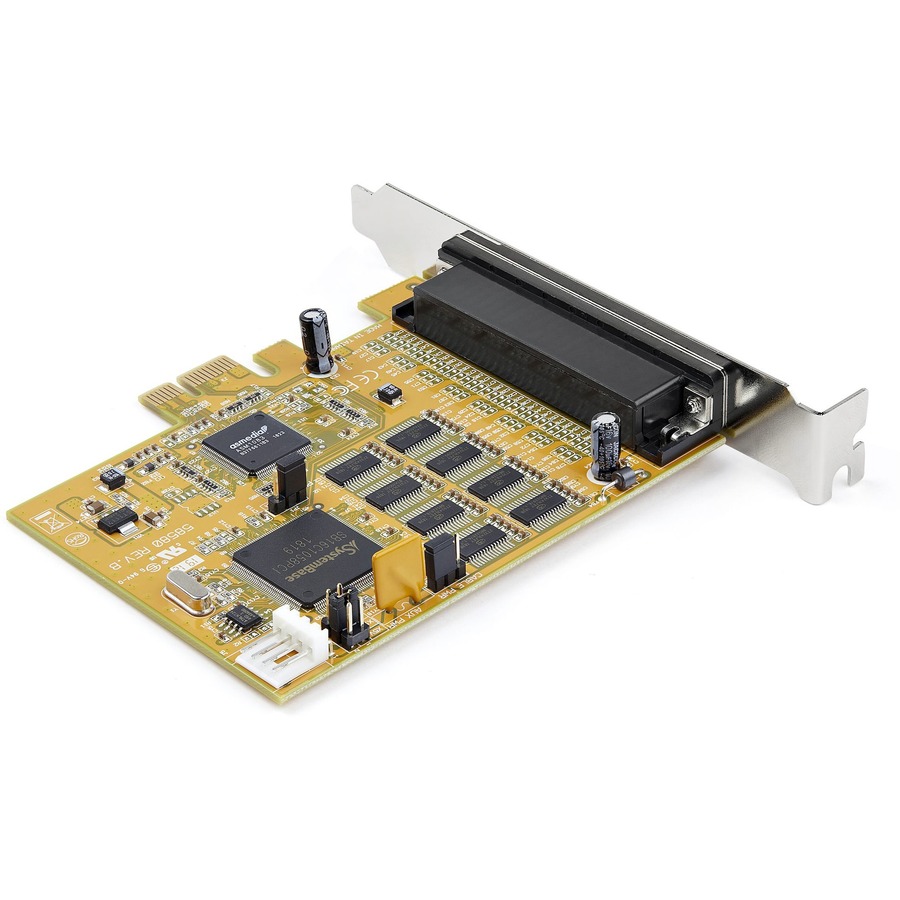

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe to Serial DB9 RS232 Controller Card - 16C1050 UART - 15kV ESD - Win/Linux

Name: StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe to Serial DB9 RS232 Controller Card - 16C1050 UART - 15kV ESD - Win/Linux
Brand: STARTECH
SKU: 8JB275
Price: 195.4 USD
Availability: InStock

STARTECH

PCN#

8JB275

MFG#

PEX8S1050

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$195.40

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

8
port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD/Systembase SB16C1058PCI
Bi
directional speed 921.6Kbps/port | 256 byte FIFO
Expansion controller card w/pin 9 power 5v/12v/none w/3A max

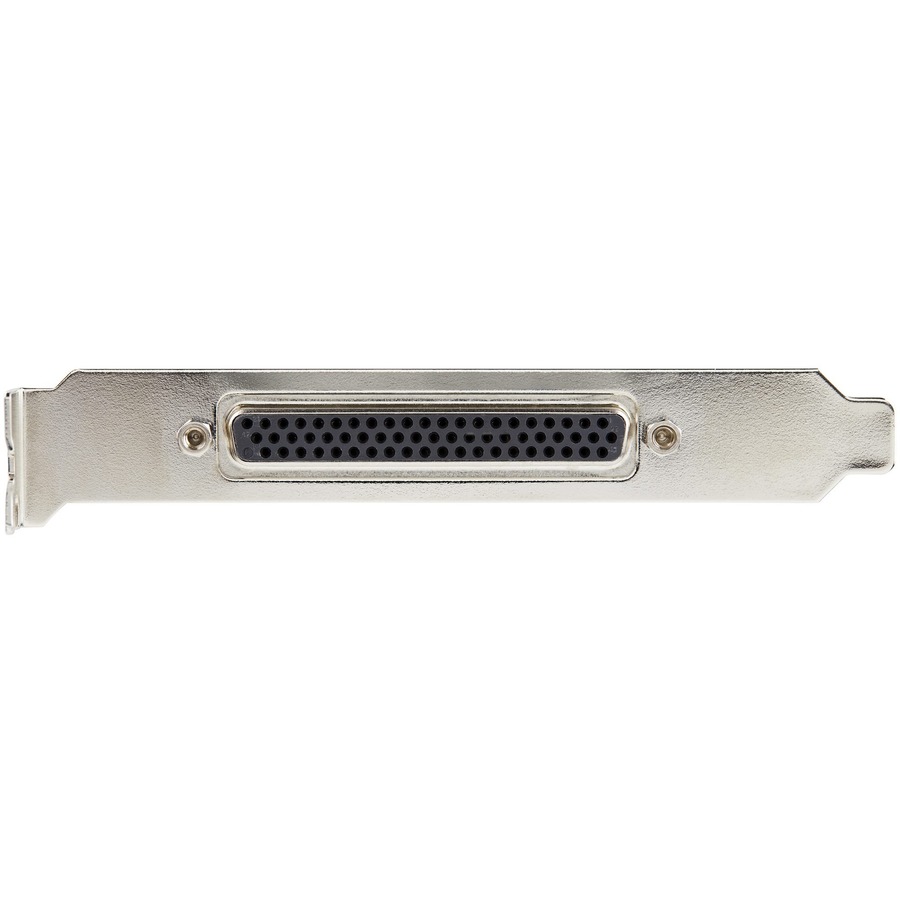

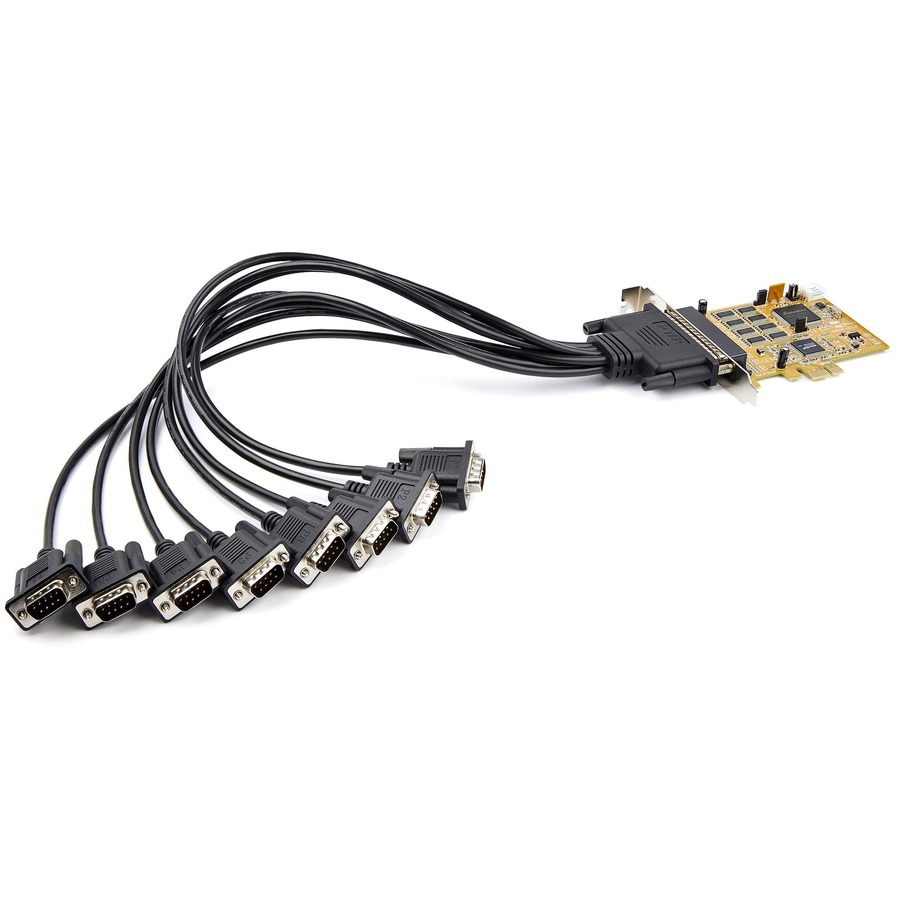

DB62 to DB9 cable w/Hex nuts
Win/Linux

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe to Serial DB9 RS232 Controller Card - 16C1050 UART - 15kV ESD - Win/Linux

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	PEX8S1050
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	PCIe Serial Card
Marketing Information	Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps. Connect your Peripherals with 8 Serial Ports The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. PEX8S1050 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Product Type	Multiport Serial Adapter

Technical Information

Host Interface	PCI Express 1.0a x1
Maximum Data Transfer Rate	921.40 kbit/s
UART Type	16C1050
Platform Supported	Linux PC

Interfaces/Ports

Number of Serial Ports	1
Ports Expandability	8 x DB-9 RS-232 - Serial, Via Cable

Physical Characteristics

Product Color	Yellow
Form Factor	Plug-in Card
Height	4.7"
Width	0.6"
Weight (Approximate)	2.60 oz

Miscellaneous

Package Contents	PCIe Serial Card 1 x DB62 to 8 Port DB9 Breakout Cable 1 x Quick Start Guide 8 x Optional DB9 Connector Hex Nut Pairs
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime
