StarTech.com PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card

by
STARTECH
PCN#
XQ5296
MFG#
PEX867WAC22
$89.90
cps

Extended & Accidental Damage Product Replacement Plan Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Add high speed 802.11ac WiFi connectivity to a desktop PC through a PCI Express slot with dual band 2.4 / 5GHz frequencies and up to 867Mbps
  • PCI Express AC1200 Dual Band Wireless
  • AC Network Adapter

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
StarTech.com PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

PEX867WAC22

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

PCI Express Wireless AC Card

Marketing Information

The PEX867WAC22 PCI Express AC1200 Wireless Network Adapter lets you add dual-band Wireless-AC connectivity to a desktop computer through a PCIe slot.

With increased demand on network resources, this Wireless-AC adapter gives you exceptional speed and range for your office or home wireless network when paired with an 802.11ac router. This dual-band WiFi adapter supports maximum data rates of up to 867 Mbps on the 5GHz band (3x the speed of Wireless-N), plus up to 300 Mbps on the 2.4GHz band, making it the perfect solution for applications like HD video streaming, online conferencing, file transfers and gaming.

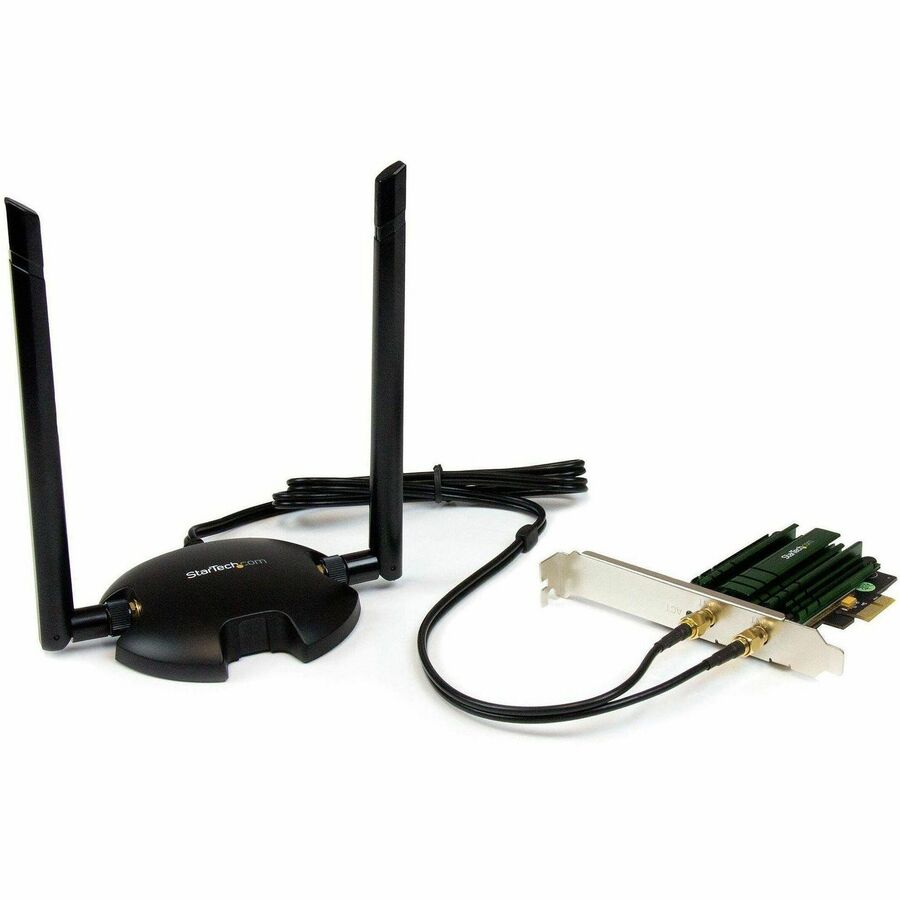

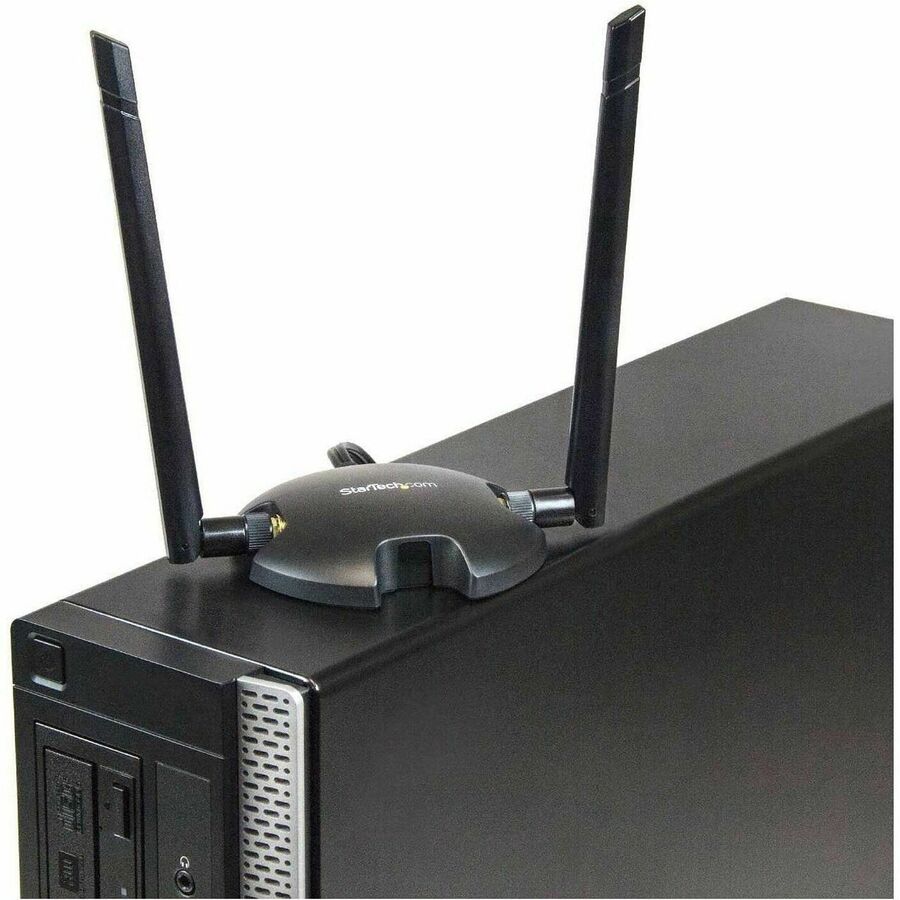

This versatile PCIe wireless card features a 2T2R (2 transmitter, 2 receiver) detachable antenna design, with an included magnetic antenna stand that can easily be mounted to the top or side of your PC case. Plus, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. To integrate with all of your networking devices, the adapter is also backward compatible with 802.11a/b/g/n networks.

Backed by a StarTech.com 2-year warranty, with free lifetime technical support.

Packaged Quantity

1

Product Type

Wi-Fi Adapter
Technical Information

Wi-Fi Generation

Wi-Fi 5

Wireless LAN Standard

IEEE 802.11ac

ISM Band

Yes

UNII Band

Yes

ISM Minimum Frequency

2.40 GHz

ISM Maximum Frequency

2.48 GHz

UNII Minimum Frequency

5.18 GHz

UNII Maximum Frequency

5.85 GHz

Number of Antennas

2

Antenna Gain (Isotropic)

5 dBi

Antenna Connector

RP-SMA Connector

Wireless Transmission Speed

1.17 Gbit/s

Wireless Security

  • WEP (64/128-bit)
  • WPA
  • WPA2
  • TKIP
  • AES

Features

  • Quality of Service (QoS)
  • LED Indicator
Interfaces/Ports

Host Interface

PCI Express x1
Physical Characteristics

Form Factor

Internal

Height

4.7"

Width

0.7"

Length

3.4"

Weight (Approximate)

2.90 oz
Miscellaneous

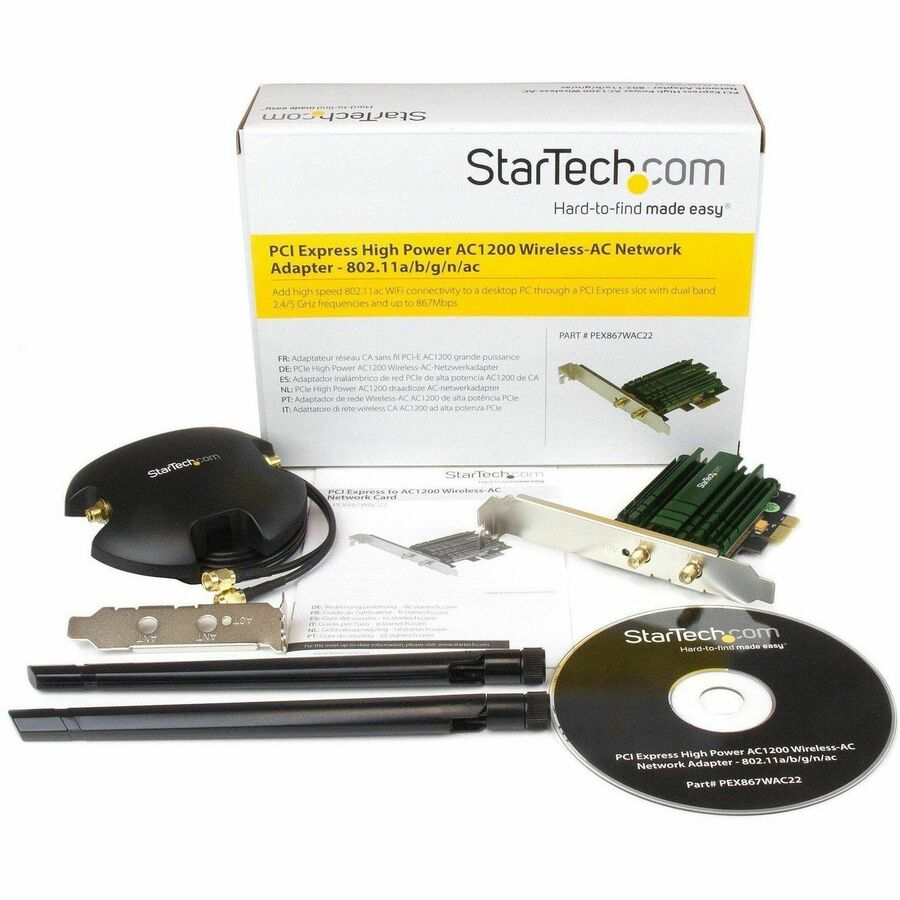

Package Contents

  • PCI Express Wireless AC Card
  • 2 x 5 dBi Dual Band Antennas
  • 1 x Antenna Stand
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual

System Requirements

  • Windows® XP, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019

Device Supported

Desktop Computer

Certifications & Standards

  • CE
  • FCC
IEEE Standards:
  • 802.11ac
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n

Environmentally Friendly

Yes

Environmental Certification

  • RoHS
  • WEEE
  • REACH

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

2 Year
