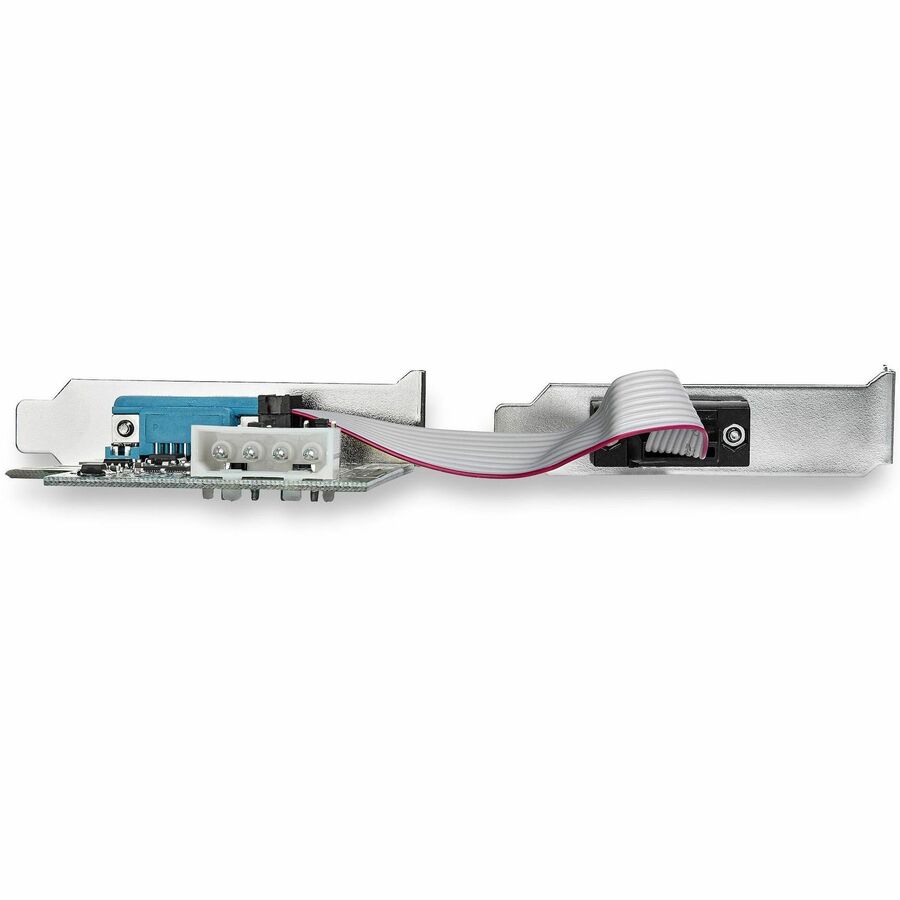

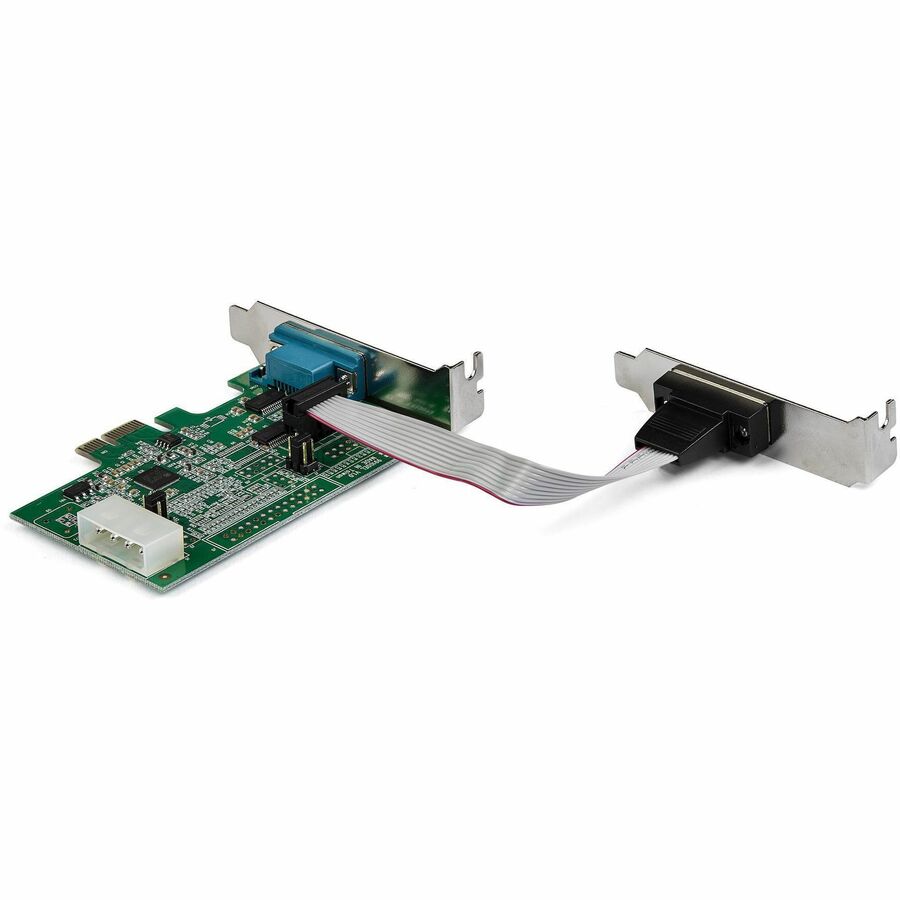

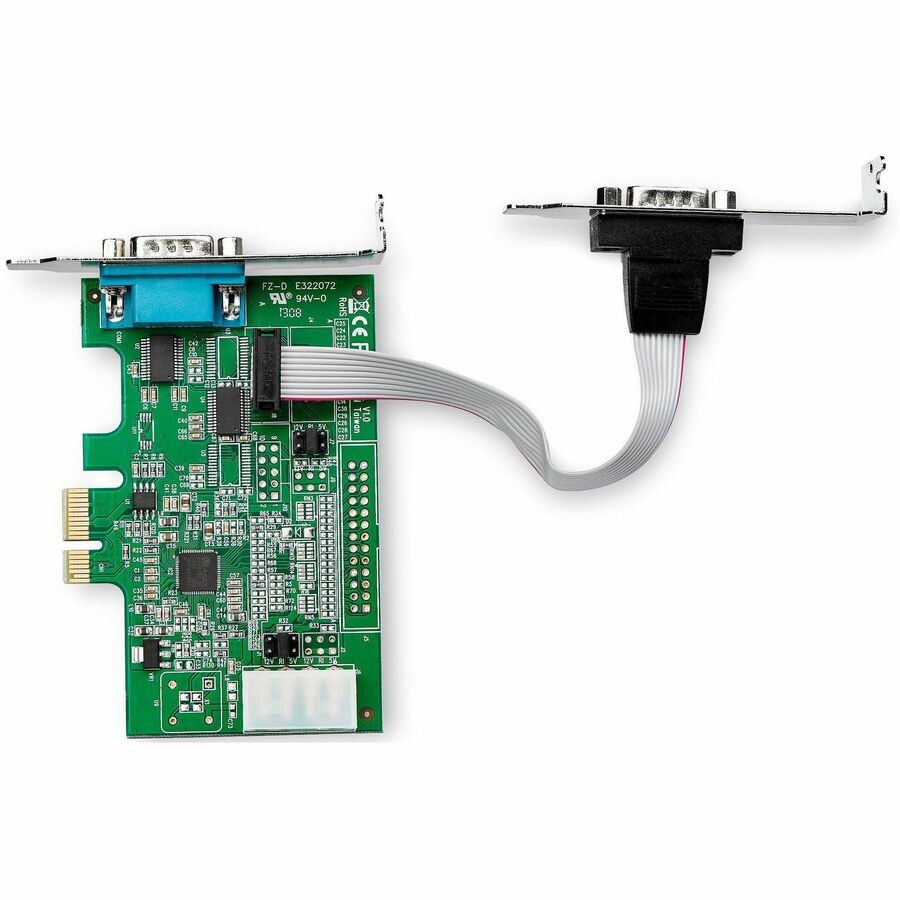

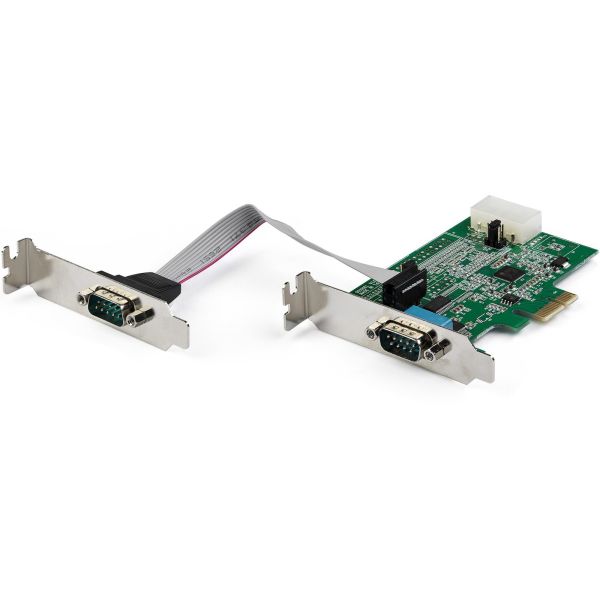

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows and Linux

by
STARTECH
PCN#
6PB309
MFG#
PEX2S953LP
$49.39
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 2
  • port PCI Express RS232 serial controller card w/16950 UART/ASIX AX99100
  • Bi

Show more

Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 1 lbs.
StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows and Linux
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

PEX2S953LP

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

2-Port RS232 Serial Adapter Card with 16950 UART

Marketing Information

This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.

Maximum Compatibility

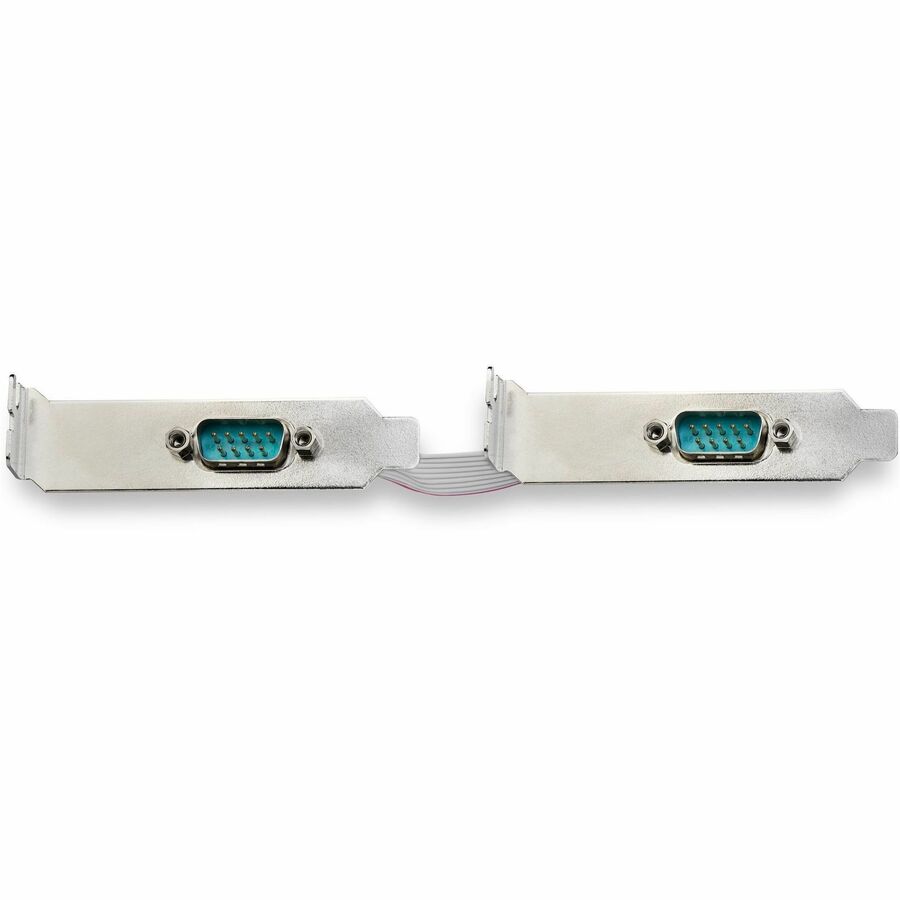

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

  • Compatible with industry standard 16950 UART
  • Supports max baud rate of up-to 921.4Kbps
  • Provides 5/12V power output on Pin 9 when external power is connected
  • 256-byte depth FIFO per transmitter and receiver
  • Supports 9, 8, 7, 6, 5 data bits
  • Asix AX99100 chipset
  • PCI Express 1.1 compliant

PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Packaged Quantity

1

Product Type

Serial Adapter
Technical Information

Host Interface

PCI Express x1

UART Type

16950

Platform Supported

  • PC
  • Linux
Interfaces/Ports

Number of Serial Ports (External)

2
Physical Characteristics

Color Family

Green

Product Color

Green

Form Factor

Plug-in Card

Card Height

Low-profile

Height

3.1"

Width

0.9"

Depth

4.1"

Weight (Approximate)

3.35 oz
Miscellaneous

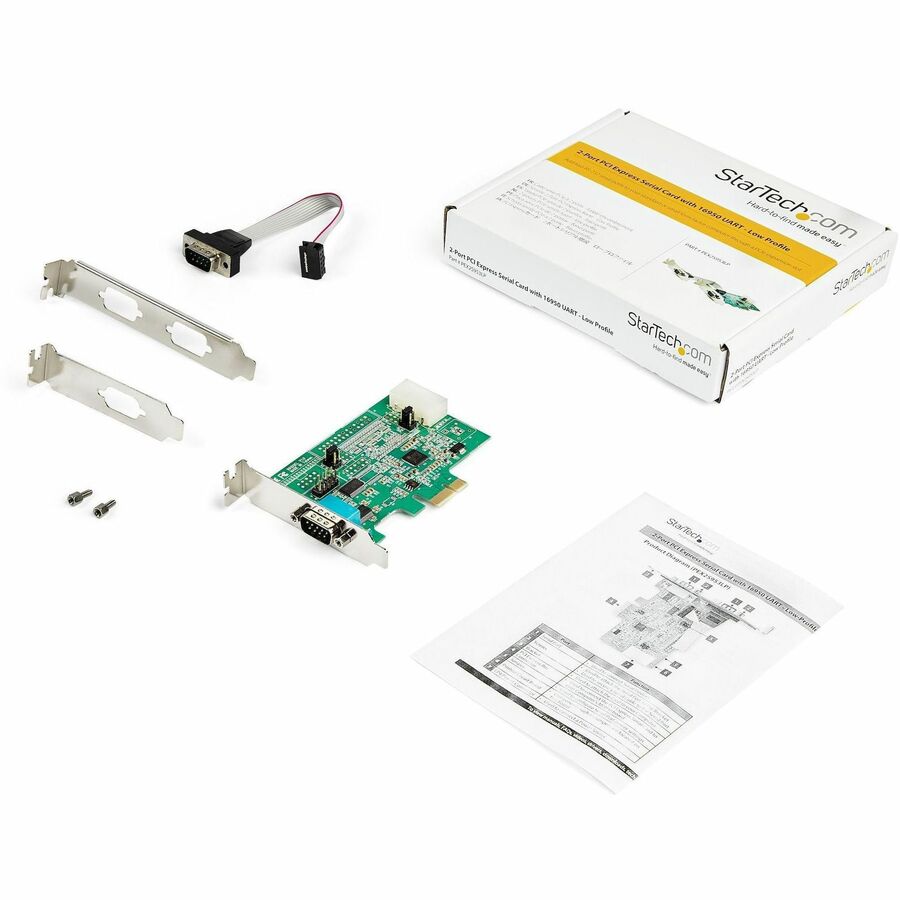

Package Contents

  • 2-Port RS232 Serial Adapter Card with 16950 UART
  • 1 x Full-Profile Bracket
  • 1 x User Manual

Environmentally Friendly

Yes

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

Lifetime
